Unboxing Beelink Ser5 Pro 5800H, An Improved AMD Ryzen 7 Windows 11 Mini PC
Be(a)st Deal Alert! You can now buy Beelink Ser5 Pro AMD Ryzen 7 5800H 32GB RAM 500 GB Nvme SSD Mini PC from Bee-link.com / Amazon.com / Amazon.de / Amazon.it / Amazon.fr / Amazon.es / Amazon.ca / Amazon.co.uk / Aliexpress.com for a very good price. Hurry up, limited time offer!
Meet Beelink Ser5 Pro Mini PC

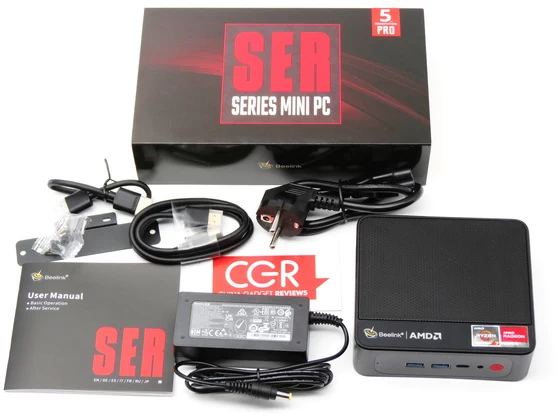

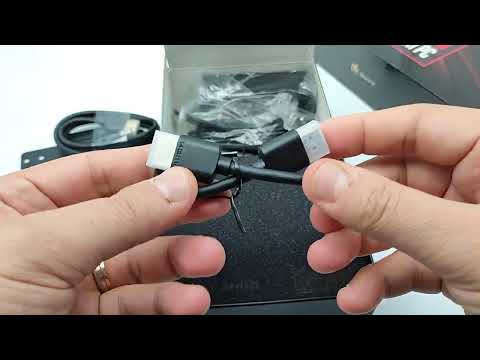

Would you like to get a great compact gaming mini-PC, which, due to its size, will significantly save space on the desktop, and it also has very good features? Beelink took care of this request by launching a new model called Ser5 Pro Mini PC. The Beelink SER5 Pro 5800H mini PC comes in a black cardboard box that features red and white lettering. Inside we find the mini PC itself along with power supply and power cable, as well as a manual, a wall mount and an HDMI cable to connect to the monitor, which turns out to be quite manageable with a length of one meter.

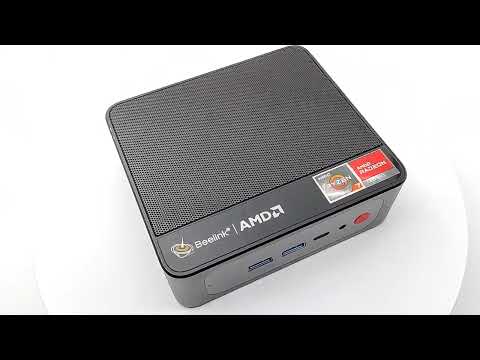

Like other members of the Beelink SER family, the SER5 Pro is a gorgeous piece of tech. Its aluminum chassis is well-vented and offers lots of connectivity options. This mini PC weighs only 1 pound, but it still feels surprising hefty in the hands as all the weight is concentrated in a small area. The perforated top panel, a long with many vents on the other sides, allows efficient airflow to keep the mini PC cool and stable. The Beelink and AMD logos, as well as a few stickers here give the SER5 Pro a very professional look.
On the front panel of the SER5, you will find the following: a power button with status LED, a 3.5mm audio jack with mic support, a Clear CMOS pinhole, a USB 3.2 Gen 1 Type-C port, two USB 3.2 Gen1 Type-A ports. The rear side plays host to two HMDI 2.0 ports, a DisplayPort, a USB 3.2 Gen 1 Type-A port, a USB 2.0 Type-A port, a Gigabit Ethernet jack, and a DC-in port. The two HDMI 2.0 ports and the Type-C port all support 4k@60Hz video output, so you can connect the SER5 Pro to three displays at the same time. The Type-C port also supports Power Delivery 3.0.
The hardware expansion in the SER5 Pro consists of an M.2 Type-2280 slot for PCle3.0*4 NVMe SSDs, a traditional 2.5-inch drive bay, and two laptop-style SO-DIMM slots for the RAM. The wireless card is also accessible under the pre-installed NVMe SSD. To access the rest of the PC, you will have to remove more screws, but there’s really no need for that since nothing else is replaceable or upgradable. The SER5 Pro also supports WiFi 6E and Bluetooth 5.2, making it perfect for streaming games and VR content wirelessly.
The Beelink Ser5 Pro Beast Mini PC lives up to its name. It’s truly a beast of a machine – at least in terms of power. The AMD Ryzen 7 5800H processor is as fast as they come, and the integrated graphics aren pretty good. The SSD drive offers blazing fast read and write speeds, and you get an absurd amount of RAM. In terms of size, it’s small enough to place just about anywhere, and the VESA mount makes positioning a breeze.
AMD Ryzen 7 5800H, the ultimate performance processor
The AMD Ryzen 7 5800H is a high-performance octa-core processor of the Cezanne product family. It was released in Q1 2021; it is designed for use in larger laptops, primarily gaming laptops and DTRs. The Ryzen features eight SMT-enabled Zen 3 cores running at 3.2 GHz (base clock speed) to 4.4 GHz (highest Boost frequency possible) along with the Vega 8 iGPU. The chip has 16 MB of L3 cache. Ryzen 7 5800H is manufactured on the modern 7 nm TSMC process; it has 8 cores and 16 threads. Ryzen 5 5800H supports dual-channel DDR4-3200 and quad-channel LPDDR4-4266 RAM. The Ryzen is a marvel of a processor, with very high scores no matter the benchmark.
Crucial 2 x 16GB Dual-Channel DDR4 3200MHz CT16G4SFRA32A
The Ser5 Pro is equipped with 32GB (16GBx2) Dual-Channel DDR4 3200Mhz RAM. Crucial DDR4 Desktop Memory can empower your computer to transfer more data, resulting in faster load times, file transfers, downloads, refresh rates and less lag time. Due to higher bus efficiency, DDR4 technology is not just faster than the previous generation, it’s better. Even more impressive, Crucial DDR4 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever. Load apps in seconds by increasing the speed of your memory and installing more of it.
Kingston OM8SEP4512N-A0 PCIe 4.0 Nvme SSD
Kingston OM8SEP4512N-A0 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4×4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s1 read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market. The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times. Low profile graphene aluminum heat spreader for exceptional thermal dissipation keeps your drive cool with maximum performance. Design-In SSDs incorporate advanced controllers that automatically perform wear-leveling, garbage collection and other NAND Flash management features. They are a drop-in replacement for hard drives and deliver up to 20x greater performance as well as high reliability.
Simultaneously supports up to triple displays up to 4K 60Hz
The AMD Radeon™ Graphics can meet all your display needs, including support for connecting up to three 60Hz 4K displays, increasing your productivity with multiple displays for a variety of uses such as stock trading, e-commerce sales, design rendering, network playing games and more.
Wi-Fi 6 is the most recent iteration of the Wi-Fi network protocol and is a substantial upgrade over its predecessor. Wi-Fi 6 can be faster due to technologies like traffic prioritization, OFDMA, and beamforming. This new protocol is also more secure and uses new encryption technologies such as SAE. Wi-Fi 6 is a substantial upgrade over previous generations, though the differences may not seem immediately obvious to the average user. These changes might not dramatically change the way we use wireless routers or wireless networking but instead consist of many incremental improvements that stack up to be a substantial upgrade. The first big change is that Wi-Fi 6 allows for potentially faster connection speeds. Overlapping Basic Service Sets (OBSS) is another Wi-Fi 6 feature that can help to improve network congestion. With older versions of Wi-Fi, devices trying to connect to a network used a “listen before talk” process, which meant they had to “listen” for any noise on a channel before transmitting. Another forward-facing development incorporated into Wi-Fi 6, Target Wake Time (TWT), has the ability to potentially increase battery life on some devices. Wi-Fi 6 has a dramatic impact on the way we interact with our wireless devices. Between the faster speeds, better traffic prioritization, and added security, Wi-Fi 6 is a significant step forward in wireless network technology.Whether you’re gaming, working, or just streaming video, upgrading to Wi-Fi 6 is worth considering. The WiFi speed in our test was pretty good, up to 430 Mbps.
Bluetooth 5 provides an increased transfer rate of 50 Mb/s. It also extended the connection range up to 240m. What’s more, the 5.2 version also comes with Low Complexity Communication Codec (LC3). This new codec transfers audio data at lower bitrates without sacrificing audio quality. Other notable improvements include: less power consumption, increased message capacity, backward compatibility with Bluetooth 4 versions, dual audio feature that allows you to connect to two different devices at the same time & addition of Slot Availability Mask (SAM), which further lessens interference with LTE.
HDMI 2.0 was developed by the HDMI Forum to provide new functionality for this widely adopted technology. Released in September 2013, the specification includes support of increased bandwidth up to 18 Gbps, resolutions up to 4K @ 60 Hz, simultaneous delivery of two video streams and up to four audio streams, 32 channels of audio, as well as other key enhancements. It is backward compatible to earlier specification versions, simplifying integration within existing AV systems. HDMI 2.0 is designed to enhance the video and audio experience for the audience. HDMI 2.0 includes support of High-bandwidth Digital Content Protection – HDCP, an encryption protocol for copy-protected video content. HDMI 2.0 includes support of BT.2020 colorimetry with 10-bit color depth or higher. HDMI 2.0 provides additional Consumer Electronics Control – CEC extensions to enable control of AV devices through a single control point.
Beelink Ser5 Pro Mini PC BIOS
The American Megatrends BIOS of Beelink Ser5 Pro Mini PC is very rich in features and options, with many items enabled. There are 6 tabs in settings, with douzins of options each: Main, Advanced, Chipset, Security, Boot, Save & Exit.
I have made a BIOS back-up, you can download it from here. I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.
Archive name: SER5 BIOS Backup file
Archive size: 9.10 MB
Archive content: BIOS back-up file & AfuWin64
Bios file: SER5 BIOS Backup file.rom
BIOS Vendor: American Megatrends
Core version: 05.19
BIOS version: 5800H501
BIOS Chip Name: Winbond 25X/Q Series
Beelink Ser5 Pro Mini PC Drivers
Beelink Ser5 Pro Mini PC came with Windows 11 Pro 21H2 64-bit edition version Build 22000.348. This version was activated and everything was just ok. All the drivers were correctly installed. Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Print queues, Processors, SD host adapters, Security devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers. I extracted with DoubleDriver the drivers for Windows 11 Pro, you can download the archive from here. Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder. Or you can download official drivers for Ser5 Pro from here.
Device name: Ser5
Processor: AMD Ryzen 7 5800H
Graphics: AMD Radeon Graphics
Audio: AMD High Definition Audio, AMD Streaming Audio Device, High Definition Audio Device
Bluetooth: Intel® Wireless Bluetooth®
Installed RAM: 32.0 GB (28.9 GB usable)
Storage: 512GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Installed on: 4/25/2023
OS build: 22000.348
Beelink Ser5 Pro Mini PC Ports
1 x Power On / Off button
1 x CMOS reset button (RTC key)
1 x DC in port
3 x USB 3.2 Gen2 port (10 Gbps)
1 x USB Type-C port (Data & Video)
1 x USB 2.0 port
1 x RJ45 1000M Gigabit LAN port
2 x HDMI 2.0 port
1 x Headphone Audio Jack
1 x LED light
1 x SATA 2.5 HDD (internal – Support expanded up to 2TB 2.5” HDD)
1 x VESA support
Beelink Ser5 Pro Specs
CPU: AMD Ryzen™ 5 5800H (3.2-4.4GHz 8C/16T L2 4MB L3 16MB)
GPU: AMD Radeon™ Graphics 8core 2000 MHz
Memory: 32 GB SO-DIMM Crucial Dual-channel DDR4 3200Mhz (Max expand to 64GB)
Storage: Kingston 512 GB M.2 2280 PCle 4.0 Nvme SSD (Support up to 2TB)
WiFi: WiFi 6 802.11ax
LAN: 1000 Mbps Gigabit ethernet
Video Support: Simultaneously supports up to triple displays, HDMI 2.0 display video output
Audio: 3.5 mm headphone jack supports multichannel audio output
System: Windows 11 Pro 64bit activated. Ubuntu compatible.
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 19V / 3.42A
Adapter: 19V-1.5A 64.98W Certification + Input: 100-240V AC, 50/60Hz
Cooling system: large fan & dual heat conduction for efficient and calmly heat dissipation
Work/Storage Environment: -10°C–45°C，30%–85% Humidity/-20°C–60°C，10%–90% Humidity
Additional function: Wake on LAN / Auto Power on (BIOS settings)
Dimension: 126 x 113 x 42mm
1 x Beelink Ser5 Pro Mini PC
1 x Power Adapter model HKA06519034-6K
1 x Wall mounted bracket
1 x Long HDMI cable (80 cm)
1 x Short HDMI cable (20 cm)
1 x Multi-language User Manual (Basic Operation & After Service – EN / DE / ES / IT / FR / RU / JP)
1 x 2.5-inch SATA cable adapter (internal)
10 x Screw
About Beelink. Beelink was established in 2014 in Shenzhen, China Futian, specializing in home entertainment equipment (DONGLE, BOX, remote control, game consoles, home cloud, one machine, MINI PC) product definition,development, production and sales. Our company own brand as “Beelink”. R & D The company has more than 20 front-line researchers, from the hardware circuitry, wiring, commissioning. into the upper layer driver and software application functionality implemented. BeeLink Brand philosophy: through management innovation, technological innovation and market innovation, and worldwide partners and customers to establish long-term stable cooperative relations, Andrews micro and you win the future.
