Ohuhu FDA Tens Unit Electric Massager Highlights
– SELF-ADHESIVE REUSABLE PADS. The unit is designed so you can get multiple outputs through the 12 FDA Approved adhesive conductive reusable pads (6 small + 6 large) and no gels are needed.

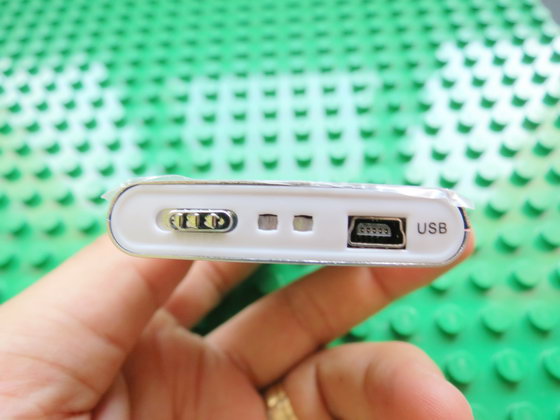

– RECHARGEABLE LITHIUM BATTERY. The battery lasts up to 10 hours of continuous use and can be charged using a USB port or a wall charger with a battery indicator.
– PORTABLE. The unit is pocket-sized for convenience in use so you can get relief anywhere, anytime.

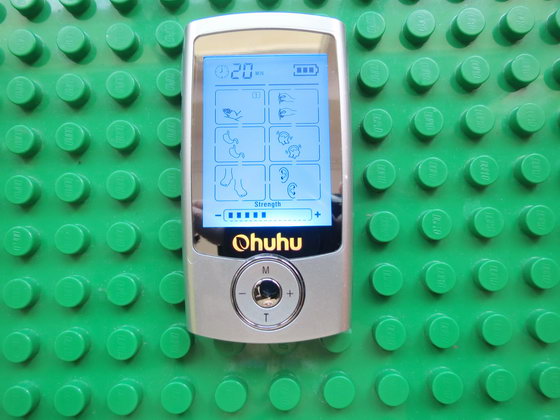

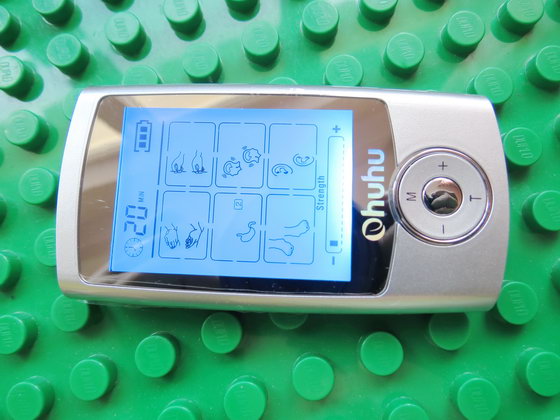

– EASY TO READ LCD DISPLAY. Easily adjustable settings can be seen through the animated display which gives you massage mode, intensity and time control with an auto-off function.
1. Adjustable 10-60 minute timer by using “T” button, default timer: 20 minutes.
2. Adjustable 20 levels of intensity by using “+”&”-” button.
3. 16 modes totally 2-4 massage methods under each mode (convert by using center & M button).

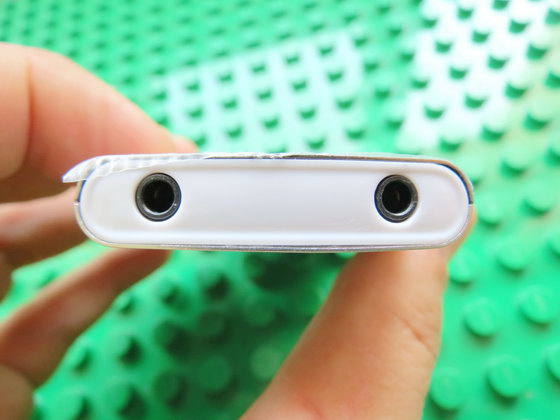

– DUAL OUTPUT. Designed for use on two people simultaneously and multiple different areas of the body.
This product is ideal is those experiencing back pain, arthritis, inflamed discs/joints, shoulder pain, body tension, injuries, chronic pain and more.
Ohuhu FDA Tens Unit Electric Massager Features
– Pain Relief – Targets your pain precisely, Effective and Safe. By placing the pads exactly at the site of the pain, you get fast relief, without having to digest potentially harmful or addictive prescription medicine.
– 16 preprogrammed massage mode, designed for body relaxation. This device is with human body simulation technology, bionic technology, bioelectricity technology and microcomputer intelligent control technology, help for treating back pain, arthritic or inflamed discs/ joints, shoulder tension and muscle Relief. You can choose from 16 massage modes you like for your body relaxation.
– 20 levels of adjustable strength,penetrates muscle group deeper than human hands can. The sensation of massage is very real. You’ll wonder who is administering your massage -but it’s just the device! It penetrates muscle group deeper than human hands can. When you place electrode pads in the pain points, you will feel instant relaxation and pain relief.
There are sixteen modes to choose from, there are:
1. Lateral palm kneading
2. Flat palm kneading
3. Crosscut fist kneading
4. Vertical fist kneading
7. Acupuncture kneading
8. Rubbing reduction
10. Fibrillation massage
11. Lifting-pinching manipulation
12. Vibrating manipulation
13. Thai massage
15. Sensitive Parts Massage Mode 1
16. Sensitive Parts Massage Mode 2
1. Connect the pads to the wire by snapping them on, then remove the protective film.
Note: adding a few drops of water on the pads will increase their longevity.
2. Place pads where the massage sensations are desired. And plug into one of the ports on the device. For additional relief use the second port and repeat procedure to put on another two pads. Make sure both pads on the skin and not overlapping. Make sure your skin is free from any dirt, oil or lotion.
3. Turn the device on by sliding the on/ off switch on the top of the unit. The unit will be now activated.
4. The “M” cycles through the 6 big modes, the silver middle button allows choices (from 2 to 4 varieties) within that mode, totally 16 small modes.Remember the strength will default to the lowest setting by each mode selection.
Note: Center button can also be used as a lock key. Press and hold it for 3 second to lock the screen, 3 second again to unlock the screen. Remember the strength will default to the lowest setting by each mode selection.
Note: Center button can also be used as a lock key. Press and hold it for 3 second to lock the screen, 3 second again to unlock the screen.
5. Once you select a mode, gradually increase the intensity by pressing the + button; decrease it by pressing ‐ button.
6. Recommended application is 10-60 minutes. Increase 10 minutes by each setting. The time remaining is automatically counted down. Then the unit will automatically turn off after time finish.
Not suitable for pregnant women and hypertensive patients.
· Do not apply the massage pads near the heart, sensitive parts of the brain,in the pubic region, over Scarred areas, on the throat or over the mouth.
· Avoid touching the pads when the unit is on.
· Pregnant women must avoid using this massager.
· Do not use this massager if you have pacemaker or other life support equipment such as an artificial lung or respirator.
· should not be used while driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user at undue risk or injury
· Do not use if you have following medical conditions:
Acute disease, trauma or surgical procedure in past six month
High blood pressure
Undiagnosed pain syndromes
Abdominal or inguinal hernia
Painful and /or atrophied muscles
Limited range of motion in skeletal joints
· Keep out of the reach of children.
· the unit is not intended for the application of any medical condition or disease nor is it intended for physiotherapy or muscle rehabilitation. It is contraindicated for use on any muscle that is injured or diseased
Maintenance and care
1. When you have finished using the device, turn it off and take off the pads. Store the unit in a cool, dry place until next use.
2. After usage, please cover the pads with the protective film and put them back in their zip lock bags. Applying a few drops water before and after usage will increase the longevity of the pads.
3. Charge the unit at least every 3 month in event it is not used regularly. You can also use the unit with the wall charger or directly from your computer using the USB cable.
Ohuhu FDA Tens Unit Electric Massager Specifications
– Brand: Ohuhu
– Model: AS1080-16
– Type: FDA Tens Unit Electric Massager
– 2 output with 16 modes
– 20 level intensity
– 20 minutes default timer, can adjustable from 10-60 minutes
– Rechargeable lithium battery
– Battery indicator to know when need to recharge battery
– AC adapter 110-240v, USB Charger 5V
– Product Dimensions: 8.7×6.5×2.3 inches
– Item Weight: 0.22lbs
– Shipping Weight: 1.1 lbs
– Color: Grey / Silver
– Product code: X000KAC7H7
– SKU: Y15-80100-09
– M-Date: 1607814
– Power Adapter: model GDP06AV-0500550-EU Input: 100-240V 50/60Hz 0.25A Output: 5V 0.55A

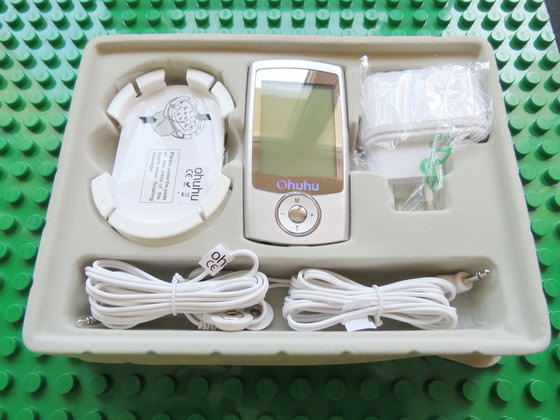

1 x Electric Massager
1 x AC adapter

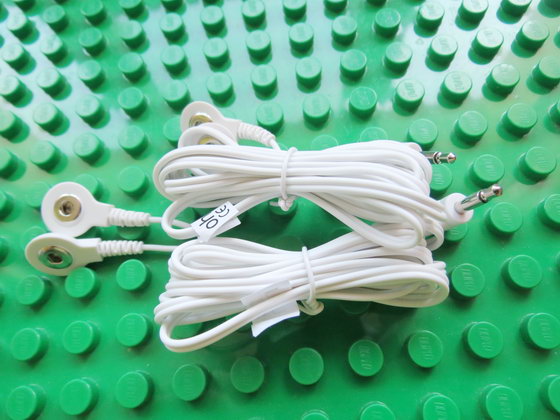

2 x Set of electrode wires
6 x Large pads
6 x Small pads
1 x USB cable
1 x Pads holder

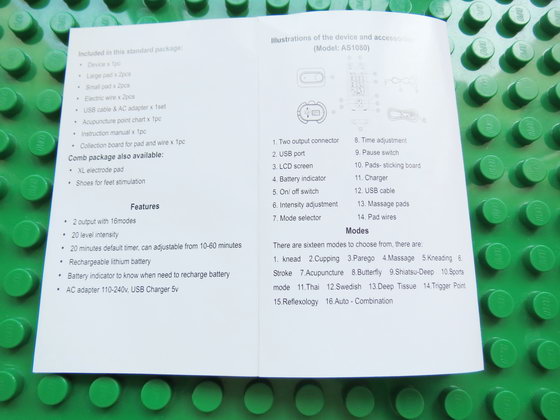

1 x English Operating Manual
1 x Acupuncture placement point chart
1 x Ohuhu Warranty Card
