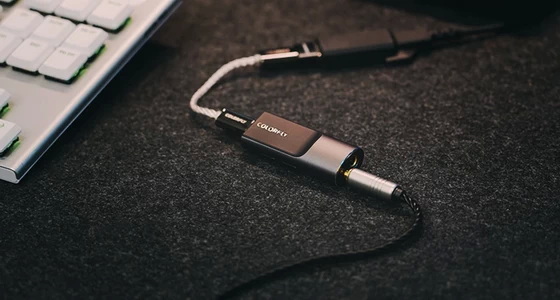

Colorfly CDA M1, High-Performance USB Type-C DAC/AMP

Presenting you an all-new USB DAC/Headphone Amplifier, the Colorfly CDA M1. Colorfly is a premium high-tech brand with a primary focus on designing and marketing top-quality HiFi Audio products. They have several years of experience in R&D, Design, Manufacturing, and Sales of portable HiFi audio gear. The latest CDA M1 offers their self-developed α DAC chip that provides high-resolution audio signal decoding. This little mighty device can decode up to 32-Bit/768kHz PCM and native DSD512 decoding.

The CDA M1 uses the same U8 architecture that Colorfly utilizes in their HiFi music players. It has both single-ended as well as balanced headphone outputs, 3.5mm+4.4mm so users can easily pair their favorite earphones/headphones with their own choice of termination port. Colorfly has designed it with an independent RT6863 op-amp for powerful output.

Features
– Colorfly α DAC.
– Supports 32-Bit/768kHz PCM signal decoding.
– Native DSD512 decoding.
– Colorfly U8 HiFi music player architecture.
– Ultra-low jitter 100M active crystal oscillator.
– RT6863 high-performance independent Op-AMP.
– JitterKill 2 independent clock architecture.
– Dual Headphone output(3.5mm+4.4mm).
– Supports both High & Low impedance modes.
– Swappable connector cables.
– Multi-platform compatibility.
– Robust & Compact.

Technical Specifications
– USB connector: Type-C.
– Bitrate support: PCM 32-bit/768kHz, DSD512 natively, DSD256 DoP.
– SNR: 120dB.
– THD+N: -100dB@600Ω, -98dB@32Ω.
– Output level: 2Vrms(3.5mm), 4Vrms(4.4m).
– Output power: 100mW(3.5mm), 200mW(4.4mm).
– Frequency response range: 20Hz-20kHz.
– DNR: 120dB.

Colorfly “α“, The Ultimate Performer
Colorfly partnered with ESS Sabre Technologies to develop a high-performance audio decoding chip, we all know that as the Colorfly “α”. It has been featured in HiFi music players by Colorfly. It is a high-grade audio decoding chip that supports high-resolution audio signal decoding with an ultra-low -120dB THD+N and high 130dB dynamic range ratings. Explore the realm of high-resolution audio with the compact Colorfly CDA M1.

Multi-Platform Performer
Colorfly CDA M1 is not limited to use with smartphones only. Users can use it with any device of their choice, whether it be an Android smartphone or an iPhone with lightning connector, or Windows/Mac PC, the Colorfly works without any additional software. Just plug the Colorfly with an appropriate cable and you are good to go for high-res music.

HiFi Architecture For Extra-Ordinary Performance
Colorfly CDA M1 is not just any regular USB DAC/AMP in the market. It is designed with years of experience in designing HiFI music players, the M1 is based on the same architecture. It features a second-generation Jitterkill with a 100M active crystal oscillator clock for low distortion and high performance in the output. With the CDA M1, upgrade your normal smartphone into a fully powerful HiFi music player.

Independent Headphone Amplifier With Dual Headphone Output
Colorfly CDA M1 produces a powerful and clean output thanks to its independent RT6863 headphone amplifier chip. The device features both single-ended as well as balanced headphone connection ports. They have a powerful output rating, with a balanced 4.4mm headphone port providing up to 200mW@32Ω and a single-ended 3.5mm port having 100mW of clean output power rating.

Dual Load Modes, Suitable For Low As Well As High Impedance Headphones
Colorfly has equipped the CDA M1 with two buttons that allow the users to choose between the high and low gain modes. This enables the users to use low as well as high power requiring headphones/earphones with the device.

Price & Availability
Colorfly CDA M1 is launched officially for 89.99$.
