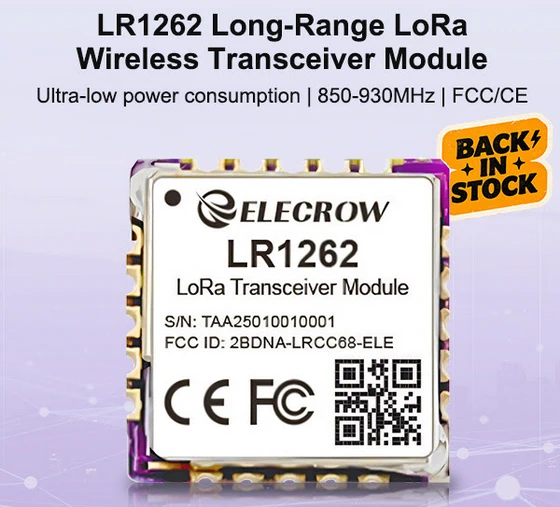

Elecrow LR1262 LoRa Module – Long-Range IoT Connectivity
Built for Long-Range IoT Communication
At the heart of the Elecrow LR1262 is the well-known SX1262 LoRa transceiver chip, a popular choice for wireless projects that require reliable communication over long distances while keeping power consumption extremely low. With a maximum transmit power of +22dBm and receiver sensitivity down to -148dBm, the module is designed for stable long-range communication. In suitable open-field conditions, Elecrow rates the communication distance at around 6–7km, making it suitable for many outdoor IoT and industrial monitoring applications. This makes the LR1262 a strong choice for projects such as smart agriculture, environmental monitoring, remote sensors, utility meters, asset tracking, industrial telemetry, and low-power LoRaWAN nodes.
Ultra-Low Power for Battery-Powered Deployments
One of the most important advantages of LoRa technology is its ability to operate efficiently in low-power scenarios, and the LR1262 is clearly designed with that in mind. The module features a sleep current of only 1.62μA, which makes it highly suitable for devices that need to run for long periods on batteries. For remote sensors or field-deployed IoT nodes, this can significantly reduce maintenance requirements and extend operating life.
Wide Frequency Support and Industrial Reliability
The LR1262 supports 850–930MHz LoRa and LoRaWAN ISM frequency bands, allowing it to be used across multiple regional deployments depending on local regulations and network requirements. Elecrow also equipped the module with a built-in 32MHz TCXO temperature-compensated crystal oscillator, helping improve frequency stability in demanding environments. Combined with an operating temperature range of -40°C to +85°C, the module is ready for industrial, outdoor, and embedded applications where reliability matters.
Tiny 10×10mm Design for Easy Integration
Despite its long-range capabilities, the LR1262 remains extremely compact. Measuring only 10 × 10 × 3.5mm, it can be integrated into space-constrained products, custom PCBs, sensor boards, and compact IoT devices. The 20-pin stamp-hole design makes it convenient for surface mounting and product-level integration, especially for developers building custom hardware around LoRa or LoRaWAN connectivity.
FCC and CE Certified
Another important advantage is certification. The Elecrow LR1262 comes with FCC and CE certifications, which can simplify development and reduce barriers for projects intended for broader use, prototyping, or commercial deployment.
Key Highlights
Product: Elecrow LR1262 Long-Range LoRa Wireless Transceiver Module
Chip: SX1262
Frequency range: 850–930MHz
Transmit power: up to +22dBm
Sensitivity: down to -148dBm
Rated range: up to 6–7km in suitable conditions
Sleep current: 1.62μA
Oscillator: built-in 32MHz TCXO
Operating temperature: -40°C to +85°C
Size: 10 × 10 × 3.5mm
Package: 20-pin stamp-hole design
Certifications: FCC / CE
Price: just $4.20
Final Thoughts
The Elecrow LR1262 LoRa Module is a compact but powerful wireless transceiver designed for developers who need long-range communication, low power consumption, and reliable industrial-grade performance in a tiny package. At just $4.20, it is an excellent option for IoT prototypes, LoRaWAN sensor nodes, smart agriculture systems, remote monitoring devices, and embedded projects that require efficient wireless communication over several kilometers. With its SX1262 foundation, +22dBm transmit power, ultra-low sleep current, wide frequency coverage, TCXO stability, FCC/CE certification, and tiny 10×10mm footprint, the LR1262 is a very attractive module now that it is finally back in stock.
