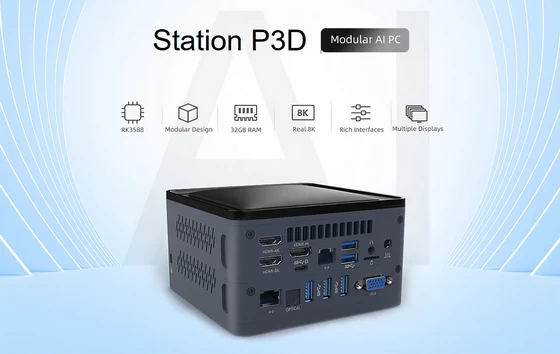

Firefly Station P3D, Modular AI Mini PC with Rockchip RK3588 as CPU
Station P3D features a modular design with a main module and expansion module that can be easily plugged and maintained. The expansion module offers customized interface options, including standard interface, HiFi, multiple HDMI and Ethernet ports. You can buy it from Firefly.store for only $399.
Main Features
– New-gen AIoT SoC RK3588. RK3588 is Rockchip’s new-gen flagship high-end processor with 8nm lithography process and frequency of up to 2.4GHz. It features an integrated ARM Mali-G610 MP4 quad-core GPU and a built-in AI accelerator NPU, providing 6Tops computing power and supporting mainstream deep learning frameworks. The powerful RK3588 delivers extraordinary performance in various AI application scenarios.
– Modular structure and customized interfaces. Station P3D features a modular design with a main module and expansion module that can be easily plugged and maintained. The expansion module offers customized interface options, including standard interface, HiFi, multiple HDMI, Ethernet ports, and serial ports. The flexible combination meets a variety of functional needs.
– 8K video encoding and decoding. Station P3D supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, with simultaneous encoding and decoding capabilities. It can achieve up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding. The powerful video encoding and decoding performance delivers 8K high-definition display and delicate picture quality.
– Super-large 32GB RAM. Up to 32GB of super-large RAM can be configured, exceeding the limit of the previous RAM and delivering a faster response speed. It is able to meet the product requirements for large RAM and response speed.
– 8K video output and 4 displays. Station P3D provides multiple video output, HDMI 2.1 (8K@60fps or 4K@120fps), HDMI 2.0 (4K@60fps), DP1.4 (8K@30fps), VGA (1080P@60fps) and HDMI-IN (4K@60fps) video input, supporting four-screen output with different display or same display.
– Strong network communication capability. Dual Gigabit Ethernet, 2.4GHz/5GHz dual-band WiFi 6 (802.11ax), Bluetooth 5.0, and 5G/4G LTE expansion enable higher-speed network communication.
– Multiple hard drive expansion. With M.2 PCIe3.0 NVMe SSD (2242/2260/2280), you can easily expand your device to TB storage capacity.
– CNC aluminum alloy enclosure. Thanks to the CNC machining, sandblasting, anodizing, and other advanced techniques, the aluminum alloy enclosure is significantly improved in terms of mechanical performance and fatigue resistance. These techniques also enhance surface hardness, wear resistance, and corrosion resistance. The overall design features metal texture, combining both fashion and technology.
– Extensive connectivity. Station P3D provides five video ports (HDMI 2.1, HDMI 2.0, USB-C (DP1.4)), VGA, an HDMI-IN video input, two Gigabit Ethernet ports, five USB3.1 and one 3.5mm audio jack. Abundant expansion interfaces meet the application requirements of various industries.
– Support customized operating systems. It supports Android 12.0, Ubuntu (Desktop and Server), Buildroot, RTLinux, and customized Linux (Debian, Kylin, UOS, etc.). All of them ensure a safe and stable system environment for product research and production. Additionally, we offer in-depth customization services
to meet your specific needs.
– Abundant resources. SDK, tutorials, tech documents and development tools are provided, making development simpler and more convenient.
– A wide range of applications. Station P3D can be widely used in ARM PC, entertainment game console, edge computing, industrial control, VR console, cloud terminal and more.
– New-gen AIoT SoC RK3588. RK3588 is Rockchip’s new-gen flagship high-end processor with 8nm lithography process and frequency of up to 2.4GHz. It features an integrated ARM Mali-G610 MP4 quad-core GPU and a built-in AI accelerator NPU, providing 6Tops computing power and supporting mainstream deep learning frameworks. The powerful RK3588 delivers extraordinary performance in various AI application scenarios.
– Modular structure and customized interfaces. Station P3D features a modular design with a main module and expansion module that can be easily plugged and maintained. The expansion module offers customized interface options, including standard interface, HiFi, multiple HDMI, Ethernet ports, and serial ports. The flexible combination meets a variety of functional needs.
– 8K video encoding and decoding. Station P3D supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, with simultaneous encoding and decoding capabilities. It can achieve up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding. The powerful video encoding and decoding performance delivers 8K high-definition display and delicate picture quality.
– Super-large 32GB RAM. Up to 32GB of super-large RAM can be configured, exceeding the limit of the previous RAM and delivering a faster response speed. It is able to meet the product requirements for large RAM and response speed.
– 8K video output and 4 displays. Station P3D provides multiple video output, HDMI 2.1 (8K@60fps or 4K@120fps), HDMI 2.0 (4K@60fps), DP1.4 (8K@30fps), VGA (1080P@60fps) and HDMI-IN (4K@60fps) video input, supporting four-screen output with different display or same display.
– Strong network communication capability. Dual Gigabit Ethernet, 2.4GHz/5GHz dual-band WiFi 6 (802.11ax), Bluetooth 5.0, and 5G/4G LTE expansion enable higher-speed network communication.
– Multiple hard drive expansion. With M.2 PCIe3.0 NVMe SSD (2242/2260/2280), you can easily expand your device to TB storage capacity.
– CNC aluminum alloy enclosure. Thanks to the CNC machining, sandblasting, anodizing, and other advanced techniques, the aluminum alloy enclosure is significantly improved in terms of mechanical performance and fatigue resistance. These techniques also enhance surface hardness, wear resistance, and corrosion resistance. The overall design features metal texture, combining both fashion and technology.
– Extensive connectivity. Station P3D provides five video ports (HDMI 2.1, HDMI 2.0, USB-C (DP1.4)), VGA, an HDMI-IN video input, two Gigabit Ethernet ports, five USB3.1 and one 3.5mm audio jack. Abundant expansion interfaces meet the application requirements of various industries.
– Support customized operating systems. It supports Android 12.0, Ubuntu (Desktop and Server), Buildroot, RTLinux, and customized Linux (Debian, Kylin, UOS, etc.). All of them ensure a safe and stable system environment for product research and production. Additionally, we offer in-depth customization services
to meet your specific needs.
– Abundant resources. SDK, tutorials, tech documents and development tools are provided, making development simpler and more convenient.
– A wide range of applications. Station P3D can be widely used in ARM PC, entertainment game console, edge computing, industrial control, VR console, cloud terminal and more.
