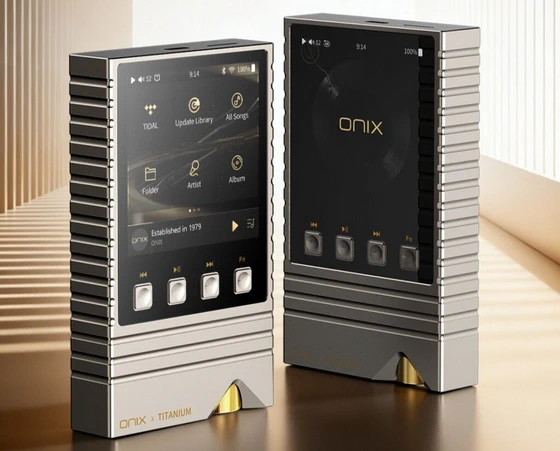

Introducing ONIX Overture XM5 Titanium
Low-Impedance Optimized Amplifier
Following the user feedback on the original XM5, the new Titanium version replaced the previous TPA6120A2 with a pair of more suitable AD8397 amplifiers. This optimized amplifier now runs at much lower output impedance, just 0.5Ω on 3.5mm and 0.8Ω on 4.4mm outputs. All in exchange for just slightly reduced output power. While output impedance value might not be important for many headphones and earphones on the market, certain High-End In-Ear monitors, featuring complex crossovers and non-linear impedance curves, will significantly benefit from this adjustment. Making XM5 Titanium the ideal Audio source in the High-End Portable market.
Limited Edition Release
XM5 Titanium will be available as limited release only, with the standard XM5 continuing its production and both versions being sold alongside each other. Please check the list of our official distributors / dealers and inquire with them directly for the availability of XM5 Titanium.
Two New Cases
Alongside the release of XM5 Titanium, we prepared two new versions of its protective leather case, now coming in Yellow and Green finishes!
Same Rich Features
Rest of the XM5 Titanium takes over the same features from the original XM5, including an audio-optimised system, Wi-Fi / Bluetooth Connectivity, Tidal streaming and others. View the original XM5 announcement or product pages for full details.
Specification
Dimensions: 115 x 70 x 19 mm
Weight: 327g
System Platform: Ingenic X2000
System: In-House Developed
Display: Square 3-inch OLED Touch Screen 720p
Playback: MicroSD Card (up to 2TB), Tidal Online Streaming
Controls: Touch Screen, 4 Hardware Buttons, Volume Wheel
Remote Controls: SyncLink through Eddict Player app (Android & iOS)
Bluetooth Connectivity: Two-Way Bluetooth 5.2
Bluetooth Codec Support: LDAC / aptX HD / aptX / SBC / AAC
Wi-Fi Connectivity: 2.4G/5G, DLNA, AirPlay, Tidal
USB DAC: Dedicated XMOS XU316 Chip
Hi-Res File Support: PCM 768kHz / 32bit, DSD512
Headphone Outputs: 3.5mm Single-Ended, 4.4mm Balanced
Battery: 7000 mAh, standard USB-C charging port
Battery life: Up to 14 hours SE, 12 hours BAL
–
3.5mm Single-Ended Output
Output Power Low gain: 0.73V@32Ω (16mW@32Ω)
Output Power High gain: 2.84@32Ω (250mW@32Ω) / 2.84V@300Ω (26mW@300Ω)
Output Impedance: 0.5Ω
–
4.4mm Balanced Output
Output Power Low gain: 1.44V@32Ω (64mW@32Ω)
Output Power High gain: 5.66V@32Ω (1000mW@32Ω) / 5.66V@300Ω (104mW@300Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0005% @32Ω (A-Weight)
Dynamic Range: 127dB @32Ω
Channel Separation: 110dB
Signal-to-Noise Ratio : 127dB @32Ω
Noise: 114dB @32Ω (Low/Medium Gain)
Output Impedance: 0.8Ω
