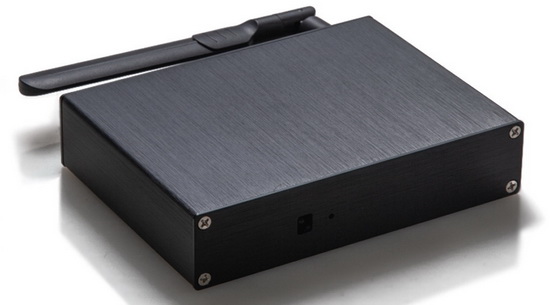

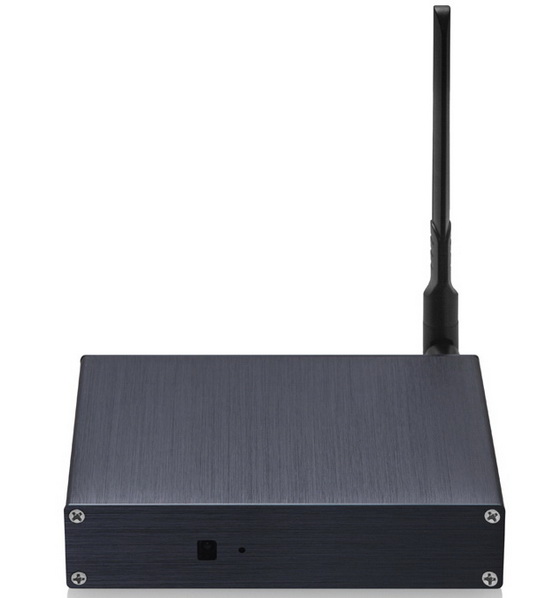

New RKM DS02 Android 7.1 Digital Signage Media Player with 4G or WiFi connection.
RKM DS02 Features
OS: Android 7.1;
Rockchip RK3288 Network signage / advertising player;
Digital signage media player support rotation, RTC, time on/off;
4G or WIFI supported;
Metal Case.
Package content
1 x RKM DS02 Media Player
1 x Power adapter
1 x Remote control
1 x HDMI cable
| Hardware Specifications: | |
| CPU | Rockchip RK3288 quad core, 28nm, ARM Cortex-A17,up to 1.8GHz |
| GPU | Quad-Core ARM Mali-T760 MP· |
| RAM | 2G RAM |
| ROM | 16G ROM |
| Unit connector * with metal case |

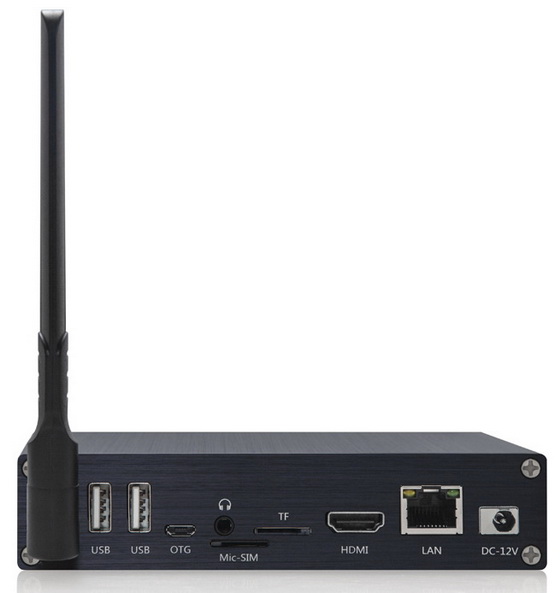

DC IN,12V 1000M Gbit LAN HDMI2.0 USB Host x 2 USB OTG x 1 3.5mm Earphone Jack TF Micro SIM cars slot 4G antenna or WiFi antenna (only1 available,default 4G) |
| Network | Gbit LAN, Dual band WiFi,802.11n/ac; |
| 4G/WIFI | 4G or WIFI supported,only 1 available,default 4G |
| Extension ports | reserved pins for LVDS,backlit,AVR output,MIC,touch panel |
| Resolution | 4K@60Hz |
| OS | Android7.1 |
| Features | |
| Time on/off | Supported |
| Watchdog | Supported |
| Touch screen | Compatible with most of USB touch screen |
| Wake up via network | Support wake up via network.(LAN only) |
| Real Time Clock (RTC) | Supported |
| Rotation | Support manual rotate by 0°, 90°, 180°, 270° |
| Customzie FW | Supported,MOQ 500pcs |
| Packing: | |
| Accessories | Power adapter/remote control/HDMI cable |
| Unit Size | 140*147*30mm (with antenna); 140*114*30mm(without antenna) |
| Working Temperature | 0°~70° |
| Working humidity | 0%~95% |
