RKM DS03 Android 9 Digital Signage Media Player with 4G LTE or WiFi connection
New RKM DS03 Android 9 Digital Signage Media Player with 4G LTE or WiFi connection ready to be launched pretty soon.
RKM DS03 Features
OS: Android 9.0;
Rockchip RK3399 Network signage / advertising player;
Digital signage media player support rotation, RTC, time on/off;
4G LTE or WIFI supported;
Metal Case.
Package content
1 x RKM DS03 Media Player
1 x Power adapter
1 x Remote control
1 x HDMI cable
| CPU | Dual-core Cortex-A72 up to 2.0GHz Quad-core Cortex-A53 up to 1.5GHz |
| GPU | Mali-T860,Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 |
| RAM/ROM | 4G RAM,32G ROM |
| Unit connector * with metal case |

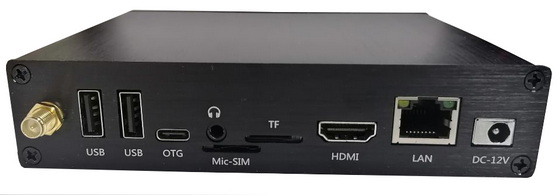

DC IN,12V 1000M Gbit LAN HDMI2.0 USB Host x 2 USB OTG x 1 (type C) 3.5mm Earphone Jack TF Micro SIM cars slot 4G antenna(for option) / WiFi antenna (default WIFI) |
| Network | Gbit LAN, Dual band WiFi,802.11n/ac; |
| 4G/WIFI | Standard version is WIFI; 4G LTE for option. |
| Extension ports | reserved pins for LVDS,backlit,AVR output,MIC,touch panel |
| Resolution | 4K@60Hz |
| OS | Android9.0 |
| Features | |
| Time on/off | Supported |
| Watchdog | Supported |
| Touch screen | Compatible with most of USB touch screen |
| Wake up via network | Support wake up via network.(LAN only) |
| Real Time Clock (RTC) | Supported |
| Rotation | Support manual rotate by 0°, 90°, 180°, 270° |
| Customzie FW | Supported,MOQ 500pcs |
| HDMI CEC | Command from TV to APP; command from APP to TV (premise is that the TV itself supports corresponding CEC function) |
| Packing: | |
| Accessories | Power adapter/remote control/HDMI cable |
| Unit Size | 140*147*30mm (with antenna); 140*114*30mm(without antenna) |
| Working Temperature | 0°~70° |
| Working humidity | 0%~95% |
