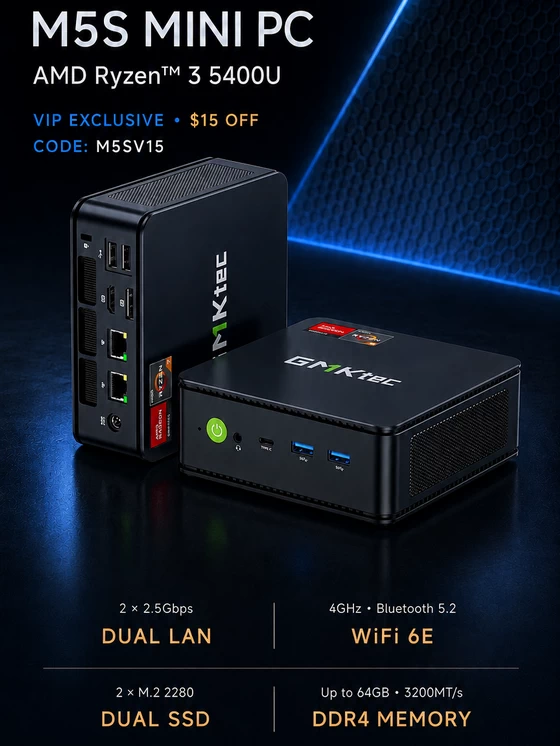

GMKtec M5S Ryzen 3 5400U Mini PC Brings Premium Connectivity
AMD Ryzen 3 Performance for Everyday Productivity
At the center of the GMKtec M5S is the AMD Ryzen 3 5400U, a capable Zen 3 processor manufactured using a 7nm process. It combines four CPU cores and eight processing threads with a base frequency of 2.6GHz and a boost clock of up to 4.0GHz. This configuration is well suited to the workloads most people actually perform on an office computer. Web browsing with numerous open tabs, Microsoft Office applications, email, video conferencing, cloud-based business platforms and media playback should all fit comfortably within the processor’s capabilities. The eight-thread design also gives the M5S considerably more multitasking flexibility than many inexpensive mini PCs based on entry-level dual-core or efficiency-focused processors. Integrated AMD Radeon graphics provide six GPU cores running at up to 1600MHz. The M5S is not intended to replace a dedicated gaming system, but its graphics hardware is capable of handling accelerated video playback, everyday creative tasks, presentation work and lighter games at sensible settings. GMKtec provides several operating profiles, ranging from a quiet 10W mode to a performance setting of up to 25W, with peak power reaching 35W. This allows users to prioritize low noise and reduced consumption or unlock additional performance when heavier workloads require it.
Premium Connectivity Without the Premium Price
The strongest argument for the M5S may be its connectivity rather than its processor. GMKtec has equipped the system with two Realtek-powered 2.5Gbps Ethernet ports, a feature that remains uncommon on many conventional office desktops and budget mini PCs. Dual high-speed LAN ports make the M5S particularly interesting for advanced home networks, small offices, server management, routing, firewall applications and network-attached storage environments. One port can be connected to an external network while the second serves a separate local device or internal network, opening possibilities that a standard single-port desktop cannot offer. Wireless connectivity is equally modern. The AMD RZ616 module provides Wi-Fi 6E with claimed speeds of up to 2.4Gbps, while Bluetooth 5.2 supports wireless keyboards, mice, headphones, speakers and other accessories. Wi-Fi 6E compatibility also allows the system to use the less congested 6GHz band when paired with a compatible router.
Three Displays and Up to 8K Output
A compact computer can be a surprisingly effective foundation for a large productivity workspace, and the M5S supports three simultaneous displays through HDMI, DisplayPort and USB-C. Its HDMI 2.0 connection can deliver up to 4K at 60Hz, while the USB-C port supports DisplayPort video output at up to 4K at 60Hz. DisplayPort 1.4 extends the maximum resolution to 8K at 60Hz with compatible equipment. This combination makes the M5S suitable for multi-monitor office desks, surveillance stations, information displays, trading environments and content-management systems. Users can dedicate separate screens to communication, primary applications and monitoring tools without relying on external video adapters. The multifunction USB-C port is especially useful because it supports 10Gbps data transfers, video output and up to 100W Power Delivery input. GMKtec also includes a conventional 19V DC connection, giving owners additional flexibility when arranging the system.
Memory and Storage Designed to Grow
Unlike compact computers with permanently soldered memory, the M5S includes two SO-DIMM slots supporting dual-channel DDR4-3200 RAM. Memory can be expanded to 64GB using two 32GB modules, providing plenty of headroom for demanding multitasking, large spreadsheets, virtual machines and heavier business applications. Storage is similarly adaptable. Inside the compact chassis are two M.2 2280 SSD positions. The primary slot supports either SATA or PCIe 3.0 x4 drives, while the second accepts a PCIe 3.0 x4 SSD. Each slot supports drives with capacities of up to 8TB, allowing the system to accommodate as much as 16TB of total internal storage. This dual-drive layout allows users to separate Windows and applications from documents, media or backup data. It also makes the barebone version attractive to experienced buyers who already own compatible memory and storage components and want to configure the system themselves. GMKtec offers barebone and ready-to-use configurations, including options with preinstalled RAM, SSD storage and Windows 11 Pro. Buyers choosing the barebone model should remember that it does not include memory, storage or an operating system.
Dual-Fan Cooling in a Compact Chassis
The M5S measures approximately 128.8 × 127 × 47.8mm and weighs around 528 grams, making it small enough for a crowded desk, reception area or space-limited workstation. An included VESA bracket also allows the computer to be mounted behind a compatible monitor for an exceptionally clean installation. GMKtec uses a copper heat pipe and dual-fan cooling system to control temperatures within the compact enclosure. This is important because sustained office workloads, large file transfers and multi-display operation can place continuous pressure on a small computer. The additional cooling capacity should help the Ryzen processor maintain consistent performance while preventing heat from accumulating around the SSD and memory modules. The remaining port selection includes two USB 3.2 Gen 2 connections operating at up to 10Gbps, two USB 2.0 ports and a 3.5mm CTIA audio jack. A reset and Clear CMOS button is also present for easier maintenance and troubleshooting.
A More Powerful Ryzen 7 Alternative
GMKtec sells the M5S alongside the closely related M5 Ultra. Both systems share the same compact dimensions, dual 2.5G LAN, Wi-Fi 6E, expandable memory, dual SSD architecture and triple-display capabilities, but their processors target different users. The affordable M5S uses the four-core, eight-thread Ryzen 3 5400U, whereas the M5 Ultra upgrades to the Ryzen 7 7730U with eight cores, 16 threads and a maximum boost frequency of 4.5GHz. The Ryzen 7 version also features eight Radeon graphics cores running at up to 2000MHz. For routine office productivity, web applications and media playback, the Ryzen 3 model should provide the better value. The Ryzen 7 configuration is the more appropriate choice for demanding multitasking, software development, heavier creative work, virtualization and users who regularly run processor-intensive applications.
Launch Offer and Availability
The GMKtec M5S is available through the company’s official online store in barebone and preconfigured versions. At the time of publication, GMKtec is advertising a $15 launch discount using the promotional code M5SV15. Prices and available configurations may vary according to the selected memory, storage, power plug and delivery region. The company’s product page currently lists the broader M5 family as being on sale, with the displayed price dependent on the chosen M5S or M5 Ultra configuration. Buyers should therefore select the Ryzen 3 5400U processor option before confirming the final price and applying the promotional code.
Final Thoughts
The GMKtec M5S succeeds by concentrating its budget around the features that matter most for a modern productivity computer. The Ryzen 3 5400U provides enough processing power for everyday office work, but the real appeal comes from everything surrounding it: dual 2.5G Ethernet, Wi-Fi 6E, Bluetooth 5.2, three-display support, 8K output, upgradeable dual-channel memory and two full-size M.2 SSD slots. Its processor will not transform the M5S into a gaming powerhouse or high-end creative workstation, but that is not its purpose. This is a compact, expandable and exceptionally well-connected machine built for practical workloads. For an office desk, home workstation, digital-signage system, network appliance or secondary PC, the M5S offers a convincing balance between affordability and long-term flexibility. The GMKtec M5S and M5 Ultra are available from the official GMKtec online store. Use the code M5SV15 to claim the advertised $15 launch discount on the M5S, subject to availability and the promotion’s applicable conditions.
