How to Repair a Printed Circuit Board? 9 Methods
Printed Circuit Boards (PCBs) are essential components in modern electronic devices, but they can encounter issues over time. Knowing how to repair a PCB can save you money on replacements and extend the life of your electronic gadgets. In this article, we will explore ten methods for repairing a printed circuit board and restoring it to full functionality. Understanding the basics of printed circuit boards and their components by pcbasic is crucial before attempting any repairs.
What is a Printed Circuit Board?
A Printed Circuit Board (PCB) is a crucial component in modern electronic devices. It serves as a platform for connecting and supporting various electronic components, such as resistors, capacitors, and integrated circuits, through conductive pathways etched or printed on a non-conductive board. The intricate network of copper trades on the PCB facilitates the flow of electrical signals between components, creating functional electronic circuits. PCBs come in various sizes and designs, tailored to the specific requirements of the device they are intended for. With their ability to provide reliable connections and streamline complex electronic designs, PCBs have become the backbone of virtually all electronic devices we use daily, from smartphones and computers to household appliances and automobiles.
Bonus Tip: While you’re fixing up your electronics, why not take a break and treat yourself? Check out XD Deals for the best game deals and score some amazing discounts!
If you’ve set up a streaming device like this to get more out of your TV, it’s also worth thinking about how you actually hear what’s playing — especially if you’re often turning the volume up just to catch dialogue clearly. SIMOLIO TV headphones let you listen at your own comfortable volume without disturbing anyone else in the room, pairing easily with most TV setups whether you’re streaming, gaming, or just catching up on shows.
1. Identify the Issue
Thoroughly inspect the PCB to identify the specific problem, such as Printed Circuit Board Repair, broken traces, damaged components, or faulty solder joints.
2. Fixing Broken Traces
Use a mustimeter to find and repair broken traces by soldering small wires to bridge the gaps.
3. Repairing Solder Joints
Inspect solder joints for cracks or cold soldering and reflow the solder to establish secure connections.

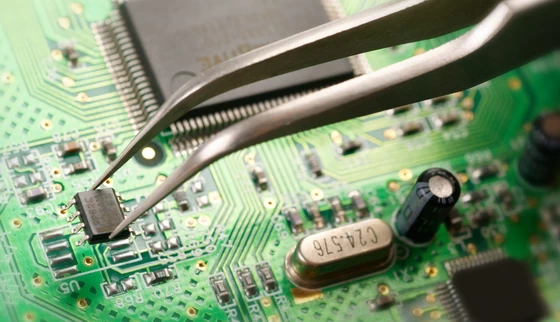

4. Replacing Damaged Components
Identify and replace any faulty or burnt-out components with new ones of the same specifications.
5. Dealing with Short Circuits
Locate and rectify short circuits by isolating the affected areas and ensuring proper insulation.
6. Removing Corrosion
Clean any corrosion on the PCB using isopropyl alcohol or a specialized PCB cleaner.
7. Cleaning the PCB
Remove dust, debris, and flux residues from the PCB surface using a soft brush and isopropyl alcohol.
8. Using Conductive Ink
Repair minor traces or connections using conductive ink or conductive paint.
9. Baking the PCB
In certain cases, baking the PCB in an oven at a specific temperature can repair certain issues caused by moisture.
FAQs
Can I repair a PCB without any prior experience in electronics?
While some basic PCB repairs are possible for beginners, complex issues may require experience or professional assistance.
What tools do I need for PCB repair?
Essential tools include a soldering iron, desoldering pump, multimeter, solder wire, isopropyl alcohol, and small wires for bridging traces.
Are there any safety precautions to consider when repairing a PCB?
Yes, ensure that the power is disconnected, capacitors are discharged, and you are using appropriate safety gear like safety goggles and an ESD wrist strap.
Is it cost-effective to repair a PCB instead of replacing it?
Repairing a PCB can be cost-effective, especially for expensive electronic devices, as it eliminates the need to purchase a new replacement.
