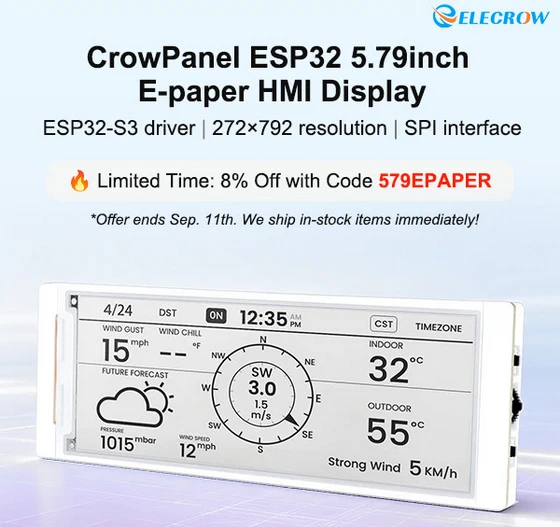

Elecrow CrowPanel 5.79″ E-Ink Display with Limited Time Discount
A 5.79-Inch Display Designed to Behave More Like Paper
The centerpiece of the CrowPanel is its unusual 5.79-inch, 272 × 792 electronic-paper display, which uses active-matrix electrophoretic technology rather than the continuously illuminated pixels associated with conventional LCD screens. Its monochrome black-and-white presentation may look simple at first glance, but that simplicity is precisely what makes E-Paper so effective for applications centered around persistent information, text, measurements, status indicators, schedules, prices or other data that does not need to change dozens of times every second.
Because the panel operates through reflection rather than illumination, there is no conventional backlight behind the screen. Ambient light is reflected from the display surface in much the same way that light reflects from printed paper, resulting in excellent visibility under bright indoor lighting and, importantly, outdoors in direct sunlight, where many conventional screens become difficult to read.
Elecrow has complemented the reflective panel with a hard-coated anti-glare surface, helping maintain a clear, paper-like appearance while reducing distracting reflections, while the ultra-wide viewing characteristics mean information can remain easily readable even when the CrowPanel is viewed significantly off-axis.
Ultra-Low Power Consumption Is the Real E-Paper Advantage
While sunlight readability is an immediately noticeable benefit, power efficiency is arguably the more important characteristic of this CrowPanel. Electronic paper does not need to continuously refresh itself simply to preserve an image, so the display primarily consumes energy when its contents are being changed, while a static page requires virtually no display power.
This makes the CrowPanel particularly interesting for battery-operated and remotely installed projects, where continuously powering an LCD and its backlight could dramatically reduce operating time. A sensor dashboard, electronic room sign or smart price label, for example, might update only periodically, leaving the display unchanged for the majority of the day and therefore taking full advantage of E-Paper’s unusual energy characteristics.
Another valuable consequence of the technology is image retention without power. Once information has been written to the panel, it remains visible even following a complete loss of power, meaning a displayed message, status page, label or other important information does not simply disappear when the system is switched off.
ESP32-S3 Brings Serious Development Potential
Rather than delivering only a standalone E-Paper panel that requires an additional development board, Elecrow has built the CrowPanel around the popular ESP32-S3, giving developers an integrated microcontroller platform capable of handling considerably more than basic display updates.
The ESP32-S3 provides a 240MHz dual-core processor, complemented here by 8MB of PSRAM and 8MB of Flash, providing useful resources for graphical interfaces, wireless applications, sensor processing, connected dashboards and more sophisticated embedded projects. This combination turns the product into a genuine HMI development platform rather than merely an electronic-paper screen.
The integration is particularly useful when a project needs to collect or receive information, process it locally and then present the results on a persistent low-power display, potentially allowing a single compact CrowPanel to become the central controller and visual interface for the entire device.
SPI, UART, GPIO and TF Card Connectivity
Elecrow has also made sure that developers are not boxed into a closed hardware configuration. The CrowPanel provides SPI connectivity, a UART0 interface and a 2 × 10-pin GPIO interface, opening the door to external sensors, controllers, communications modules and custom peripherals, while a TF card slot provides another useful option for storing resources or application data.
Physical interaction has not been overlooked either, with the design incorporating Back and Home buttons together with a rotary switch, giving developers convenient controls that can be integrated into menu-driven interfaces and standalone devices without immediately having to design additional input hardware.
The board and display are housed within a clean white acrylic enclosure, which gives the CrowPanel a more finished appearance than a bare development board while simultaneously providing protection for the E-Paper panel and electronics. This makes it particularly suitable for prototypes that need to be demonstrated, deployed or incorporated into a larger project without requiring an enclosure to be fabricated from scratch.
Arduino IDE Support Makes Development More Accessible
Despite its considerable hardware capabilities, the CrowPanel remains approachable for the enormous community already familiar with the ESP32 ecosystem, thanks to Arduino IDE compatibility. Developers can therefore work within a familiar environment, integrate existing ESP32 libraries and connect external hardware through the available GPIO, UART and SPI resources rather than having to learn an entirely proprietary development platform.
That combination of an integrated ESP32-S3, substantial memory, a ready-made E-Paper display and accessible interfaces significantly reduces the amount of separate hardware required to move from an idea to a functional prototype.
From Smart Home Dashboards to Electronic Shelf Labels
The unusual elongated 272 × 792 format also gives the CrowPanel considerable flexibility in applications where a traditional square or widescreen LCD would be unnecessary. It could serve as a weather and environmental dashboard, smart-home status display, room information panel, electronic shelf label, dynamic price tag, identification badge, smart tag, portable instrumentation interface or compact data terminal, with the display retaining the latest information for long periods without continuously consuming energy.
E-readers and wearable concepts are other possibilities, while developers working with IoT devices can exploit the ESP32-S3 platform to create connected information displays capable of periodically retrieving new data, updating the E-Paper panel and then spending much of their time in a low-power state.
The technology is particularly compelling whenever information changes relatively infrequently but must remain visible continuously, because that is precisely where the traditional disadvantages of an always-powered display become the strengths of E-Paper.
Limited-Time 8% Discount Makes It Even More Interesting
With its 5.79-inch 272 × 792 black-and-white E-Paper screen, sunlight-readable reflective technology, anti-glare coating, power-loss image retention, ultra-low static power requirements, 240MHz dual-core ESP32-S3, 8MB PSRAM, 8MB Flash, SPI, UART, GPIO and TF card support, the CrowPanel brings together most of the components required for a sophisticated low-power information display in one integrated platform.
For makers, embedded developers and IoT enthusiasts who have been considering an E-Ink project, the current promotion provides an additional incentive to experiment with the platform. Elecrow is offering 8% off with the coupon code 579EPAPER until September 11, 2026, making this an opportune time to pick up the CrowPanel and explore what becomes possible when a capable ESP32-S3 meets a display that can stay visible without staying powered.
