Unboxing Ugoos X4 Pro Android 11 TV Box
Best Deal Alert! You can buy Ugoos X4 Pro Android 11 TV Box from Ugoos.com / Aliexpress.com for a very good price.
Meet Ugoos X4 Pro Android 11 TV Box
Ugoos X4 Pro is a middle-price device with a well-known Amlogic S905x4 SoC, it may be a very good companion for any digital task including media playback with AV1 video codec support. X4 is a new generation of two previous best-selling series devices: X2 and X3. The outside design takes just minor changes, for instance: all X4 comes with more common and suitable USB Type – C power adapters. X4 gets WIFI MIMO Technology support, like more expensive models for more stable connection. TV Box now has in-built IR reciever in addition to wired IR reciever extender.
For connectivity, the Ugoos X4 Pro box contains 2.4GHz / 5GHz WIFI IEEE 802.11 b / g / n / ac dual-band with powerful external antenna, for faster data transmission and better streaming experience. It also comes with a feature that is missing in a lot of other TV dongles or TV ,which is a 1000Mb LAN, that is more reliable than WI-FI and provides even better data transmission. The Ugoos X4 Pro TV box equipped with the Android 11, offers you a more efficient, safer operation, better compatibility of the latest applications, so better user experience, and the OS is pre-rooted to access more permission and install applications that require root activation with the possibility to switch enable/disable.
The device ships with an English User Manual, a power adapter, a short HDMI cable, an IR remote controller, and a extension cable with IR receiver. But what could be the most interesting with this device are the extra Ugoos settings in the firmware.
– Root Service – Enable/disable root access which can be useful as some apps require a system without root, while others won’t work with root. The user can easily turn off or turn on the root of the device.
– SAMBA server. I understand the clients make your SAMBA/NFS server accessible from any apps.
– Hardware Monitor – Shows network usage, CPU info, RAM info in notification bar. You can use the settings to display the cpu load / ram memory and the temperature on your desktop.
– Ugoos Remote – Remote control app for Android / iOS (download it from here)
– Gamepad settings – Gamepad buttons mapping app. Profiles are shareable among users.
– Debug settings – WiFi/USB Adb access, log files management, etc.
– User scripts – Create init.d directory is enabled, and allows advanced user to run scripts at boot time without rooting the device.
– Playback Settings.
– System Bars.
– Input device Settings.
– Daydream. Daydream settings helps to choose action for stanby device.
Despite strong hardware, this is really a TV box that almost fits in your hand. You can easily hide it even in a limited space under the TV. This inexpensive TV box contains everything that an enthusiast of movies and TV series can expect, turning your television into a true home entertainment center. Regardless of whether you’re planning to watch videos, play games or listen to music, this TV Box will serve you well. Another instant hit from Ugoos!

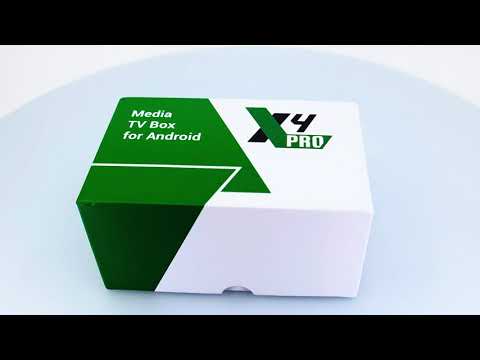

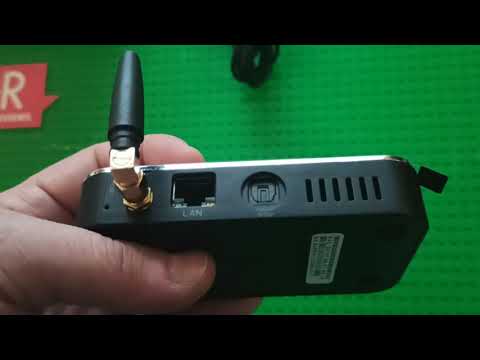

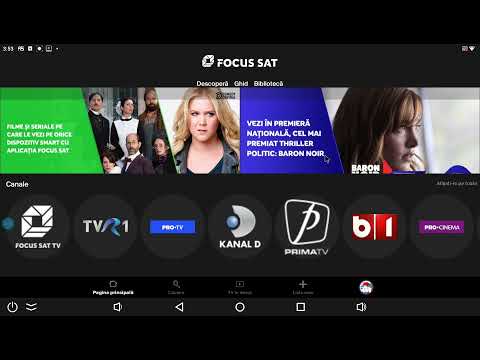

For more info about Wifi speed, Netflix, Ugos remote Android application, OTA firmware updates, etc., we invite you to watch below videos.
Android 11 firmware
The device came with Android 11 firmware version 1.0.0 and once connected to WiFi network it upgraded successivelly to v1.0.2, v1.0.3, v1.0.4 and to v1.0.5, the latest one. Over the air updates, very easy any without any problems. So many updates in such a short period of time show the manufacturer’s concern for its customers.
Changelog for v.1.0.2 2021-10-11
Bug Fixes
Changelog for v.1.0.3 2021-12-07
1. Added new voice input application
2. Fixed problem with install Google application
3. Fixed problem with broken cursor after hiding notifications
4. Removed 120 Hz display mode
5. Fixed button manager issue for some remote controllers
6. Fixed problem with authorization in Google applications
7. Audio pass-through improvements
8. Improvements of video codecs
9. Many other changes for system stability
Changelog for v.1.0.4 2021-12-07
1. Added samba server, NFS client, CIFS client (Storage)
2. Added configuration for G20 BTS air mouse
3. Improves of automatic frame rate function
4. Improved Ethernet stability
5. Fixes of HDMI hotplug
6. Fixes of power modes work
7. Fixed pairing bluetooth devices in additional settings
8. Fixed kernel crash for videoplayback with bad frames
9. Fixed kernel crash for HDR10+ videos
10. Fixed work of USearch with some applications
11. Fixed snapshots in recent applications window
Changelog for v.1.0.5 2021-12-11
1. Improvements of IPTV playback
2. Improved automatic frame rate function for H.264 codec
3. Improved work of volume control via HDMI CEC
Ugoos X4 Pro Android 11 TV Box Highlights
– Android 11 operation system
– Amlogic S905x4 CPU, Quad core, 4 x ARM Cortex A55
– ARM Mali-G31 MP2 as GPU
– AV1 Codec support
– 4GB DDR4 RAM + 32GB EMMC ROM
– Micro SD card
– Support Bluetooth v4.2 & BLE
– Support 4K ultra HD image display
– 802.11 a/b/g/n/ac 2×2 MIMO
– 1000M Ethernet Integrated IEEE 802.3 10/100/1000MB Ethernet
– USB 3.0 & Type-C ports.
Ugoos X4 Pro Android 11 TV Box Features
– 4K resolution. Stable 4K 60fps resolution for smooth playback experience.
– Great Compact Design. It continues the story of compactness and functionality started in previous models.
– WiFi 6 & 2×2 MIMO. WiFi with MIMO standard provides simultaneous and relatively faster connection for better live performances and faster data transfer.
– Bluetooth. Ugoos X4 Pro supports Bluetooth 4.2 with LE technology.
– Android 11 as OS. Ugoos X4 Pro runs stable Android 11 with latest security patches.
– Gamepad Settings. Brand Ugoos feature for gamers. Reach greater results in games now, when you can customize your game controller at your own taste.
– OTA (Over-the-air) Updates. When your device get an update, you will be the first who knows about this. Just stay connected and the system will install it automatically.
– Samba server. Turns every Brand Ugoos TV Box in a simple file server. Simple installing and basic security let you share files in your localș network very easy.
– HDR to SDR or SDR to HDR. Depends on the content quality and your TV’s screen abilities, Ugoos helps you to choose the best playback experience.
– HDR Playback. Wide range of settings makes playback customizable for HDR and SDR. System gives the ability to choose HDR to SDR or the other way around.
– USB 3.0. Small yet fast with USB 3.0 interface on board.
Ugoos X4 Pro Android 11 TV Box Specs
Brand: Ugoos
Model: X4 Pro
Type: Android TV Box
CPU: Amlogic S905X4 Quad core ARM Cortex-A55
GPU: ARM Mali-G31MP2 Open GL ES 3.2 Vulkan 1.0
Operating system: Android 11
RAM: 4GB DDR4
Storage capacity: 32GB EMMC
WIFI: 802.11a/b/g/n/ac 2T2R MiMO technology
Bluetooth: v4.2 with LE technology
Network: 1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet
HDMI: HDMI 2.1 Type-A 4Kx2K@60fps max resolution
Power Input: DC 5V/2.5A
Support: HDR
Remote Controller Battery: 2 x AAA Battery (not included)
Software Extension: Support Google Play & APK install
DLNA, Miracast Protocol: Support DLNA, Miracast Protocol
IM Software: Support Skype/QQ/MSN/GTALK (Depends on APK ）
Office Software: WORD/EXCEL/PDF (Depends on APK install)
Audio Container: MP3, AAC, WMA, RM, FLAC, OGG
Audio Out: Built-in serial digital audio SPDIF/IEC958 output and PCM input/output / Built-in stereo audio DAC / Stereo digital microphone PDM input
Operation Temperature: 0~60℃
Storage Temperature: -10~60℃
Humidity Environment: 5%-90%(No condensation）
Certificate: CE, FCC
Dimensions: 110*62*22mm
Gift Box Size: 155*100*85mm
Net Weight: 90g
Color: Black
Firmware version: updated at first boot from version 1.0.0 to version 1.0.5
Build number: X4-userdebug 11 RQ3A.210805.001.A1 eng.ugoos.20211208.1748 test-keys
Language: English / Chinese / Multi-Language support
Video CODEC
AV1 Video Codec Support
VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVCMP-10@L5.1 up to 4K*2K@60fps
H.264 AVC HP@L5.1 up to4K*2K@60fps
H264 MVC up to1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 5P/MP/AP up to 1080P@60fps
AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
Realvideo 8/9/10 up to 1080P
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixe resolution decoding(ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Support *.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm
and *.jpg file formats
Ugoos X4 Pro Android 11 TV Box Interface
1 x Full size USB 3.0
1 x Full size USB 2.0 Host
1 x USB Type-C for charging
1 x TF / Micro SD card slot
1 x Charging DC 5V port
1 x HDMI 2.1 Type-A Support maximum 4Kx2K @ 60fps 10Bit
1 x SPDIF Optical olutput
1 x AV jack output
1 x Ethernet LAN RJ45 port 1Gbit
1 x IR port
1 x Reset button
1 x Power on / off button
2 x WiFi antenna
1 x Led Work Light
Package content
1 x Ugoos X4 Pro Android 11 TV Box
2 x External Antenna
1 x HDMI Cable
1 x Power Adapter model R122-0502500ED 5V 2.5A
1 x English User Manual
1 x IR Remote control
1 x IR receiver cable
About Ugoos Ugoos Industrial is a China Mainland based company with international developers team. Main directions are: ARM Hardware & Software Development, TV Boxes and Dongles, Digital Signage and Advertisement Solutions. Ugoos Industrial Co., Ltd. is the first on the market created Dual core and Quad core TV dongle. Our main directions are designing, R&D, manufacturing, and marketing on the Android HD Media Players market. In early 2011, Ugoos developed the first Dual core Android TV dongle in the world. As the leading company of Smart TV dongles and TV boxes in China, Ugoos has a European Development Team in China. Our team always insists on the principles of high quality products, quality service, and win-win relationships.
