Unboxing AZW S95 Amlogic S905X2 4GB RAM 32GB ROM Android TV Box

Posted in Dec 14, 2018 in Unboxing, no comment

Unboxing AZW S95 Amlogic S905X2 4GB RAM 32GB ROM Android 8.1.0 TV Box.

Beelink S95

Meet AZW S95 Amlogic S905X2 Android 8.1 TV Box

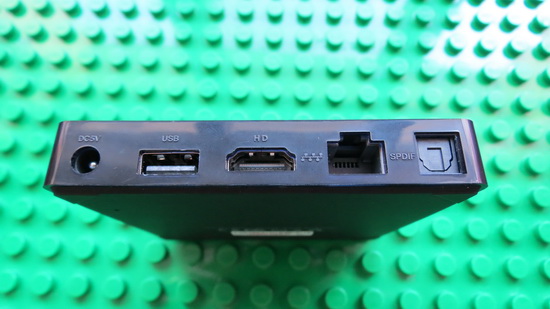

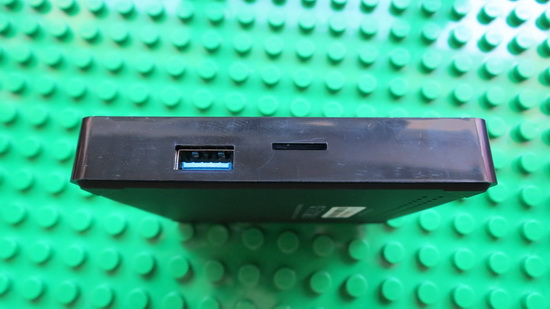

AZW S95 at first glance makes a very good impression. It is a small, very well and solidly made TV Box, with great attention to details. The sleek black box with the silver lettering definitely screams classy premium. TV Box looks really nicely. The housing is made of high quality plastic. At the center of the top cover also we find a refreshed logo and ‘4K Ultra HD’ mention. The front panel has IR receiver and power LED. On left side there is a full size USB 3.0 port and micro SD card slot. On the rear panel are: 5V/2A DC jack, an USB 2.0 port, HDMI port, RJ45 Gigabit Ethernet & Optical audio port.

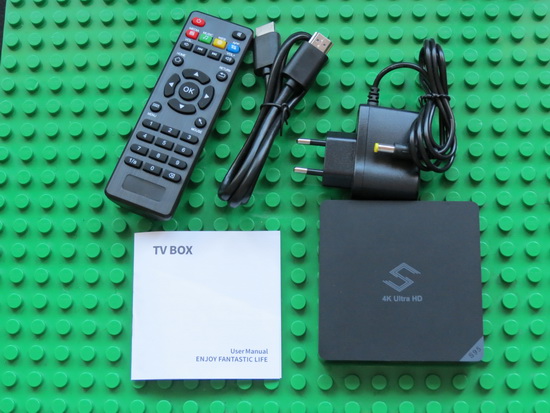

The device runs Android 8.1 out of the box and ships with an IR remote control, an HDMI cable, a power adapter and a user’s manual in English. The Remote control works via Infra-Red and is a nice size that fits your very hand comfortable. Ther device supports a wide range of video and audio codecs, allowing you to enjoy most of your multimedia files. Gigabit Ethernet, USB 3.0 port, Dual-band Wi-Fi and Bluetooth 4.0 ensures you never get short of connectivity options. Android Oreo operating system allows you to install apps and enjoy unlimited stream of movies, sports events, music, TV shows and much more, both paid and free.

The new Amlogic S905X2 is undoubtedly the perfect successor to the popular S905X, a SoC that maintains the original four ARM Cortex-A53 processors but upgrades its GPU to the Mali-G31 MP2 model with support for Dolby Vision, HDR10+, H.265 and VP9 among others. S905X2 CPU for Android TV Boxes has support HDMI 2.0 4K@60fps and USB 3.0.

AZW S95 Amlogic S905X2 Android 8.1 TV Box Highlights
● Android 8.1 operation system
● Amlogic S905X2 CPU, Quad core, ARM Cortex-A53, 2.0GHz
● ARM G31 MP2 GPU
● 2GB / 4GB LPDDR4 RAM + 16GB / 32GB eMMC ROM
● 2.4GHz + 5.8GHz dual band WiFi
● 1000Mbps Ethernet
● Support 4K ultra HD image display
● Support H.265 decoding

AZW S95 Amlogic S905X2 Android 8.1 TV Box Features
– Android 8.1version: The latest all-round upgraded Android operating system with better WiFi siginal than previous version, would give you fresh feeling, such as smooth and high performance in enjoying games or apps and watching video.
– High operating speed: S905X2 quad-core CPU which can give you high-speed feedback and smooth response. Dual-core ARM G31 MP2 Graphics of this TV Box which gives you the high definition pictures and videos.
– High-Level Configuration: 4GB LPDDR4 RAM, 32GB ROM Flash, provide enough room for installing apks, games etc. You can also expand the memory via the micro SD card slot up to 128GB. You can download many favorite applications, never worry about running out of space.
– Unique sleek and stylish design: the android tv box is small, sleek and stylish and has a tiny footprint; can fit in a small space near your TV. Ingenious app installation option through the browser that allows individual customization in a super easy way.

AZW S95 Ports
1 x USB 3.0 Port
1 x USB 2.0 Port
1 x HDMI Port
1 x RJ45 (1000Mbps)
1 x Micro SD card Port
1 x DC-in Port
1 x SPDIF Optical audio port
1 x Infrared receiver
1 x Reset button
1 x Front Power LED

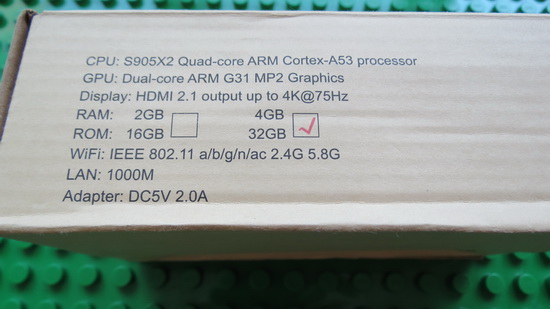

AZW S95 Specifications
Brand: AZW
Model: S95
Type: Android TV Box
CPU: Amlogic S905X2 Quad-core ARM Cortex-A53 processor
GPU: ARM G31 MP2 quad-core Graphics
RAM: 2GB / 4GB (LPDDR4)
ROM: 16GB / 32GB eMMC
Extended Storage TF card: up to 128GB
LAN: 1000M Gigabit Ethernet
Bluetooth: v4.0
WiFi: IEEE 802.11 a/b/g/n/ac 2.4G 5.8G Dual-band
USB: USB 3.0 & USB 2.0 ports
Color: Black
Dimensions: 77mm x 77mm x 17mm

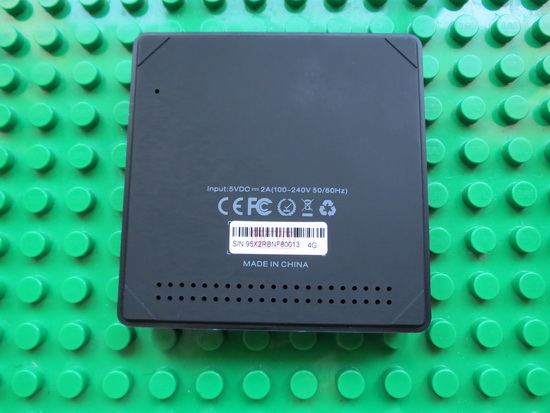

Power adapter: model JTHY-052000, 5V-2A 10W Certification, Input: 100-240V~50/60Hz, Output: 5V 2.0A

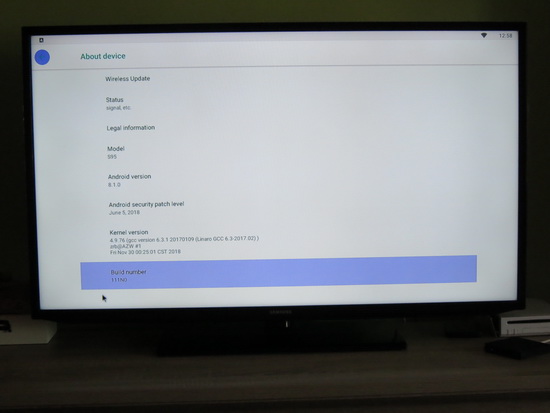

OS: Android Oreo 8.1.0
Android Security patch level: June 5, 2018
Kernel version: 4.9.76
Build number: 111N0

AZW S95 Video Performance

Real-time decoding of MPEG-1/2/4, H.264, H.265/HEVC, VC-1
H.264/AVC Base / Main / High / High10 profile @ level 5.1; up to 4Kx2K @ 30fps
Support video encoder for H.264 at BP / MP / HP @ level4.2
H.265 / HEVC Main / Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
VP9 profile 0; up to 4Kx2K @ 60fps
MPEG-1, ISO / IEC 11172-2, up to 1080P @ 60fps
MPEG-2, ISO / IEC 13818-2, SP@ML, MP@HL, up to 1080P @ 60fps
MPEG-4, ISO / IEC 14496-2, SP@L0-3, ASP@L0-5, up to 1080P @ 60fps
HDMI 2.1 output up to 4K@75Hz
HDMI 3D video formats
HDMI HDCP
AV (CVBS) 480i/576i

Package content

1 x AZW S95 Amlogic S905X2 Android 8.1 TV Box
1 x Power Adapter 5V 2A
1 x HDMI Cable
1 x IR Remote Control
1 x Multi-language User Manual (English / German / Spanish / Italian / Russian / Chinese)

Photo gallery full album here. Official website here. More about Beelink devices here. Here you can read about the unboxing of Beelink GT1 TV Box.
