Meet Elecrow CrowPanel Advance 7“ HMI ESP32-S3 Screen
I’ve worked with a variety of ESP32-based displays and HMI panels over the years, but the Elecrow CrowPanel Advance 7″ immediately stood out to me as a step above the rest. After spending a few weeks building and testing projects with it, I can say that this isn’t just another development screen—it feels like a true next-generation HMI platform that bridges hardware flexibility, AI integration, and developer-friendly tools.

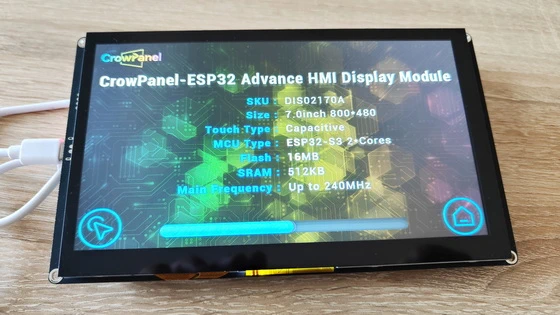

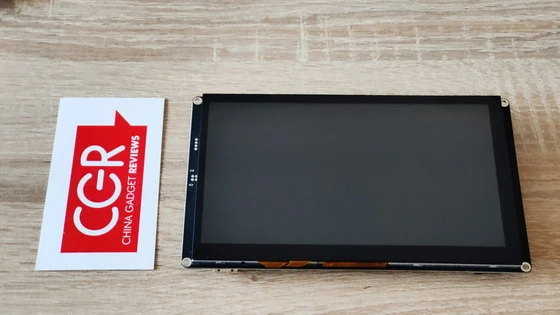

Right out of the box, the CrowPanel Advance makes a strong impression. The 7-inch IPS panel with 800×480 resolution is bright, clear, and has excellent color reproduction. Thanks to its 178° wide viewing angle, the display remains sharp no matter how I positioned it on my workbench. The capacitive touch panel was smooth and highly responsive—touch inputs felt instantaneous, with no lag or misreads. The casing feels sturdy, and the port layout is thoughtfully designed for accessibility. Compared to other HMI panels I’ve used, it’s obvious Elecrow put care into both usability and durability.

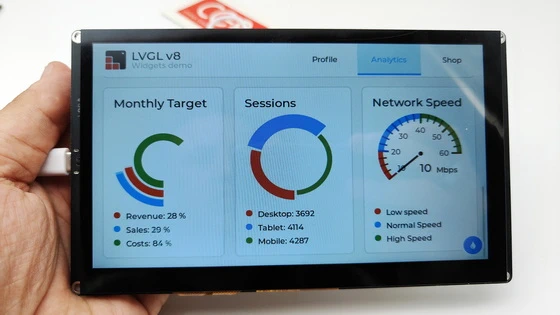

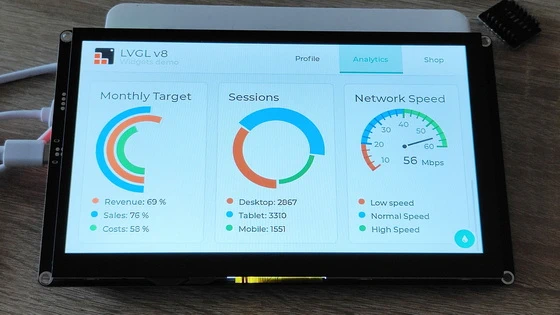

The real star of the show is the ESP32-S3 chip inside. With its dual-core Xtensa LX7 processor clocked up to 240MHz, plus 8MB PSRAM and 16MB Flash, the device handled demanding tasks with ease. Running advanced graphics with LVGL (LittlevGL) was smooth—even animations and UI transitions were fluid, which isn’t always the case on embedded touch screens. The built-in Wi-Fi and Bluetooth 5.0/BLE worked reliably in my tests. I streamed data from sensors, connected to a phone over BLE, and pushed UI updates via Wi-Fi without hiccups. For wireless IoT projects, this kind of stability is critical—and the CrowPanel delivered.
One of the biggest surprises was the integrated AI functionality. With a microphone and speaker support, I was able to experiment with voice recognition and speech synthesis. I built a prototype where I could give voice commands to control smart home lights, and the panel responded in real time with spoken confirmations. This voice-first interaction opened new possibilities, making the panel feel more like a smart assistant than a simple screen.

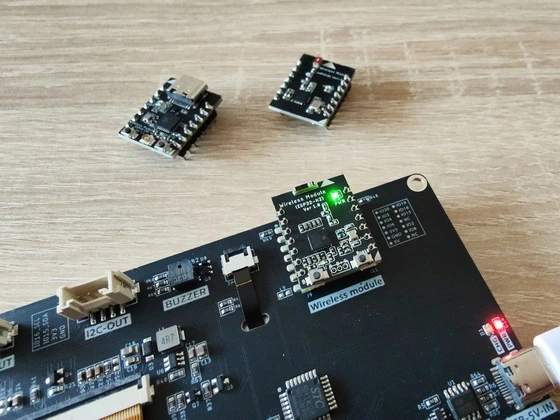

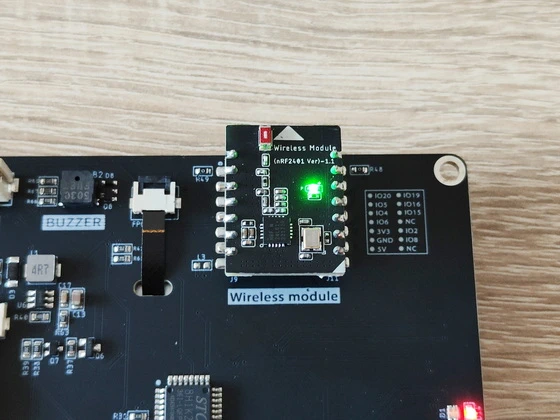

Another standout feature is the replaceable wireless module design. The ability to swap in modules supporting Zigbee, LoRa, Matter, Thread, nRF2401, and Wi-Fi 6 gives the CrowPanel incredible versatility. I tested the LoRa module for long-range communication, and it worked seamlessly. Knowing I can reconfigure the panel for different projects—whether it’s industrial IoT, smart agriculture, or off-grid networking—is a huge advantage. It’s worth noting that the current V1.2 version doesn’t directly support Meshtastic, but the modular design means future compatibility is possible, and for now it still handles LoRa perfectly.
The Elecrow CrowPanel Advance 7″ HMI ESP32-S3 is more than just an upgrade to the Basic Series—it feels like an entirely new class of embedded display. With its powerful processor, AI voice integration, modular wireless design, and developer-friendly ecosystem, it opens the door to applications far beyond typical hobby projects.

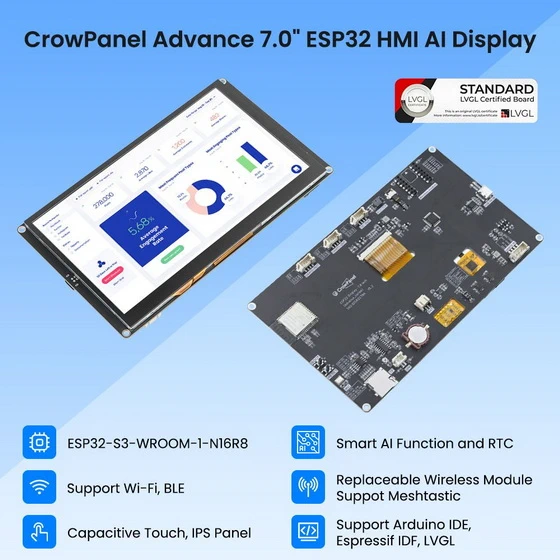

Elecrow CrowPanel Advance 7“ HMI ESP32-S3 Screen Main Features
– 7-inch IPS capacitive touchscreen with 800×480 resolution and 178° wide viewing angle—bright visuals and responsive multi-touch interaction. Brightness around 400 cd/m² for vivid clarity.
– Powered by the ESP32-S3 (WROOM-1-N16R8) module featuring a dual-core Xtensa LX7 processor up to 240 MHz.
– Equipped with 512 KB SRAM, 8 MB PSRAM, and 16 MB Flash—ample for handling graphics, AI workloads, and UI logic.
– Built-in 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0/BLE, using a built-in RF antenna for stable connections.

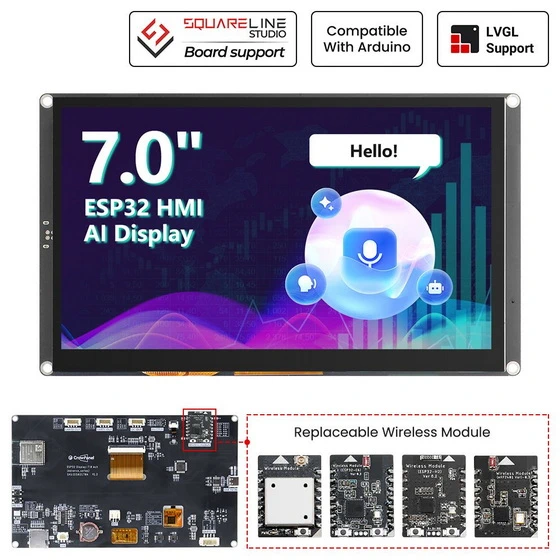

– Swappable wireless modules support Zigbee, LoRa, nRF2401, Matter, Thread, and Wi-Fi 6—for flexible networking protocols.
– Meshtastic compatibility available when paired with an appropriate LoRa module (e.g., SX1262).

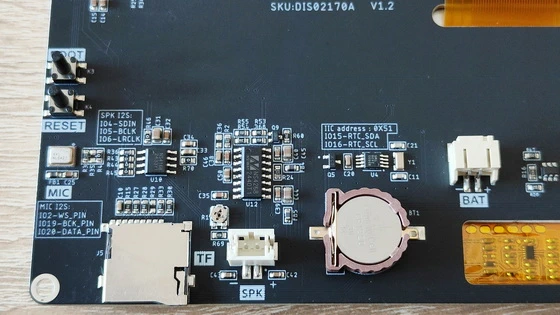

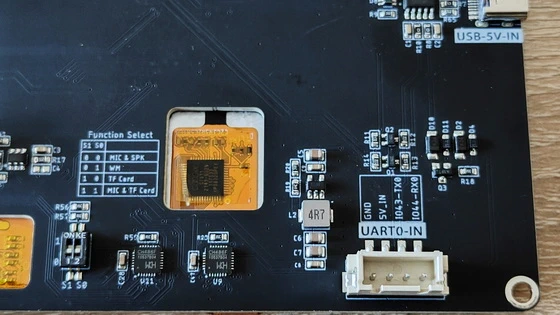

– Integrated microphone and speaker, enabling voice recognition and speech synthesis—supporting AI-style conversational interaction.

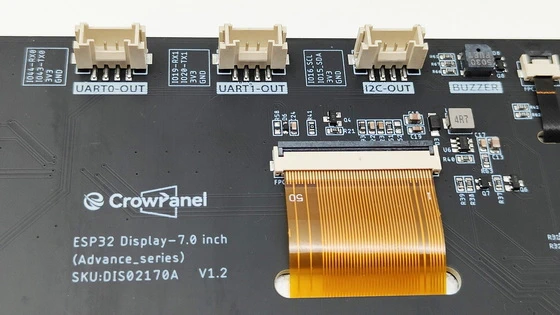

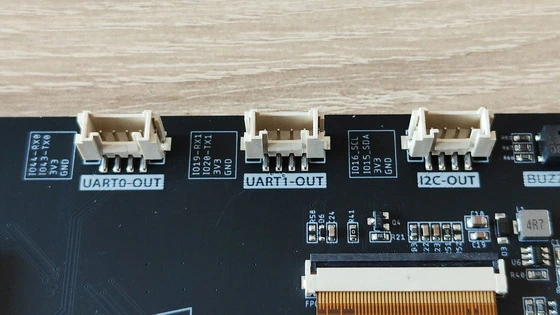

– Includes a wide range of interfaces: USB-C port, UART, I²C, micro SD card slot, battery charging port, RTC with battery backup, audio amplifier, and volume control.
– Real-Time Clock (RTC) ensures time-keeping even during power loss—ideal for timestamped logging.
– Compatible with Arduino IDE, Espressif IDF, PlatformIO, and MicroPython—offering flexibility across development environments.
– LVGL (Light and Versatile Graphics Library) support, with ease of creating GUIs using SquareLine Studio for WYSIWYG design.
– Well-integrated hardware design simplifies development—no need to assemble separate controller and display.
– Thoughtful port layout and durable housing, reflecting Elecrow’s attention to user-friendly engineering.
– Version 1.2 features improved power management, screen brightness adjustment, and updated internal code/firmware.
Real-life scenarios where Elecrow CrowPanel Advance 7“ HMI ESP32-S3 Screen can be quite useful
– Smart Home Control Hub. Central dashboard for lights, HVAC, and IoT devices with both touch and voice control.
– Industrial Automation Panel. Machine status monitoring, production line dashboards, and operator input interface in factories.
– Medical Device Interface. User-friendly display for patient monitoring systems, portable diagnostic tools, or telemedicine equipment.
– Agriculture Monitoring Station. LoRa or Zigbee-based field data collection for soil moisture, temperature, and irrigation control.
– Automotive/EV Dashboard. Custom HMI for electric vehicles, showcasing battery status, navigation, and diagnostics.
– Smart Energy & Solar Management. Display for monitoring solar panel output, battery storage levels, and energy consumption trends.
– DIY Smart Assistant. Voice-enabled panel acting as a local AI assistant, answering queries and controlling devices without cloud reliance.
– Drone Ground Control Station. Real-time telemetry, GPS maps, and flight data visualization with low-latency UI rendering.
– Retail & Vending Systems. Interactive kiosk interface for smart vending machines, point-of-sale terminals, or ticketing systems.
– Educational & Maker Projects. Hands-on platform for teaching IoT, AI, and HMI development in classrooms, workshops, or makerspaces.
Elecrow CrowPanel Advance 7“ HMI ESP32-S3 Screen Specifications
Brand: Elecrow
Model: CrowPanel Advance 7“ HMI ESP32-S3
Model number: DIS02170A
Screen size: 7”
Screen resolution: 800 x 480 pixels
Viewing angle: 178°
Brightness: 400 cd/m²(Typ.)
Color Depth: 16-bit
Screen type: capacitive touch panel
MCU Type: ESP32-S3 2 x Cores
CPU/SoC: high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz
Flash: 16 MB
SRAM: 512 KB
Main frequency: up to 240MHz
Bluetooth: Support Bluetooth 5.0 and BLE
Wireless: Wi-Fi, Bluetooth 5.0/BLE, modular support for LoRa, Zigbee, Thread, Matter, Wi-Fi 6
Audio/AI: Built-in mic & speaker for voice recognition and speech synthesis
Interfaces: USB-C, UART, I²C, microSD, battery & RTC
Software Support: Arduino IDE, ESP-IDF, PlatformIO, MicroPython, LVGL, SquareLine Studio
Function: RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc.
Reset Button: Yes, press to reset the device
Boot Button: Yes, press and hold the power button to burn the program
PWR: Power indicator
CHG: Lithium battery charging status, completion indication
Installation method: Back hanging, fixed hole (M3 thread)
Operating temperature: -20~70 °C
Storage temperature: -30~80 °C
Power Input: 5V/2A, USB or UART terminal
Active Area: 156mm*87mm
Dimensions: 181.26*108.36*16mm

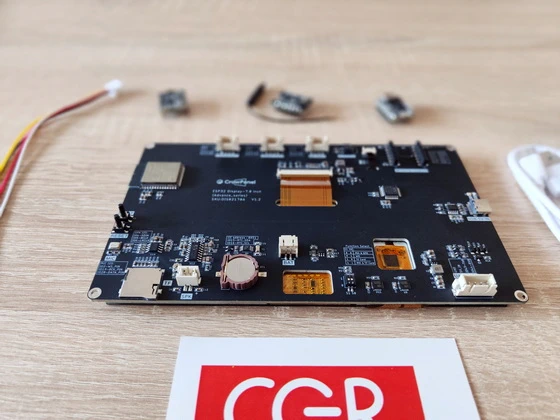

What’s In The Box
1 x Elecrow CrowPanel Advance 7“ HMI ESP32-S3 Screen
1 x Wireless Module-ESP32-H2 Optional
1 x Wireless Module-ESP32-C6 Optional
1 x Wireless Module-nRF2401 Optional
1 x USB-A to Type-C Cable
1 x Crowtail/Grove 4pin DuPont cable
1 x Packaging Box
