Elephone ELE Explorer S 4K Action Camera
Shooting photos and videos should be as relaxing & comfortable as being in love. Don’t let the heavy devices pull you back. For that, elePhone has designed the brand-new action camera – eleCam Explorer S. Warm tone, pleasant configuration. With both 4K resolution and High-speed recording up to 120fps, your photos and videos will look incredible true and vibrant.
Package and Accessories

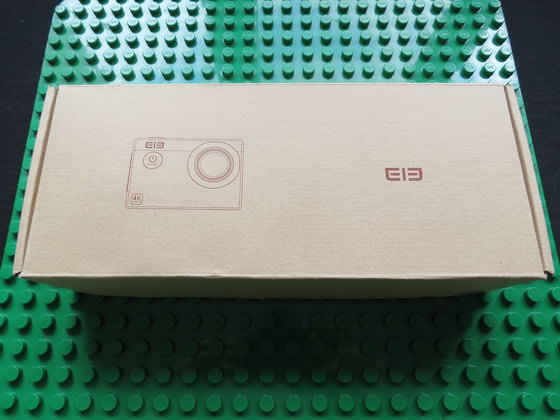

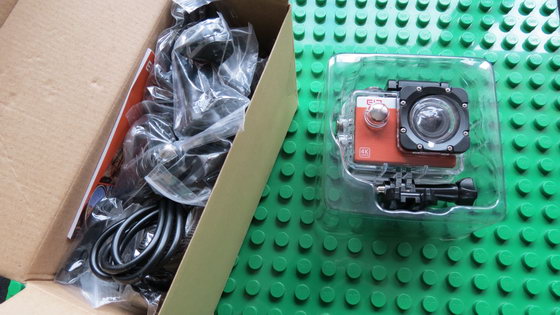

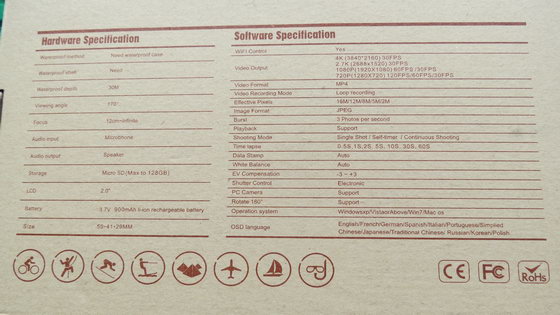

The dimensions of the package are 275mm*117mm*60mm, the weight is 526g. The package is made of recycled cardboard. The back side of the outer box contains detailed information about camera hardware and software specifications. The box is pretty practic and compact. It has no transparent parts to observe the camera inside it. There are two smaller boxes inside: one for the camera in waterproof box and another one for everything else. Apart from a solid waterproof box the camera bundle has a good and practical selection of standard mounting elements and accessories. It includes a plastic frame with two 1/4″ tripod screws. So the camera can be mounted in both positions straight and upside down. Explorer S camera comes with a pretty detailed user’s manual in English and there is also some weird stuff can be found in it.
The camera body is made of black plastic, the front panel is the main icing on the cake as it has very fresh look due to its ‘retro rangefinder camera’ style. It is done by using silver colored strip on its upper part and leather-like textured soft-touch material coated area underneath. This lower part of the front panel can be orange or black. The protective lens rim is black and its outer diameter is 20.6 mm, the lens protrudes forward making it necessary to keep in mind protection against scratches and dents. The front panel has a simple clean design with only the following markings on it: ‘ELE’ logo and a tiny square with ‘4K ULTRA HD’ words in it. Camera feels solid and the materials applied do not raise any questions.

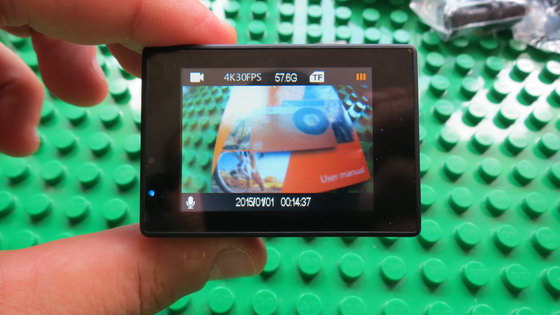

Explorer S action camera uses one of the most popular among Allwinner V3-based products Sitronix st9341 LCD driver. It works with 2-inch LCD display with ordinary viewing angles, colors become inverted when you turn the camera left or down. Brightness is enough for shooting under different lighting conditions. The screen is not touch sensitive and is covered with glossy transparent protective film.
The front panel has the power / mode button, it is also used for navigation through the menus. The shutter / ok button is located on the top. The left side has two buttons on it: up (short press – wifi, long press – digital zoom in) and down (short press – mute, long press – digital zoom out).
There are two LED indicators located on the back side of the camera. The red one lights up when the battery is charging, the blue one is permanently on when the camera is powered up. Another yellow LED is on the top, it starts blinking after switching on the WiFi connection.
The camera switches into wireless access point with ‘Explorer S’ SSID and ‘12345678’ password after the short press of the Up button. The strength of the Wi-Fi signal is very good, it allows remote controlling the camera with a smartphone from reasonably long distances.
ELE Explorer S Action Camera Highliths
● Sony 179 Camera & Allwinner V3 upgraded version.
● Large version. Delivers Amazing Moment. Easy shooting Real-time Viewing. Record from multiple angles along the way.
● Light & Portable. Collects the world into your pocket. Nice Design with Lightness, shooting has never been that easy.
● High color rendition, good image permeability, Support 128G development. 16MP for fine capturing dynamic, 1080p FHD video recording and image freeze-frame at 60 frames per second brings you clear and vivid quality.
● 2.0-inch HD color screen with highest video resolution 4K@30fps. The camera which can take high resolution and high frame rate video as well as has many powerful functions.
● 170° HD visual wide angle, a perfect presentation. With 170° wide angle which ensures excellent shoot vision and retains more realistic scene, it captures immersive wide-angle view.
● Allwinner V3 upgraded version. High cost-effectiveness. The new-developed Explorer S comes equipped with Allwinner V3 optimized low-power-consumption CPU and Cortex-A7 CPU. That means the camera can deliver 4K ultra-HD videos and perfectly capture any high-speed movement.
● Sony IMX 179 sensor real Sony sensor and the best 8-megapixel sensor. As the 3rd-generation backside-illuminated (BSI) sensor, the1/3.2 inch IMX 179 CMOS sensor has a great performance in low light. The frame rate can be up to 30fps. IMX 179 is far ahead of other 8M sensors on low-light performance, frame speed and power consumption.
● Multiple shooting mode. Electrify your shots. Ele explorer S has a variety of shooting modes, together with simple operations,
you can easily achieve various amazing professional effects without any complicated editing.
● The design of strong, waterproof and all-in-one. Strong protective box with waterproof performance 98 feet (30 meters) is used for Explorer. Protective box prevents dust, sand and water into the DV, can adapt to various environments.
● Skiing, diving, parachuting. Explorer S enables you capture every exciting moment.
Elephone ELE Explorer S 4K Action Camera Main Features
● Allwinner V3 chipset
● 8MP 1/3.2 inch IMX 179 CMOS sensor (1.4 μm pixel)
● 4K / 30fps video resolution, ultra high definition video shooting for a clear image
● 16MP still image resolution
● 170 degree wide angle FOV (diagonal)
● 2 inch LCD TFT screen, 320×240 resolution
● WiFi connection, up to 10m WiFi distance
● Support max 32G extended TF card (not included)
● Waterproof housing case, up to 30m water resistance
● Multiple shooting mode support difference scenarios
● Removable 900mAh rechargeable Li-ion battery, support about 70 minutes working time at 1080P / 30fps
Exposure: -3 – +3 EV in increments of 1
White Balance: Auto, Sunny, Cloudy, Incandescent Light, Fluorescent Light
WiFi: Off, On
Image Rotation: Off, On
Driving Mode: Off, On. If enabled the camera will turn on automatically when the power source is connected and will switch off when it is removed. This option also sets ‘Loop Recording’ to ‘2 minutes’ and enables ‘Auto Shutdown’ feature.
Light Source Frequency: Auto, 50Hz, 60Hz
LED Indicator Light: Off, On
Auto Screensaver: Off, 10s, 20s, 30s
Auto Shutdown: Off, 1minute, 3minutes, 5minutes
Time Watermark: Off, On. This option sets date stamp for both photo and video modes
Language: Chinese, English, Japanese, Korean, Russian, German, French, Italian, Spanish, Polish, Dutch, Portuguese, Thai
Date-Time: date and time settings (Use Up/Down buttons to change value, Shutter to switch between input fields)
Format: prompts to format memory card
Reset To Factory Setting: prompts to reset camera settings to defaults
Firmware Version: shows camera model, current firmware version and date (Model: ExplorerS, Version: 20170221v1.1)
ELE Explorer S Action Camera Specifications
Model: ELECAM Explorer S
Type: Sports Camera
Type of Camera: 1080P, 4K
Chipset Name: Allwinner
Chipset: Allwinner V3
Sensor size (inch): 1/3.2
Max External Card Supported: TF 128GB (64GB tested, not included)
Screen size: 2.0inch
Screen resolution: 320×240
Battery Type: Removable
Battery Capacity (mAh): 3.7v Li-ion 900mAh
Charge way: USB charge by PC
Working Time: 70 minutes
Standby time: 100 minutes at 1080P 30fps
Charging Time: 1.5h
Wide Angle: 170 degree wide angle
Camera Pixel: 16MP
Video resolutions and format: 3840×2160 30 fps, 2688×1520 30 fps, 1920×1080 60/30 fps, 1280×720 120/60/30 fps. MP4 file format.
Video Frame Rate: 120fps,30FPS,60FPS,90fps
Photo resolutions: 16M/12M/8M/5M/2M
Wireless features: Wi-Fi 802.11b/g/n
WiFi Distance: 10m
Water Resistant: 30m
Camera Timer: Yes
Additional features: UVC webcam, 4x digital zoom
Connectors: microUSB, microHDMI
Weight: 61 g (44 g without battery)
Dimensions: 59.3 mm * 41.2 mm * 25.1 mm (31.2 mm with lens)
Product code:102051 / 231964
FCC ID: 2AGUA-EXPLORERS

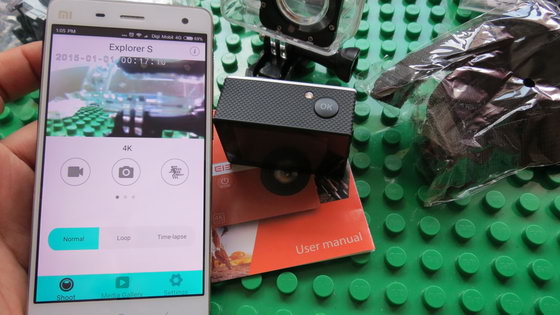

Explorer S Android application
Explorer S is a streaming video surveillance software, iPhone through sport DV hotspot, connecting Zhuhai allwinner technology based on the movement of the main chip DV, real-time monitoring. Motion camera using the most advanced streaming media solution that can achieve low latency, high-quality image.
1. Live Preview motion DV video screen.
2. DV can control the motion to take pictures, video, photography slow operation.
3. Where Camera features including ordinary camera, time taking pictures, automatic camera, camera trajectory. Video features include loop recording, time-lapse recording. Photography can be slow depending on the resolution of fun settin
4. Set the motion DV terminal directly related settings, such as exposure, white balance and so on.
5. Connect the process, real-time browsing, file management movement DV terminal, also can be downloaded to the phone side backup.
6. The software also can be made without connecting motion DV status, pictures or video files have been downloaded.
7. You can simultaneously share to each social platform.
You can install Explorer S Android application version 1.0.4 from Google Play Store.
1 x Elephone ELE Explorer S 4K Action Camera
1 x Waterproof Housing + Screw + Mount
1 x English User Manual
1 x Backdoor
1 x Clip
1 x Frame
1 x Bicycle Mount
1 x J-shaped Mount
3 x Connector + Screw
1 x Tripod Adapter + Tripod Mount Adapter
2 x Mount
3 x Belt
1 x Metal Tape
4 x Plastic Tape
1 x Cleaning Cloth
2 x Adhesive
1 x USB Cable (70cm)
