Unboxing Qintaix Q96 HDMI Input 4K Media Player
Wholesales Best Deal Alert! You can buy Qintaix Q96 HDMI Input 4K Media Player from this link.

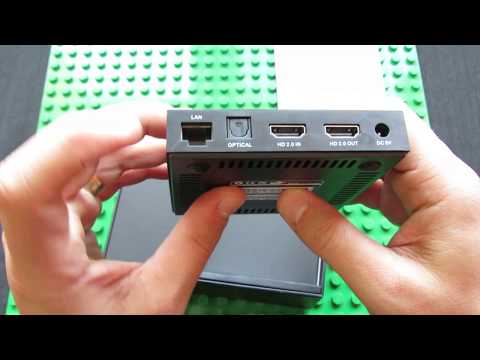

Qintex Q96 TV Box has an elegant and compact design, with a black matte plastic case exterior. In the front it has only the IR receiver and the power LED light indicator. On the right side it has the micro SD card reader, 3.5mm Earphone jack output and 2 full size USB ports. In the rear you can find the Ethernet LAN RJ45 port, Optical audio out, HDMI 2.0 in, HDMI 2.0 out and the DC 5V power port. The overall impression is pretty good, the device looks to be constructed with big care to details.
Qintex Q96 TV Box comes with 2GB of RAM and 16GB eMMc of internal storage, that we can expand thanks to the microSD card reader. The model adopts the quad core T962E CPU from Amlogic. For connectivity the device includes wired Ethernet RJ45, 802.11 a/b/g/n/ac Dual band Wi-Fi, Bluetooth 4.1 and Infra Red receiver on board.
The Amlogic T962E SoC IS a chip that has not been popular at all in the TV-Box sector but that seems to have had a great reception in the segment of the entry-level Smart TV. An AMlogic SoC that stands out for being able to manage two HDMI ports and that is capable of playing video up to 4K resolutions at 60fps without problems. In the HDMI input port we can connect an external device and visualize the image through the TV-Box although we can not make recordings.
The operating system is Android Nougat 7.1 and we have an IR remote control among the accessories included in the box of this TV-Box.
Qintaix Q96 HDMI Input 4K Media Player Features
– CPU: Amlogic T962E Quad core ARM Cortex-A53 CPU up to 1.5GHz (DVFS)
– GPU: Penta core ARM Mali-450MP GPU up to 750MHz (DVFS)
– OS: Android Nougat 7.1
– RAM: 2GB DDR3
– ROM: 16 GB eMMC Flash, micro SD card up to 128GB
– Wifi: 2.4Ghz & 5.8Ghz Dual Band WiFi Support IEEE 802.11 a/b/g/n/ac
– Support for multiple languages
– Blutooth: v4.1
– KD pre-installed with addons
– Video output: HD 2.0 4K*2K@60fps display
– Power: DC IN 5V/2.5A
Google play: Support downloading more than 600,000 applications from google play store.
UI: Attractive UI design for better user experience; Original Android UI can be settled by user as well.
Language: Support Multi-Language
3G Dongle: Compatible with extemal 3G dongle
Protocol: Support Miracast,DLNA,Airplay
Remote Control: IR remote build in; At same time,can be remote by 2.4G fly mouse/mini keyboard.
Audio Decoder: MP3, WMA, AAC, WAV, OGG, AC3, FLCA and programmable with 7.1/5.1 down-mixing
Video Decoder: VP9-10 / H.265 uo to 4Kx2K@60fps, h.265 WMV / MPEG-1 / AVS / Realvideo up tp 1080p@60fps
Video Format: MKV / WMV / MPG / MPEG / DAT / AVI / MOV / ISO / MP4 / RM / JPG
Resolution: Support 4Kx2K&Full HD 4Kx2K@60fps video output
Qintaix Q96 Interface
2 x Full size USB 2.0
1 x Charging DC 5V/2A port
1 x micro SD / TF card slot
1 x HDMI 2.0 out
1 x 3.5mm Earphone jack output
1 x Ethernet LAN RJ45 port
1 x Optical audio out
1 x Infrared receiver
1 x reset button (inside 3.5mm Earphone hole)
Package content
1 x Qintaix Q96 HDMI Input 4K Media Player
1 x HDMI Cable
1 x Power Adapter model SYT0525 5V 2.5A
1 x English Quick Install Guide
1 x IR Remote control
1 x e-Manual
