Unboxing RKM DS02 Android 7.1 4G & WiFi Digital Signage TV Box

Best Deal Alert! You can buy RKM DS02 Android 7.1 4G & WiFi Digital Signage TV Box from Aliexpress.com for a very good price.

RKM DS02

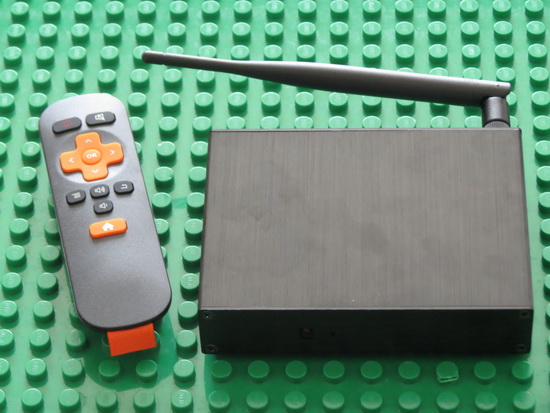

Meet RKM DS02 Android 7.1 4G & WiFi Digital Signage TV Box
An Android TV Box is a small device – either a stick, a dongle or an actual box – that when connected to a TV screen, turns it into a computer, connects it to the internet and enables many neat features and usages. The Android TV Boxes run on Android OS, enable usage of any Android app in the Google Play Store. The Android TV Box either connects directly to a USB port on your TV or to a power source. Rikomagic offers digital signage firmware as a commercial solution. Without any special IT skills, any business can take a TV screen, connect it to DS02 Android player and start broadcasting, it enables you to transform any TV into a beautiful affordable digital signage display.

Rikomagic DS02 digital signage / advertising player supports the 4G LTE network. This is a great feature if you need to use a wireless network to build a digital signage system, and network players must be deployed in different places where there are no ethernet cables or WiFi networks.

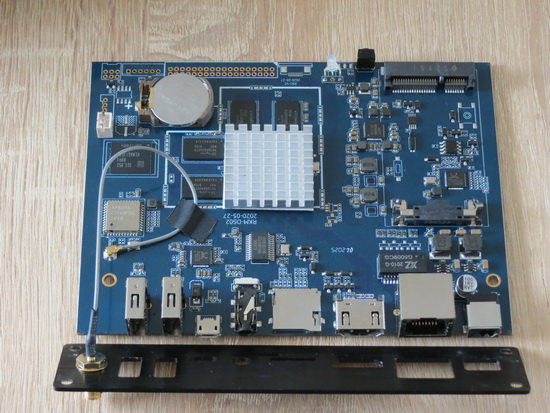

RKM DS02 Android Media Player is based on the popular Rockchip RK3288 SoC and runs on Android 7.1. Inside we will find 2GB RAM and 16GB eMMC.

RKM DS02 Highlights
– 4G or WIFI connections supported.
– Metal Case.
– OS: Android 7.1;
– CPU: Rockchip RK3288;
– Digital signage media player support rotation, RTC, time on/off;

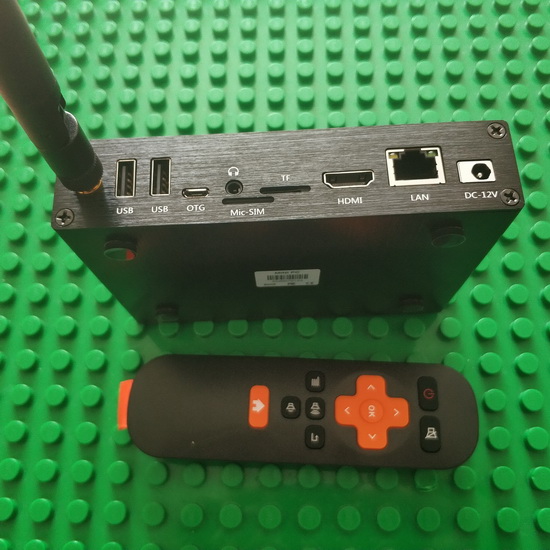

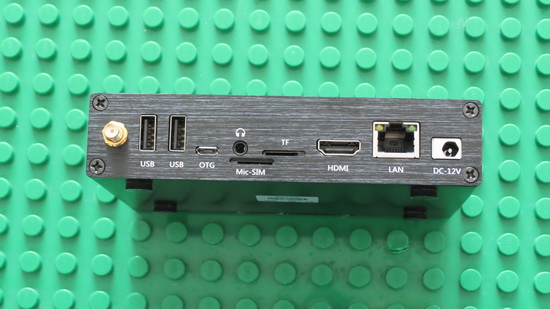

RKM DS02 Ports
1 x DC in 12V
1 x 1000M Gbit LAN RJ45 port
1 x HDMI 2.0
1 x TF / Micro SD card slot
1 x Micro SIM slot
1 x 3.5mm Earphone Jack
1 x Mini USB OTG port
2 x USB 2.0 Host
1 x external antenna
1 x front LED
1 x Infrared receiver
Extension ports: reserved pins for LVDS, backlit, AVR output, MIC, touch panel

RKM DS02 Specs

CPU: Rockchip RK3288 quad core, 28nm, ARM Cortex-A17,up to 1.8GHz
GPU: Quad-Core ARM Mali-T760 MP
RAM: 2G RAM
ROM: 16G ROM
Network : Gbit LAN, Dual band WiFi,802.11n/ac;
4G / WIFI: 4G or WIFI supported, only 1 available, default 4G
Extension ports: reserved pins for LVDS, backlit, AVR output, MIC, touch panel
Resolution: 4K@60Hz
OS: Android  7.1
Time on/off: Supported
Watchdog: Supported
Touch screen: Compatible with most of USB touch screen
Wake up via network: Support wake up via network.(LAN only)
Real Time Clock (RTC): Supported
Rotation: Support manual rotate by 0°, 90°, 180°, 270°
Customzie FW: Supported, MOQ 500pcs
Working Temperature: 0°~70°
Working humidity: 0%~95%
Unit Size: 140*147*30mm (with antenna); 140*114*30mm (without antenna)
Color: Black

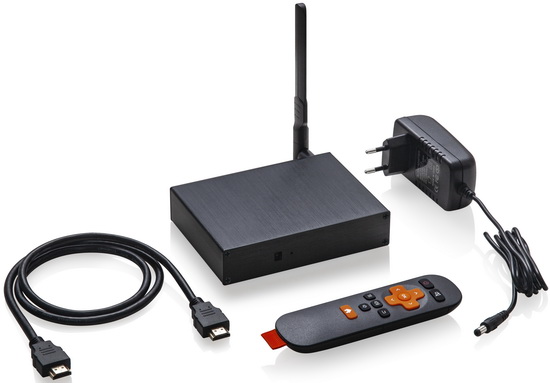

Package content

1 x RKM DS02 Android 7.1 4G & WiFi Digital Signage TV Box
1 x Power Adapter model SYT-12V2A
1 x HDMI Cable
1 x IR Remote Control
1 x External Antenna

Photo gallery full album here. Official website here. More about Rikomagic here.

                                     RKM DS02        RKM DS02 RKM DS02 RKM DS02 RKM DS02 RKM DS02                 RKM DS02RKM DS02
