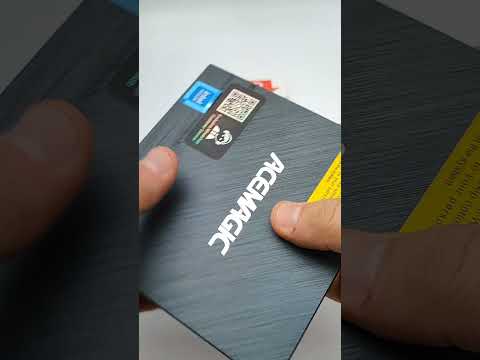

Unboxing ACEMAGIC CK11 Intel Core i7 16GB DDR4 512GB NVME SSD Mini PC
Best Deal Alert! You can now buy ACEMAGIC CK11 Intel Core i7 16GB DDR4 512GB NVME SSD Mini PC from Amazon.de with €100 coupon discount on page. Hurry up, limited time offer!
Meet ACEMAGIC CK11 Mini PC
The ACEMAGIC CK11 Mini PC is a compact desktop computer with support for up to three displays, Ethernet ports, Wi-Fi6 and Bluetooth 5.2. It’s not the most powerful mini PC on the market, but it’s fairly versatile system with a beautiful design and silent operation. And it’s pretty cheap.
The Intel Core i7 11390H processor uses the new 10nm SuperFin technology and the new Tiger Lake architecture, generates a clock frequency of up to 5.0 GHz and handles all routine and daily tasks without delay. The 16GB DDR4 memory also helps the computer to run multiple applications simultaneously, as well as access frequently-used files and programs. Files can be stored locally on the 512GB NVME SSD, while the USB ports provide connections for multiple peripherals and accessories. We have also triple video output with two HDMI 2.0, USB Type-C and VGA outputs that allow us maximum video resolutions up to 4K@60Hz. Connect wireless peripherals with Bluetooth 5.2 and go online without any cables with Wi-Fi 6. A Gigabit LAN port is also present, supporting a very fast wired Ethernet connection. It runs on the 64-bit Windows 11 Pro operating system out of the box.
ACEMAGIC CK11 Mini PC can handle diverse applications easily, widely used in various occasions like daily work, online streaming, heavy gaming, design or home entertainment. It’s compact size makes you business trip easier and burdenless. It’s definitely a good conpanion for your work, study and daily life. This mini computer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBOmax, Youtube 4K – everything works just fine, CK11 is giving you the ultimate experience in streaming performance. The smaller size expands the scope of application, and the design is still suitable for the office. Four monitors can be connected at the same time. The plastic shell is very durable, so that you can put it in a travel bag and take it with you on trips. Furthermore, you can use a mounting bracket to attach it to the back of your monitor.
There’s a lot to like about the ACEMAGIC CK11 Mini PC. It’s conveniently-sized and could easily fit into even the most tightly-packed desktops. It’s also highly versatile, with a range of different ports, mounting options, and configurations available to suit almost every conceivable home or office. If you are looking for a small desktop PC that is more than capable for your everyday basics, yet still affordable enough as not to break your bank, the ACEMAGIC CK11 is too good of an option to be overlooked.
Advantages of using ACEMAGIC CK11 Mini PC
– High Performance: The Intel Core i7 processor is known for its exceptional performance. It can handle demanding tasks such as video editing, 3D rendering, gaming, and software development with ease. The combination of a powerful CPU, ample RAM, and a fast SSD ensures smooth multitasking and speedy application loading.
– Compact Form Factor: This Mini PC is compact and space-saving, making them suitable for environments with limited space, such as small home offices or media centers. They can be easily mounted on the back of a monitor or placed on a desk without taking up much room.
– Energy Efficiency: ACEMAGIC CK11 is more energy-efficient than full-sized desktop computers. This can result in lower electricity bills and a reduced environmental footprint.
– Quiet Operation: Many mini PCs are designed to be fanless or have very quiet cooling systems, ensuring a quiet computing experience. This makes them ideal for use in noise-sensitive environments like bedrooms or libraries.
– Portability: Due to their compact size and lightweight nature, mini PCs are easy to transport. You can carry them between home and office, use them as a portable media center, or take them to meetings or presentations.
– SSD Speed: The NVMe SSD (Non-Volatile Memory Express Solid State Drive) offers incredibly fast read and write speeds compared to traditional hard drives. This results in rapid boot times, near-instantaneous application launches, and overall snappy system performance.
– Memory Capacity: With 16GB of DDR4 RAM, this mini PC provides ample memory for most tasks, including multitasking and running memory-intensive applications. You can comfortably handle multiple browser tabs, large spreadsheets, or virtual machines.
– Reliability: Mini PCs are often designed with durability in mind. They tend to have fewer moving parts, which can lead to increased reliability and longer lifespans.
– Expandability: While mini PCs are compact, they often come with multiple USB ports, HDMI or DisplayPort outputs, and even expansion slots for adding additional storage or peripherals, ensuring connectivity and expandability options.
– Cost-Effective: In many cases, building or purchasing a mini PC can be more cost-effective than buying a full-sized desktop or a high-end laptop with similar specifications. They offer a good balance between performance and cost.
– Customization: This mini PCs allows for component upgrades, such as RAM or storage, giving you the flexibility to tailor the system to your specific needs.
– Lower Maintenance: Mini PCs typically generate less heat and dust buildup due to their compact design, resulting in lower maintenance requirements.
ACEMAGIC CK11 Mini PC Features
– 11th generation Intel Core i7 CPU: The ACEMAGIC mini computer is equipped with a Core i7 11390H processor, uses the new 10nm SuperFin technology and the new Tiger Lake architecture, generates a clock frequency of up to 5.0 GHz and handles all routine and daily tasks without delay.
– Exceptional speed: Equipped with 16GB DDR4 high frequency memory, it offers you a faster and more efficient response speed. The dual channel memory design supports upgrade to 64GB (2 x 32GB), even with frequent tasks can be quickly responded and worked efficiently. Built-in 512GB NVMe SSD, no fear of large storage applications and files. It supports SSD/HHD expansion of no less than 2TB.
– Stable connection, fast transmission: The mini computers support 2.4G/5G WiFi and Bluetooth 5.2 to provide a stable operating experience, available for connecting various wireless devices such as mice, keyboards, headphones, etc. This mini computer also supports automatic power supply. ON, RTC Wake-up and LAN Wake-up.
– 4K resolution and support for triple displays: the ACEMAGIC mini PC is equipped with Intel UHD graphics for processors of the 11th generation in stunning 4K UHD resolution, making it an ideal home theater PC. HDMI X 2 ports ensure compatibility with monitors, TVs and projectors and offer a wealth of display options.
ACEMAGIC CK11 Mini PC Highlights
– Compact & Ultra High-efficiency Mini PC
– Powerful processing
– Lightning-fast memory and high-speed storage
– Low energy consumption
– Advanced hardware & software security features
– High-Speed Network
– Triple Display outputs
– Very easy to make memory upgrades.
ACEMAGIC CK11 Mini PC BIOS
The Ami BIOS of ACEMAGIC CK11 Mini PC is pretty rich in features and options. There are 6 tabs in settings, with a few options each: Main, Advanced, Chipset, Security, Boot, Save & Exit. I have made a BIOS back-up, you can download it from here. I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.
BIOS details
BIOS Vendor: American Megatrends Aptio – AMI
BIOS version: 2.22.1282
Core version: 5.19
Project Version: TK12H 0.01 x64
Firmware ID: TK12H01
BIOS Chip Name: Wnbond 25X/Q Series
Compliancy: UEFI 2.7; PI 1.6
Build date: 02/01/2023 14:55:32
Processor name: TigerLake ULT
Processor Type: 11th Gen Intel(R) Core (TM) i7-11390H
Features: Wake On LAN, UEFI, PXE Auto power on when power failure
ACEMAGIC CK11 Mini PC Windows 11 Drivers
ACEMAGIC CK11 Mini PC came with Windows 11 Pro 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and untill now everything runs just great. The Windows version was 22H2 Build 22621.525.
Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Portable Devices, Ports (COM & LPT), Print queues, Processors, Security devices, Software components, Software devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.
I extracted with DoubleDriver the drivers for Windows 11 Pro version 22H2, you can download the archive from here. Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.
About System
Processor: 11th Gen Intel(R) Core (TM) i7-11390H @ 3.40 GHz 3.42 GHz
Installed RAM: 16.0 GB (15.8 GB usable)
Storage: 512GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 22H2
Installed on: 9/15/2023
OS build: 22621.2283
Experience: Windows Feature Experience Pack 1000.22662.1000.0
ACEMAGIC CK11 Mini PC Ports
1 x Power On / Off button
1 x DC in port
4 x USB 3.0 port
1 x USB Type-C port
1 x Audio Line out Jack
2 x HDMI 2.0 port
1 x VGA port
2 x RJ45 Gigabit LAN port
1 x Power LED light
1 x Kensington Lock Security Slot
ACEMAGIC CK11 Mini PC Specs
Brand: ACEMAGIC
Model: CK11
Model number: CMNCK110AEU1651
CPU: 11th Gen Intel(R) Core (TM) i7-11390H @ 3.40 GHz 3.42 GHz
GPU: Intel Iris Xe Graphics
Memory: 16GB DDR4 RAM SODIMM 2666MHz 1.2V PC4-21300S, expand up to 64GB
Storage: Installed 512GB M.2 2280 NVMe SSD, expand up to 2TB
Video output: HDMI 2.0 + USB Type-C + VGA ports
WiFi: WiFi 6 802.11ax, m.2 PCle port
Bluetooth: v5.2
LAN: RJ45 LAN x 2, 1000Mbs Gigabit Ethernet
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 19V 3.42A DC 64.98W
Work/Storage Environment: -10°C–45°C，30%–85% Humidity/-20°C–60°C，10%–90% Humidity
Color: Black / Silver / Gray
VESA Support: 70×70 mm / 100×100 mm
OS version: Windows 11 Pro version 22H2 Build 22621.525
Plug: EU / US / UK / JP
Package Content
1 x ACEMAGIC CK11 Mini PC
1 x Power Adapter model AD0651-1903420F 19V 3.42A 64.98W
1 x Monitor mounted bracket
1 x HDMI cable (80 cm)
8 x Screw
1 x Multi-language User Manual (EN / ND / FR / DE / IT / CN / PL / ES / SE)
About AceMagic. We are passionate about empowering individuals and businesses with cutting-edge technology that helps them achieve more and reach their full potential with our personal consumer microelectronics. In 2013, a group of tech enthusiasts were inspired by the “Magician Impossible” series. They set out to create a brand that would deliver computing solutions that were not only powerful but also fun and accessible. Today, Acemagician is leading the way in miniaturizing personal electronic devices, making technology more convenient, portable, and accessible. Our brand slogan, “Mini Space, Big World,” reflects our mission to bring the magic of technology to the world of personal consumer microelectronics. To provide powerful mini PCs that empower individuals and businesses to unleash maximum computing power in a compact form factor, enabling them to work and create from anywhere. We are committed to sustainability and strive to offer portable computing solutions that reduce environmental impact while providing cutting-edge technology. Through our innovation and dedication to efficient computing, we aim to enable people to achieve more with limited space and resources.
