Unboxing AceMagician AM06 Pro AMD Ryzen 5 16GB RAM 512GB SSD Mini PC
Best Deal Alert! You can now buy AceMagician AM06 Pro AMD Ryzen 5 16GB RAM 512GB SSD Mini PC from Amazon.it with 28% off. Hurry up, limited time offer!
Meet AceMagician AM06 Pro Mini PC
The AceMagician AM06 Pro Mini PC is a compact desktop computer with support for up to triple displays, two Ethernet port, Wi-Fi 5 and Bluetooth 4.2. It’s not the most powerful mini PC on the market, but it’s fairly versatile system with a beautiful design and silent operation. And it’s not expensive at all. Using the appropriate tools, the Acemagic AM06 Pro can be opened without any problems. There are 4 screws at the bottom, after removing them, the bottom cover can simply remove it.
The AMD R5 5600U integrates six of the eight cores based on the Zen 3 microarchitecture and is the third fastest U-series processor at launch. The cores are clocked at 2.3 (guaranteed base clock) to 4.2 GHz (Turbo) and support SMT for a total of 12 threads. The chip is manufactured on the modern 7 nm TSMC process. Zen3 debuted in AMD Ryzen 5000 series desktop processors. This comprehensive design overhaul delivered a further 19% IPC increase thanks to over 20 major changes, which included: wider and more flexible execution resources; significantly more load/store bandwidth to feed execution; and a streamlined front-end to get more threads in flight – and do it faster. It also transitioned to a new “unified complex” design that brought 8 cores and 32MB of L3 cache into a single group of resources. This dramatically reduced core-to-core and core-to-cache latencies by making every element of the die a next-door neighbor with minimal communication time. Latency-sensitive tasks like PC gaming especially benefited from this change, as tasks now have direct access to twice as much L3 cache versus “Zen 2.” Constructed on the same efficient 7nm manufacturing node as ‘Zen2’, Ryzen 5000 desktop processors increased the maximum clock speed to 4.9 GHz. With a TDP of 15 W, the Ryzen 5 5600U consumes very little energy. AMD’s processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 3200 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the machine, Ryzen 5 5600U uses a PCI-Express Gen 3 connection. This processor features the Radeon Vega 7 integrated graphics solution. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too.
The 16GB DDR4 memory also helps the computer to run multiple applications simultaneously, as well as access frequently-used files and programs. Files can be stored locally on the 512GB NVME SSD, while the 5 USB ports provide connections for multiple peripherals and accessories. We have also triple video output with HDMI 2.0, DP and USB Type-C outputs that allow us maximum video resolutions up to 4K@60Hz. Connect wireless peripherals with Bluetooth 4.2 and go online without any cables with Wi-Fi 5. Two Gigabit LAN port is also present, supporting a very fast wired Ethernet connection. It runs on the 64-bit Windows 11 Pro operating system out of the box.
AceMagician AM06 Pro Mini PC can handle diverse applications easily, widely used in various occasions like daily work, online streaming, heavy gaming, design or home entertainment. It’s compact size makes you business trip easier and burdenless. It’s definitely a good conpanion for your work, study and daily life. This mini computer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBOmax, Youtube 4K – everything works just fine, AM06 Pro is giving you the ultimate experience in streaming performance. The smaller size expands the scope of application, and the design is still suitable for the office. Three monitors can be connected at the same time. The plastic shell is very durable, so that you can put it in a travel bag and take it with you on trips.
There’s a lot to like about the AceMagician AM06 Pro Mini PC. It’s conveniently-sized and could easily fit into even the most tightly-packed desktops. It’s also highly versatile, with a range of different ports, mounting options, and configurations available to suit almost every conceivable home or office. If you are looking for a small desktop PC that is more than capable for your everyday basics, yet still affordable enough as not to break your bank, the AceMagician AM06 Pro is too good of an option to be overlooked.
Advantages of using AceMagician AM06 Pro Mini PC
– Powerful Performance: The AMD Ryzen 5 5625U processor provides strong performance for a mini PC. It can handle a wide range of tasks, including office work, web browsing, content creation, and even some gaming.
– Multitasking: With 16GB of DDR4 RAM, you can run multiple applications simultaneously without experiencing slowdowns. This is great for productivity and multitasking.
– Fast Storage: The 512GB storage capacity is typically provided by an SSD (Solid State Drive), which offers fast read and write speeds. This ensures quick boot times and responsive application performance.
– High-Resolution Display: The 4K support allows you to connect to and use 4K displays, providing stunning visuals and excellent clarity, which is particularly beneficial for media consumption, graphic design, and video editing.
– Wireless Connectivity: Dual band 802.11a/b/g/n/ac offers faster and more stable wireless internet connectivity, which is useful for streaming, online gaming, and downloading large files. Bluetooth 4.2 provides compatibility with a wide range of wireless peripherals.
– Triple-Screen Output: The ability to connect to three screens simultaneously is advantageous for professionals who require a multi-monitor setup for tasks like video editing, 3D modeling, and data analysis.
– Compact and Space-Saving: Mini PCs are small and compact, saving space on your desk or in your living room. They are ideal for those with limited space.
– Portability: Mini PCs are often lightweight and easy to transport, making them a convenient option for users who need computing power on the go or want to set up a flexible home entertainment system.
– Energy Efficiency: Mini PCs typically consume less power compared to full-sized desktop computers, which can lead to energy savings over time and a reduced environmental footprint.
– Quiet Operation: Mini PCs tend to have efficient cooling solutions and produce less noise compared to larger desktops, making them suitable for quiet work environments and home theater setups.
– Versatility: These mini PCs can serve various purposes, including as a home theater PC (HTPC), a small office computer, a media server, or a digital signage player, depending on your needs.
– Modern Aesthetics: Many mini PCs have sleek and modern designs that blend well with contemporary home or office setups.
– Customization: This mini PCs allows for component upgrades, such as RAM or storage, giving you the flexibility to tailor the system to your specific needs.
– Lower Maintenance: Mini PCs typically generate less heat and dust buildup due to their compact design, resulting in lower maintenance requirements.
AceMagician AM06 Pro Mini PC Features
– AMD Ryzen 5 5625U Mini PC Processor. ACEMAGICIAN mini desktop computer is equipped with an AMD Ryzen 5 5625U processor (2.3-4.3GHz, 6 cores 12 threads, 16MB L3 cache). The Windows 11 Pro operating system is pre-installed. Zen 3 architecture, compared to the previous Zen 2 processor, brings up to 3.4% performance gain in multitasking. 7nm lithography, smaller chip, more performance and more powerful than Ryzen 5500U/3500U performance, with smoother operation, it can be used in office automation (PS,PR, CAD, ArcGIS and other desktop software), and can also be used as PC Gaming (LOL, GTA5, CSGO and other great games).
– Ultra fast speed and large capacity. The micro pc is equipped with 16GB dual channel DDR4 high frequency memory (2x8GB, can be upgraded up to 64GB MAX), and a high-capacity M.2280 NGFF 512GB SSD hard drive, which allows smooth and unhindered multitasking, stable and fast processing of large files, and execution. simultaneous multiple programs no lag. If you are worried that the capacity is not enough, there is a 2.5-inch hard drive slot at the base of the CPU, you can add an additional hard drive to expand the storage space to 2TB.
– 4K @ 60Hz and Triple Display Screen. The mini PC incorporates the AMD Radeon Vega7 1800MHz GPU to provide great graphics processing power, supports HD (4K@60Hz), can play 4K UHD movies very smoothly, so that every detail is perfectly reflected, to meet the requirement of viewing on a large screen, triple display 4K@60 GHz, easily connect 3 monitors, reduce waiting time, multiply working, gaming and creative efficiency.
– Powerful Cooling. This small pc is equipped with 2 USB 2.0 ports, 2 USB 3.0 ports, 1 HDMI, 1 DC port, 1 microphone port, 1 Type-C port, 2 RJ45 ports, a wealth of ports to meet your daily office choices. The powerful built-in cooling fan can quickly cool the mini PC, allowing heat to escape faster, reducing hardware loss and providing faster response time.
– Forget about slowdowns. Mini PC has built-in 2.4GHz and 5.0GHz dual-band WiFi, Bluetooth 4.2, 1000Mbps network, faster transmission speed, which can effectively reduce buffering and delays, improve wireless network performance, and remain stable and reliable. It can be connected with your mouse, keyboard or headset, or work with servers, monitoring devices, office equipment, monitors, projectors, TVs, etc.
– Create an Office Aesthetic. ACEMAGICIAN mini pc consumes only 15W compared to a desktop PC, the size is only 5.1cm*13.2cm*13.2cm, which is one-twentieth the size of a desktop PC, mini and compact, taking up no space, perfect for carrying. You can use the VESA mount to place it behind the monitor and become ALL IN ONE, which is nice and aesthetically pleasing. Greatly reduce desktop space, no more showy wires, providing you a clean and unobstructed desktop environment.
AceMagician AM06 Pro Mini PC Highlights
– Compact & Ultra High-efficiency Mini PC
– Powerful processing
– Lightning-fast memory and high-speed storage
– Low energy consumption
– Advanced hardware & software security features
– High-Speed Network
– Triple Display outputs
– Very easy to make memory upgrades.
AceMagician AM06 Pro Mini PC BIOS
The Ami BIOS of AceMagician AM06 Pro Mini PC is pretty rich in features and options. There are 5 tabs in settings, with a few options each: Main, Advanced, Security, Boot, Save & Exit. I have made a BIOS back-up, you can download it from here. I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.
BIOS details
BIOS Vendor: American Megatrends Aptio – AMI
BIOS version: 2.22.1282 / AR5000-MI 0.22 x64
Core version: 5.19
Project Version: 00.22
Firmware ID: 1AXGK022
BIOS Chip Name: Wnbond 25X/Q Series
Build date: 10/26/2022 15:53:45
Processor name: AMD Ryzen 5 5600U with Radeon Graphics
AceMagician AM06 Pro Mini PC Windows 11 Drivers
AceMagician AM06 Pro Mini PC came with Windows 11 Pro 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and untill now everything runs just great. The Windows version was 21H2 Build 2200.2482.
Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Portable Devices, Ports (COM & LPT), Print queues, Processors, Security devices, Software components, Software devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.
I extracted with DoubleDriver the drivers for Windows 11 Pro version 21H2, you can download the archive from here. Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.
About System
Processor: AMD Ryzen 5 5600U (2.3 GHz ~ 4.2 GHz, 16 MB Cache, 6 Cores 12 Threads)
Installed RAM: 16.0 GB (15.7 GB usable)
Storage: 512GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 21H2
Installed on: 9/18/2023
OS build: 22000.2482
AceMagician AM06 Pro Mini PC Ports & Buttons
1 x Power On / Off button
1 x USB Type-C port (data & video)
1 x USB Type-C port (DC port)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI port
1 x DP port
1 x Audio 3.5 mm Jack (HP & Mic)
1 x Mic
2 x 2.5G RJ45 Ethernet port
1 x Internal expansion slot for DIY 2. 5 inch SSD/HDD
1 x Power LED light
1 x Kensington Lock Security Slot
AceMagician AM06 Pro Mini PC Specs
Brand: ACEMAGIC
Model: AM06 Pro
Model number: CMNAM06PBEU1658 / HCAR5000-MI
CPU: AMD Ryzen 5 5600U (2.3 GHz ~ 4.2 GHz, 16 MB Cache, 6 Cores 12 Threads)
GPU: Intel UHD Graphics 24EU (base frequency 1800MHz).
RAM: 16GB DDR4 3200MHz
ROM: 512GB M.2 2280 SSD
Operating System: Windows 11 Pro (64-bit)
WiFi: Dual band 802.11a/b/g/n/ac
Bluetooth: BT4.2.
LAN: 2 x 2.5G Gigabit Ethernet
Storage Expansion options: Install 2.5 inch HDD/SSD, or add SD card.
Video output: HDMI 2.0 + DP + USB Type-C ports
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 19V 3.42A DC 64.98W
Work/Storage Environment: -10°C–45°C，30%–85% Humidity/-20°C–60°C，10%–90% Humidity
Color: Black / Silver / Gray
VESA Support: 70×70 mm / 100×100 mm
OS version: Windows 11 Pro version 21H2 Build 22000.2482
Plug: EU / US / UK / JP
Product code: X001RIZBXN

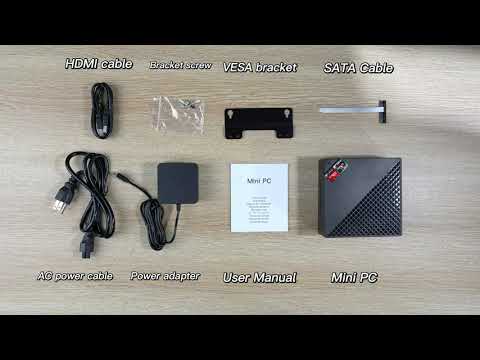

Package Content
1 x AceMagician AM06 Pro Mini PC
1 x Power Adapter model JHD-AD065B-190342BA-A 19V 3.42A DC 64.98W
1 x HDMI cable (80 cm)
1 x Multi-language User Manual (EN / ND / FR / DE / IT / CN / PL / ES / SE)
1 x Monitor mounted bracket
