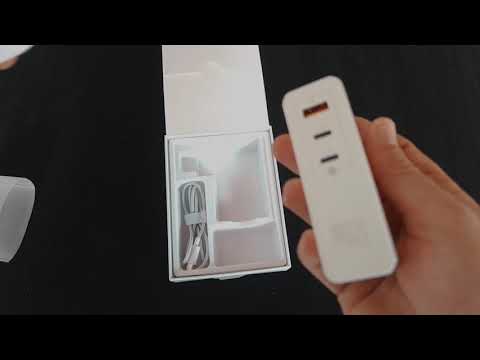

Unboxing Baseus CCGAN1205 GaN Mini Quick Charger C+C+A 120W

Posted in Nov 23, 2020 in Unboxing, no comment

Best Deal Alert! You can buy Baseus CCGAN1205 GaN Mini Quick Charger C+C+A 120W from Amazon.com for only $59.99. Hurry up, limited time offer!

Baseus CCGAN1205

Meet Baseus CCGAN1205 GaN Mini Quick Charger
For decades, “silicon” has been a by-word for high-technology and advanced electronics. Silicon Valley‘s didn‘t get its name for nothing, and few materials have been so widely studied and invested in. However, recently there has been a lot of talk about a new semiconductor that outperforms silicon in almost every way. That material is gallium nitride (GaN), and if you believe the hype, silicon‘s time at the top could be coming to an end.

One of the key attributes of GaN as a semiconductor is its wide band gap of 3.4eV, compared to 1.14eV for silicon. Band gap is a complicated concept to explain, but put simply, such a wide band gap allows GaN to handle much higher voltages and temperatures than silicon. The other key stat is that GaN has 1000 times better electron mobility than silicon, allowing for much faster current flow and greatly reduced heat and energy dissipation (i.e. less waste). Put these two together and you have a material that‘s extremely efficient and highly capable in scenarios that involve a lot of power or heat.

The mostly widely publicized use of GaN in consumer technology is in wall chargers. In many ways, this is an ideal application for this material because it makes full use of its key strengths. A GaN power IC (integrated circuit) is able to handle significantly more power than a silicon power IC of the same size. In practical terms, this means you can have a 60W GaN charger that‘s the same size and weight as a 30W silicon charger.

In recent years, phone charging has been getting much more powerful, with some devices supporting 60W and above through various technologies. The trouble with these ultra-high-powered chargers though is that they can get very, very hot. Aside from being a bit inconvenient and potentially a bit alarming, these hot chargers are also very wasteful. GaN circuitry is much more suitable for high-powered chargers like this, although many of the big players in the industry have been slow to adapt. Not only is GaN much more resilient to high power and temperatures, the faster current flow greatly reduces heat dissipation, meaning the charger is less likely to feel hot to the touch.

When it comes to saving energy in wall chargers, it‘s all about gallium nitride (GaN). Each charger with this chip offers massive improvements in size, weight, and energy efficiency. This means that much less effort is needed to get the current moving, leading to faster current flow and greatly reduced heat and energy waste.

Baseus CCGAN1205 GaN Mini Quick Charger Highlights
– Advanced GaN tech and SiC tech
– 100W USB C Port with Power Delivery
– Dual fast charging PD port
– 4X faster charging
– Universal Compatibility
– Smart power distribution function
– Portable design with foldable pins
Baseus CCGAN1205 GaN Mini Quick Charger Main Features
– Latest GaN-Tech: GaN technology can provide the highest charging speed for many devices. Baseus 120W GaN Charger is compatible with multiple fast charging protocols, Support QC 3.0 iPhone PD 3.0 notebooks including MacBook Pro/Air, the fastest charge for a smartphone or tablet.
– GaN+SiC Tech. GaN+SiC quick charge new technology, increases power, decreases space, charging speed doubles.
– Full Quick Charge Protocol. Support full quick charge protocols including PD3.0, QC4+, QC3.0, SCP, FCP, AFC,etc.
– Three-port Output. Outputs from three ports: two Type-C ports and one USB charging three devices at the same time.
– High-Speed Charging: Baseus 120W GaN charger achieves a maximum output of 120W, charging your devices at the highest speeds. The charging power of the single type-c PD ports can reach 100W providing the fast charging for devices.
– Incredible Compatibility: Equipped with PD & QC charging protocols fast charge your 13″ MacBook Pro, MacBook Air, iPhone 11 / 11 Pro / 11 Pro Max / SE / XS Max / XS / XR / X / 8 Plus, Samsung Galaxy S20+ / S20 / S10+ / S10 / S10e, AirPods Pro, Nintendo Switch, 11″ / 12.9″ iPad Pro, iPad Air (3rd Gen), iPad mini (5th Gen), and more
– Reliable Protection: Built-in safeguards protect your devices against excessive current. Stable and fast charging, No high-temperature fever, Smaller and more portable, Sturdy structure, Work indicator light, Insert stable, foldable rechargeable metal sheet.
– Intelligent Power Allocation. Baseus 120W USB C Charger cleverly distributes 120W of power between 3 devices when charging simultaneously and supports high-speed charging up to 100W when a single USB-C device is connected.
– 100W Power Delivery. USB-C PD charging port powers up your MacBook Pro 15.4” from 0% to 100% in only 2 hours via a Included USB-C to USB-C cable with E-Mark chipset
– High-Speed Charging. USB 3.0 Fast Charging, capable of charging the iPhone 11 Pro and later to 60% in 30 minutes, up to 4X faster than normal USB charger.
– Easy to Carry. Foldable Plug design enough to fit easily in pocket and bag during business trips or vacations, allows you to take it wherever you go.
– 90° Foldable Plug Head. Convenient storage, no need to worry about scratching device.
– Power for Your Most Demanding Devices. Utilizing the advanced technology like GaN and Power Delivery, Baseus provides you a simpler, more focused lifestyle, by bringing the most high-powered devices back to power in a shorter time, so you can keep concentrated on what matters the most.
Baseus CCGAN1205 GaN Mini Quick Charger Compatibility
– Lightning devices: USB-C to Lightning cable required (sold separately): iPhone SE 2020 / 11 / 11 Pro / 11 Pro Max / XS / XS Max / XR / X / 8 Plus / 8 / 7 Plus / 7 / 6 Plus iPad Pro 10.5; iPad Air 3 10.5”; iPad mini 5 7.9” and later models AirPods, AirPods Pro, Apple Watch, Macbook, Macbook Pro, Macbook Air and More.
– USB-C devices:USB-C to USB-C cable required (included): Galaxy S20/S10 / S10+ / S10e /S9 / S9+ / S8 /S8+ Note 20/ Note 20 Ultra/ Note 10+/ Note 10 and More.
Baseus CCGAN1205 GaN Mini Quick Charger Specs
Brand: Baseus
Model: CCGAN1205 / GaN2 Pro Quick Charger 2C1U 120W
Type:  GaN Mini Quick Charger
Color: White
Weight: ≈220g
Size: 94.8mm*54.8mm*29.6mm
Feature: GaN+SiC Tech/Support 2 laptops charge at the same time
Input: AC 100-240V-, 50/60Hz,3.0A
Type-C 1 output: 3.3-20V/5A; 5V/9V/12V/15V-3A;20V/5A Max.
Type-C 2 output: 3.3-20V/5A; 5V/9V/12V/15V-3A;20V/5A Max.
USB A output: 4.5V/5A;5V/4.5A;5V/9V-3A;12V/2.5A;20V/1.5A Max.
Type-C 1+Type-C 2 output: 60W+60W (5V/9V/12V/15V/20V-3A Max.
Type-C1/Type-C2+USB-A output: 87W+30W (Type-C1/Type-C2:5V/9V/12V/15V-3A;20V/4.35A Max.)
Type-C1+Type-C2+USB-A output: 60W+30W+30W
Type-C1 60W:5V/9V/12V/15V/20V-3A Max.
Type-C2 30W:5V/9V-3A; 12V/2.5A;15V/2A;20V/1.5A Max.
​USB-A 30W:4.5V/5A,5V/4.5A;5V/9V-3A;12V/2.5A;20V/1.5A Max.
Total output: 5V/6A Max.
Product code: 6953156222038 / PB2471Z-2
Executive standard: Q/SSCZ 009-2019
Package content

1 x Baseus CCGAN1205 GaN Mini Quick Charger C+C+A 120W
1 x 100W PD Cable 1m
1 x Storage bag
1 x English / Chinese User Manual
1 x 90-Day Money-Back and worry-free LIFE-TIME warranty card
1 x ‘Thank you’ card
1 x Baseus square sticker

Photo gallery full album here. Buy Baseus products from Amazon.com, Banggood, Gearbest, Geekbuying or Tomtop.

Baseus CCGAN1205 Baseus CCGAN1205 Baseus CCGAN1205 Baseus CCGAN1205Baseus CCGAN1205 Baseus CCGAN1205 Baseus CCGAN1205 Baseus CCGAN1205

About Baseus. Founded by CU in 2011, Baseus is a consumer electronic brand under Shenzhen Baseus Technology Co., Limited which integrates research and development, design, production and sales. Baseus is simplified from the brand slogan “Base on user”, which represents that the brand insists on thinking from the perspective of users, and the products are designed with high aesthetic and practical value. 9 years of growth has enabled Baseus to become a leading enterprise in China’s consumer electronics industry, and has always adhered to the design philosophy of design innovation and practical aesthetic, focusing on the new technology and environmentally friendly materials, while integrating fashion elements into product.
