Unboxing Beelink GKmini Windows 10 Mini PC

Posted in Jun 8, 2021 in Unboxing, no comment

Best Deal Alert! You can now buy Beelink GKmini Mini Computer from Bee-link.com or from Amazon.com, Amazon.es, Amazon.de, Amazon.co.uk, Amazon.it, Amazon.fr.

Beelink GKmini

Meet Beelink GKmini Mini PC
Would you like to get a great compact mini-PC, which, due to its size, will significantly save space on the desktop, and it also has very good features? Beelink took care of this request by launching a new model called GKmini Mini PC. This small computer has a powerful Intel Gemini Lake J4125 processor, 8GB LPDDR4 RAM and a SSD installed with 128GB / 256GB / 512GB storage options. The Beelink GKmini Mini PC has a design that reminds us of the Intel NUC models, in the bright top we have the brand logo. On the front we have BIOS CMOS reset button inside a hole, two USB 3.0 ports, 3.5mm audio jack output and Power On / Off button with status LED light. In the back we have the other connectors: LAN Gigabit RJ-45 Ethernet port, another two USB 3.0 ports, two HDMI ports (4k60), DC in port & safety lock. In the lower area we find four rubber feet with the fixing screws of the lid. This mini PC has the option to hang it on a VESA support included and we also have two HDMI cables, one short and one long.

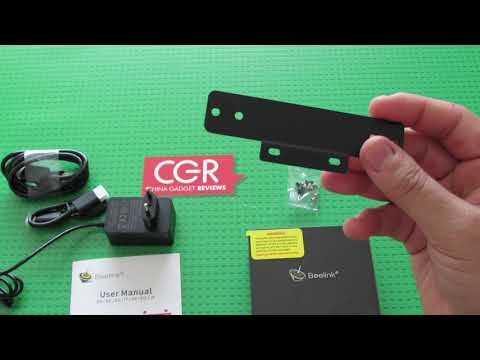

The accessories on the GKmini Mini PC come standard with two HDMI data cables, which can be used in two environments: one is to use the device on the desktop, and the HDMI cable is 80mm. The second is to install the device to the back of the monitor through the bracket, then use the 30mm data cable. This ergonomic design also reflects Beelink mini PC’s customer-centric philosophy.

This minicomputer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBO Go, Youtube 4K – everything works just fine, GKmini Mini PC giving you the ultimate in streaming performance. As we already said, it uses Intel® Gemini Lake Refresh Processor J4125 CPU up to 2.8Ghz, with 4M Cache Support, M.2 SATA SSD 2280 & and SATA HDD. The smaller size expands the scope of application, and the design is still suitable for the office. Two monitors can be connected at the same time. The built-in silent fan is helpful for heat dissipation.

Use Intel UHD graphics 600 integrated graphics card, frequency is 750MHz, support 4K video decoding output, you can watch 4K resolution streaming media video, get high-quality viewing effects. Built-in 2.4G and 5.8G dual-band WIFI and Bluetooth 4.0, connect the network and other devices wirelessly, avoiding complicated cables. Use a silent cooling fan, the active cooling method can ensure that the machine will not overheat. The product has multiple ports that can be used. Equipped with USB 3.0*4, you can connect with different USB peripherals. Dual HDMI video ports connect two monitors to display at the same time. 3.5mm audio port can be connected to your headphones or speaker devices, and Immerse yourself in the world of watching videos. GK mini is very small in size, only 115*102*43mm, and it can be held in one hand. The plastic shell is light, so that you can put it in a travel bag and take it with you on trips. Furthermore, you can use a mounting bracket to attach it to the back of your monitor.

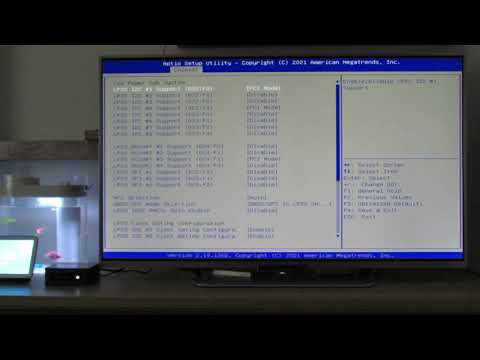

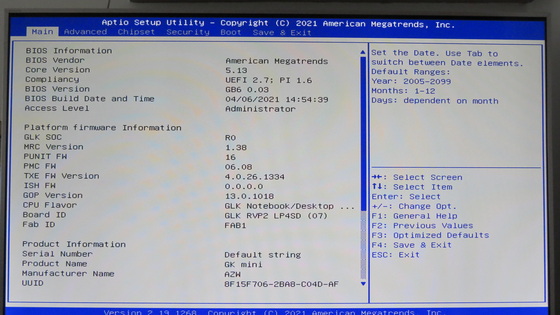

Beelink GKmini Mini PC BIOS
The American Megatrends BIOS of Beelink GKmini Mini PC is very rich in features and options, with many items enabled. There are 6 tabs in settings, with douzins of options each: Main, Advanced, Chipset, Security, Boot, Save & Exit.

I have made a BIOS back-up of Beelink GKmini Mini PC, you can download it from here or here (password: 444392). I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.

BIOS details
Archive name: GKmini BIOS GB6 0.03 version backup file
Archive size: 7.66 MB
Archive content: BIOS back-up file & AfuWin64
Bios file: GKmini BIOS backup file.rom
BIOS Vendor: American Megatrends
Core version: 05.13
BIOS version: GB6 0.03
Version: 2.19.1268
Compliancy: UEFI 2.7; PI 1.6

Beelink GKmini Mini PC Drivers
Beelink GKmini Mini PC came with Windows 10 Pro 64-bit edition version. This version is activated and everything is just ok. All the drivers are correctly installed and untill now everything runs just great. The Windows version was 20H2 Build 19042.662 but I easily updated to version Build 19042.1023.

Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Print queues, Processors, SD host adapters, Security devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.

I extracted with DoubleDriver the drivers for Windows 10 version 20H2, you can download the archive from here or here (password: 782531). Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.

About System
Device name: GK
Processor: Intel(R) Celeron(R) J4125 CPU @ 2.00GHz 2.00 GHz
Graphics: Intel® UHD Graphics 600
Audio: Intel® Smart Sound Technology (Intel® SST) & Intel® Display Audio
Networking: Intel® Dual Band Wireless – AC 3165 & Realtek PCIe GbE Family Controller
Bluetooth: Intel® Wireless Bluetooth®
Installed RAM: 8.00 GB (7.82 GB usable)
Storage: NGFF 2280 256GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 10 Pro
Version: 20H2
Installed on: ‎6/‎7/‎2021
OS build: 19042.1023
Experience: Windows Feature Experience Pack 120.2212.2020.0

Beelink GKmini Mini PC Features
– Fast Mini pc Beelink Gk Mini with Windows 10 Pro os, using Intel processor Gemini Lake J4125 (4-core 4M cache, up to 2.7GHz), its running speed is much faster than j4115, j4105, Z8350, N3450, j3455 chips . Equipped with Intel UHD Graphics 600, you can enjoy 4k @ 60Hz realistic image quality. It is the first choice for office/design work. (Ubuntu fans need to install the operating system by themselves)
– Mini Desktop Computer Equipped 8G DDR4 (up to 2400 MT/s) RAM and 120GB M.2 STAT3 (up to 1000 MB/s) SSD. provides a very smooth experience for your visual home entertainment, streaming video, web browsing, work and games. Say goodbye to system freezing.. In addition, you can add your own SATA HDD (2.5 inch 7 mm) mobile hard drive to expand storage.
– HDMI 2.0 X2 port supports two displays, 4K@60Hz output, suitable for various work scenarios, such as: stocks, checking emails, meetings, home entertainment. Gigabit Ethernet, 2.4G/5G dual-band Wifi, Bluetooth 4.0 can effectively improve your work efficiency.
– I/O specifications: USB 3.0 * 4 ports, Gigabit Ethernet * 1 port, 1 DC jack, HDMI 2.0 * 2 ports and 1 3.5 mm headphone jack (HP and MIC), Come with a wall-mounted holder to allow you to hang mini computer behind monitor.,Saving your desk space and letting you desk look more tidy, Mini PC Support Wake On LAN, PXE Boot, RTC Wake, Auto Power On(get into BIOS interface settings)
– Operating System. The Beelink GKmini MiNI Desktop Computer is Pre-installed with Windows 10 Pro OS. The product obtained FCC, CE ROSH eertifications.

Beelink Beelink GKmini PC Ports
1 x Power On / Off button
1 x CMOS reset button
1 x DC in port
4 x USB 3.0 port
1 x RJ45 1000M Gigabit LAN port
2 x HDMI 1.4 port
1 x Mic headphone Audio Jack
1 x LED light
1 x SATA 2.5 HDD (internal)
1 x M2 SATA 2280 SSD (internal)
1 x VESA support

Beelink GKmini Specs
CPU: Intel Gemini Lake J4125 up to 2.8GHz
GPU: Intel UHD graphics 600
Memory: 8GB SO-DIMM DDR4 2400MHz, Support Extension to 64GB
Storage: 128 GB / 256GB / 512 GB SSD
Expand Storage: Expand Storage: M.2 NVME SSD / M.2 SATA3 SSD / SATA3 HDD 2.5in
WiFi: WiFi IEEE 802.11b/g/n/ac, 2.4GHz + 5.8GHz
Bluetooth: v4.0
LAN: 1000 Mbps Gigabit ethernet
System: Windows 10 Pro 64bit.
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 12V / 2A
Cooling system: Silent Fans,Heat conduction tube
Work/Storage Environment: -10°C–45°C,30%–85% Humidity/-20°C–60°C,10%–90% Humidity
Color: Black
OS version: Windows 10 Pro version 20H2 Build 19042.1023

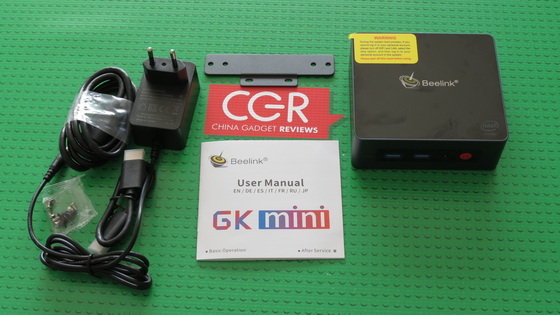

Package Content
1 x Beelink GKmini Mini PC
1 x Power Adapter model KA2401A-1202000EU
1 x Wall mounted bracket
1 x Long HDMI cable (80 cm)
1 x Short HDMI cable (20 cm)
1 x Multi-language User Manual (Basic Operation & After Service – EN / DE / ES / IT / FR / RU / JP)
1 x Hard Disk Installation Guide (English)
1 x 2.5-inch SATA cable adapter (internal)
10 x Screw

Unboxing Photo Album with Hi-Rez images here. Official webpage here. More about Beelink devices here.
