Unboxing Beelink GT-R AMD Ryzen 5 3550H Radeon Vega 8 Graphics Mini PC

Posted in Sep 8, 2020 in Unboxing, no comment

Best Deal Alert! You can now buy Beelink GT-R AMD Ryzen 5 3550H Radeon Vega 8 Graphics Mini PC from Amazon.com, Amazon.ca, BanggoodGeekbuying or Gearbest for a very good price. BTW, Beelink GT-R Pro, the most feature-rich Mini PC is still live @ Indiegogo. Back it up!

Beelink GT-R

Meet Beelink GT-R Mini PC
The Beelink GT-R is equipped with the Ryzen 5 3550H quad-core / eight-thread CPU  which  combines four Zen+ cores (8 threads) clocked at 2.1 – 3.7 GHz with a Radeon RX Vega 8 graphics card with 8 CUs (512 Shaders) clocked at up to 1400 MHz. The integrated Vega 8 GPU can easily handle all four video outputs provided, of which two are HDMI, one is DisplayPort and the other USB-C 3.1 connector that can work as DisplayPort. Port selection also includes six more USB-A 3.0 connectors, a headphone jack and two GbE jacks coupled with Wi-Fi 5. There also is a dual-array mic.

One special feature that is rarely seen on mini PCs is the fingerprint reader placed on the upper lid. With the included software, users can set up fingerprint-secured logins, as well and encrypt important files.

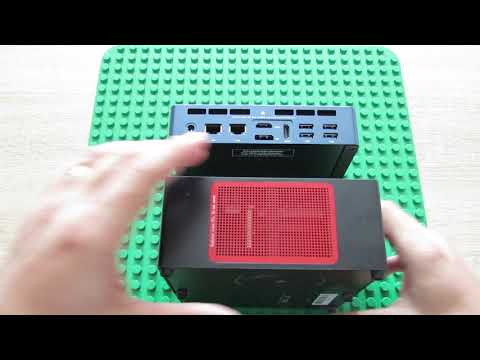

On the front panel, there are two microphones, power button, CLR CMOS button, 2x USB 3.0, headphone jack & USB Type-C. On the rear side we find a DC jack, 2x Gigabit Ethernet, 2x HDMI ports, Display Port and 4x USB 3.0 ports. Beelink GT-R Mini PC supports four displays. The Mini PC has two fans for evacuating hot air, as well as many openings in the housing for ventilation. In addition to the Beelink logo on the top cover, there is a fingerprint reader in the right corner for logging in. The Mini PC runs on Windows 10 out of the box.

Beelink GT-R Mini PC Features
● AMD Ryzen5 3550H CPU, Quad Core. Low-power desktop platform processor, stable and reliable performance, less delay and lag.
● AMD Radeo RX Vega 8 GPU. Better and faster in playing games and watching videos than the previous generation. Meet your requirement for high resolution and give you an enjoyable entertainment experience.
● 16GB DDR4 RAM for Advanced Multitasking. Allow your PC to run at higher speed. It could deal with multiple task and windows easily at the same time.
● 512GB SSD Storage Capacity. Provides enough capacity to store pictures, videos, music and more.
● Good Heat Dissipation Performance. Built-in excellent cooling fan ensures efficient and rapid heat dissipation. Energy saving, environmental protection, and low power consumption.
● Storage Capacity Expansion. Support 128GB – 1TB M.2 SSD / 500GB – 2TB 2.5 inch HDD / 64GB TF card expansion
● Rich interface, support multiple devices connection. Such as: 6 x USB3.0 + 2 x HDMI + 2 x LAN + 1 x DP + 1 x Type-C, etc., which is in line with the connection of most current digital devices
● Work Environment. -10 – 45 Deg C, 30% -. 90% Humidity
● Storage Environment. -20 – 60 Deg C, 10% -. 90% Humidity

Beelink GT-R Mini PC Ports
1 x Power On / Off button
6 x USB 3.0 Port
1 x Type-C USB  Port (Data / Video)
1 x Headphone jack 3.5mm (HP & Mic)
1 x DC in port
2 x HDMI 2.1 connector
2 x RJ45 LAN port (1000 Mbps)
1 x CLR CMOS
2 x Microphone hole
1 x DP port
2 x SATA 3.0 slot (internal)

2 x M.2 2280 slot (internal)
1 x Fingerprint identification sensor
Beelink GT-R Mini PC Specifications
Brand: Beelink
Model: GT-R
Type: Mini PC
System: Windows 10 Pro 64-bit
CPU: AMD Ryzen5 3550H, 4 Cores 8 Threads 2.1Ghz, UP TO 3.7Ghz, Cache 6MB
Instruction Set: 64bit
Lithography: 12nm
Graphics: Radeon™ Vega 8 Graphics 1200 MHz
RAM: 16GB DDR4 ,Up to 32GB(Option)
SSD: 1x 512GB M.2 PCIE 4X SSD, 1x M.2 SATA3 SSD Slot, 1x 1TB 2.5inch SATA3 HDD
WIFI: Wi-Fi CERTIFIED 6 802.11ax
Bluetooth: Bluetooth 5.1
LAN: 1000M
RAM: 16GB DDR4
ROM: 512GB SSD + 1TB HDD
Power Supply: Charge Adapter
HDMI Function: HDCP
Power Consumption.: 15W
RJ45 Port Speed: 1000Mbps
Power Type: External Power Adapter Mode
Power Adapter Input: 100-240V / 50-60Hz
Product weight: 0.7000 kg
Package weight: 1.1000 kg
Product size (L x W x H): 16.80 x 12.00 x 3.90 cm / 6.61 x 4.72 x 1.54 inches
Package size (L x W x H): 20.50 x 14.50 x 7.50 cm / 8.07 x 5.71 x 2.95 inches

Package content

1 x Beelink GT-R Mini PC
1 x Power Adapter model TDX-1903000E
1 x Short HDMI Cable
1 x Long HDMI Cable
1 x Wall-Mounted Bracket
1 x OS Disk (16GB USB Drive) & Instructions for Use
1 x SSD, HDD & DDR4 Memory Installation Guide (English / Chinese)
1 x Multi-language User manual (EN / DE / ES / IT / FR / RU JP)
10 x Screw

Photo gallery full album here. Official website here. More about Beelink devices here.

       Beelink GT-RBeelink GT-R      Beelink GT-RBeelink GT-RBeelink GT-RBeelink GT-R  Beelink GT-RBeelink GT-RBeelink GT-R
