Unboxing Beelink Mini S Intel N5095 8GB RAM 256GB ROM Mini PC
Best Deal Alert! You can now buy Beelink Mini S Intel N5095 8GB RAM 256GB ROM Mini PC from Bee-link.com or from Amazon.com, Amazon.ca, Amazon.co.uk, Amazon.it, Amazon.fr or Aliexpress.com for a very good price. Hurry up, limited time offer and limited stock!
Meet Beelink MINI S
The Beelink MINI S mini PC integrates the extended Intel Celeron N5095 processor. This chip is a Quad Core chip manufactured in 10 nm with processors that reach up to 2.9 GHz and an Intel UHD Graphics GPU with 16 execution units that reaches 750 MHz. A processor and GPU that does not allow us to play demanding 3D titles, but it does allow us to use the device for many other functions. For RAM memory we have 8/16 GB DDR4 with only one RAM slot and includes a 128/256/512 GB capacity M.2 NVMe SSD. It is also possible to increase storage thanks to the presence of a SATA3 port with a bay for 2.5-inch drives.
It’s conveniently-sized, and could easily fit into even the most tightly-packed desktops. It’s also highly versatile, with a range of different ports, mounting options, and configurations available to suit almost every conceivable business need. If you are looking for a small desktop PC that is more than capable for your everyday basics, yet still affordable enough as not to break your bank, the Beelink Mini S is too good of an option to be overlooked.
Beelink MINI S Highlights
– Efficient cooling. Built-in large fan and heat sink
– Compact size, easy to carry. Easy to hang on the back of monitor, let yourr desk more neater.
– Windows 11 Pro. Simple icons, a more simplified taskbar with more new features and good compatibility. There is a new app store to run Android apps.
– Dual screen display. Beelink MINI S integrates Intel® UHD Graphics to deliver powerful graphics processing power. HDMI x 2 support two screen diaplay at 4K@60Hz UHD,you can do more than one task at the same time in need by efficiently.
Beelink MINI S BIOS
The American Megatrends BIOS of Beelink Mini S Mini PC is very rich in features and options, with many items enabled. There are 6 tabs in settings, with douzins of options each: Main, Advanced, Chipset, Security, Boot, Save & Exit.
I have made a BIOS back-up, you can download it from here. I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.
Beelink MINI S Mini PC Drivers
Beelink Mini S Mini PC came with Windows 11 Pro 21H1 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and I could easily updated it to Windows 11 21H2 version Build 22000.778.
Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Print queues, Processors, SD host adapters, Security devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.
If you need the official drivers, you can download all from here (U59_Drivers_WIN10_X64_V0.1_20210713 – 873 MB). The archive content: 1-Chipset, 2-SerialIO, 3-Graphic, 4-ME, 5-DTT, 6-AudioALC255, 7-3165, 8-Lan8111GH & 9-IGCC. I extracted with DoubleDriver the drivers for Windows 11 Pro, you can download the archive from here. Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.
Beelink MINI S Ports
1 x Power On / Off button
1 x CMOS reset button
4 x USB 3.0 port
1 x 3.5mm earphone Jack
1 x RJ45 1000M Gigabit LAN port
2 x HDMI 2.0a 4K@60fps port
1 x DC power port
1 x LED light
Beelink MINI S Specs
CPU: Intel Celeron N5095 4Cores 4Threads, Burst frequency: 2.90 GHz
GPU: Intel UHD Graphics, Graphics Burst Frequency: 750 MHz
Storage: M.2 NVMe SSD 2280, Max 2TB, Optional: 256GB/512GB
RAM: DDR4 Max 16GB Optional: 8GB/16GB
Fan: Powerful cooling fan / Heat sink
Video Support: Simultaneously supports up to two displays / HDMI 2.0 display video output
Audio: 3.5 mm headphone jack Supports multi-channel audio output
Operating System: Windows 11 Pro
Limited Warranty and Service: one-year limited warranty
Adapter: 12V/3A 36W Certification
Input: 100-240V AC, 50/60Hz, Output: 12V 3A
Communications: Wi-Fi: 802.11ac Wi-Fi 5 wireless networking / Bluetooth 4.0 wireless technology

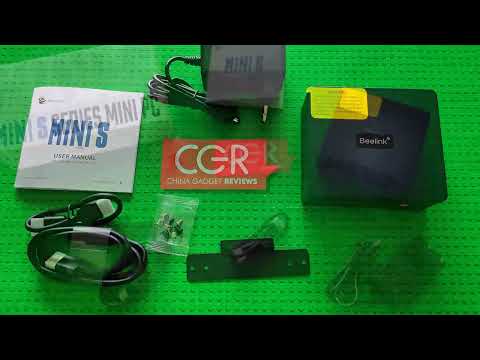

1 x Beelink Mini S Mini PC
1 x Power Adapter model KA3601A-1203000EU
1 x Wall mounted bracket
1 x Long HDMI cable (80 cm)
1 x Short HDMI cable (20 cm)
1 x Multi-language User Manual (Basic Operation & After Service – EN / DE / ES / IT / FR / RU / JP)
1 x 2.5-inch SATA cable adapter (internal)
10 x Screw
