Unboxing Beelink SER3 AMD Ryzen 7 3750H Windows 10 Pro Mini PC
Best Deal Alert! You can now buy Beelink SER3 AMD Ryzen 7 3750H 16GB RAM 512 ROM from Bee-link.com or from Amazon.com, Amazon.ca, Amazon.de, Amazon.co.uk, Amazon.it, Amazon.fr or you can buy Beelink SER3 AMD Ryzen 7 3750H 8GB RAM 256 ROM from Bee-link.com or from Amazon.com, Amazon.ca or Amazon.it.
Meet Beelink SER3 Mini PC
Would you like to get a great compact mini-PC, which, due to its size, will significantly save space on the desktop, and it also has very good features? Beelink took care of this request by launching a new model called SER3 Mini PC. This small computer has a powerful AMD Ryzen 7 3750H processor, 8GB or 16GB LPDDR4 RAM and a SSD installed with 256GB / 512GB storage options and a metal case. The Beelink SER3 Mini PC has a design that reminds us of the Intel NUC models, in the bright top we have the brand logos. On the front we have BIOS CMOS reset button inside a hole, two USB 3.0 ports, an USB Type-C port, 3.5mm audio jack output and Power On / Off button with status LED light. In the back we have the other connectors: LAN Gigabit RJ-45 Ethernet port, another two USB 3.0 ports, two HDMI ports (4k HD) & DC in port. In the lower area we find two rubber strips with four fixing screws of the lid. This mini PC has the option to hang it on a VESA support included and we also have two HDMI cables, one short and one long.
The accessories on the SER Mini PC come standard with two HDMI data cables, which can be used in two environments: one is to use the device on the desktop, and the HDMI cable is 80mm. The second is to install the device to the back of the monitor through the bracket, then use the 30mm data cable. This ergonomic design also reflects Beelink mini PC’s customer-centric philosophy.
This minicomputer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBO Go, Youtube 4K – everything works just fine, SER3 Mini PC giving you the ultimate in streaming performance. As we already said, it uses AMD Ryzen 7 3750H 2.3-4GHz, with 4 cores and 8 threads. The smaller size expands the scope of application, and the design is still suitable for the office. Two monitors can be connected at the same time. The built-in silent fan and the metal case are helpful for heat dissipation.
Using Radeon RX Vega 10 Graphics card, frequency is 1400 MHz, supporting 4K video decoding output, you can watch 4K resolution streaming media video, get high-quality viewing effects. Built-in 2.4G and 5.8G dual-band WIFI and Bluetooth 4.0, connect the network and other devices wirelessly, avoiding complicated cables. Use a metalic case and a silent cooling fan, the active cooling method can ensure that the machine will not overheat. The product has multiple ports that can be used. Equipped with USB 3.0*4, you can connect with different USB peripherals. Dual HDMI video ports connect two monitors to display at the same time. 3.5mm audio port can be connected to your headphones or speaker devices, and Immerse yourself in the world of watching videos. SER3 is very small in size, only 126*113*40mm , and it can be held in one hand. The metalic shell is great, so that you can put it in a travel bag and take it with you on trips. Furthermore, you can use a mounting bracket to attach it to the back of your monitor.
With nearly best large fan and dual heat dissipation pipe compared with similar products, SER3 can always operate like a efficient powerhouse with stable and low temperature. Actually, this will greatly improve the life span and running fluency of the machine definitely. Metal Material shell helps dissipate heat effectively, which is great for energy-saving and better performance. The design of fan and heat dissipation holes can dissipate heat quickly when you play game, which will protect the mini PC.
SER3 is in such a small size like a water drop, but designed to be elegant, light and portable. You can easily put it into your briefcase as you want. However, little body, but with speed and power beyond anything you ever imagine, with hope from the designer to create more glory for customers. Helps you relax in gentle love story movie or keep your mind clear in gunfight movie by the unbelievable high definition video and vivid voice.
The stable working and low power consumption of this machine will deliver your bright ideas by strongly eye attracting photos and clear writing of words within whole day.
Beelink SER3 PC BIOS
The American Megatrends BIOS of Beelink GKmini Mini PC is very rich in features and options, with many items enabled. There are 6 tabs in settings, with douzins of options each: Main, Advanced, Chipset, Security, Boot, Save & Exit.
Beelink SER3 Mini PC Drivers
Beelink SER3 Mini PC came with Windows 10 Pro 21H1 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and I could easily updated it to Windows 11 21H2 version Build 22000.348.
Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Print queues, Processors, SD host adapters, Security devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.
If you need the official drivers, you can download all from (SER_driver_win10X64_v1.0_20210903 – 522 MB). The archive content: AMD_Chipset_Software_win10_2.17.25.506.exe, radeon-software-adrenalin-2020-21.6.1-win10-64bit-june28.exe, 4-WifiAC7265 & 3-Lan8111G.
About System
Device name: SER3
Processor: AMD Ryzen 7 3750H
Graphics: Radeon Vega Mobile Gfx
Audio: AMD High Definition Audio, AMD Streaming Audio Device, High Definition Audio Device
Networking: Intel® Dual Band Wireless – AC 7265 & Realtek PCIe GbE Family Controller
Bluetooth: Intel® Wireless Bluetooth®
Installed RAM: 16.00 GB (13.9 GB usable)
Storage: GSDFN512TS3F1OGCX 521GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 21H2
Installed on: 6/12/2021
OS build: 22000.348
Experience: Windows Feature Experience Pack 1000.22000.348.0
Beelink SER3 Mini PC Features
– Powerful Processor & Operating System. Powered with Ryzen 7 3750H CPU (4C/8T up to 4.0Ghz) , which can turns your desk into a powerful workstation just by adding a keyboard, mouse. Pre-installed with Windows 10 Pro 64-Bit without any bloatware, the newest windows 11 is also compatible. Support Gaming recommendation: Dota 2, Team fortress, League of Legends, NEW World, Apex legends.
– Compact & Rich Interface. Easy to setup and small in size. Beelink SER mini computer is equipped with 1x type-C, 2 x HDMI, 4x USB 3.0, 1x Gigabit Ethernet, 3.5mm Audio Jack. Supports wifi, Gigabit Ethernet RJ45 network connectivity, bluetooth 4.0, Metal frame and fan design also help this mini pc work better and efficient heat dissipation.
– Triple Display Output & Radeon Vega 10 Graphics. Three 4K@60Hz display output via dual HDMI, and type-C, which enable you to multi-task easily, stream 4K video playback, web surfing, business office, and light games. They can Do-it-all desktop into another dimension.

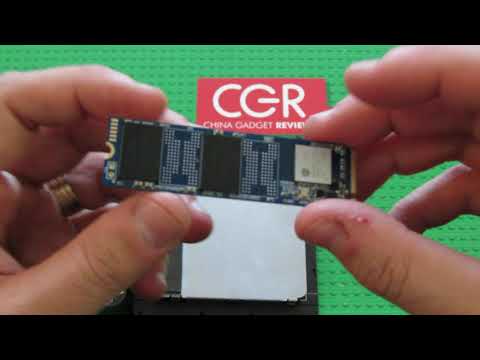

– Large Storage & Expandable Capacity. Installed with dual channel DDR4 16GB RAM, 2 accessible memory slots upgradable to 64 GB( 2 x 32 GB). 512GB M.2 PCIe SSD. You can expand the storage via a 2.5 inch HDD/SSD, M.2 2280 NVMe for your needs.
– Certification & Reliable Support Service. All of Beelink Mini PCS obtained with FCC, CE, RoHS certification. All have passed strict inspection before shipping. If you have any questions, Please don’t hesitate to contact us. We offer lifetime technical support, 1-year worry-free warranty and 24 hours customer service.
– HDMI 2.0 X2 port supports two displays, 4K HD output, suitable for various work scenarios, such as: stocks, checking emails, meetings, home entertainment. Gigabit Ethernet, 2.4G/5G dual-band Wifi, Bluetooth 4.0 can effectively improve your work efficiency.
– Operating System. The Beelink GKmini MiNI Desktop Computer is Pre-installed with Windows 10 Pro OS, easily updated to Windows 11 Pro. The product obtained FCC, CE ROSH eertifications.
Beelink Beelink SER3 PC Ports
1 x Power On / Off button
1 x CMOS reset button
1 x DC in port
1 x USB Type-C port
4 x USB 3.0 port
1 x RJ45 1000M Gigabit LAN port
2 x HDMI 1.4 port
1 x Mic headphone Audio Jack
1 x LED light
1 x SATA 2.5 HDD (internal – Support expanded up to 2TB 2.5” HDD)
1 x free SODIMM Slot (internal, 2 in total, up to 2*32GB)
1 x VESA support
Beelink SER3 Mini PC Specs
CPU: AMD Ryzen 7 3750H 2.3-4GHz, 4cores 8threads, cache L1 384KB L2 2MB L3 4MB ( better than intel i7 4790)
GPU: Radeon RX Vega 10 Graphics 1400 MHz
Memory: 8 / 16 GB SO-DIMM DDR4 2400MHz, Support Extension up to 64GB
Storage: 256GB / 512 GB SSD
Expand Storage: 128GB / 256GB / 512GB (M.2 NVMe SSD, expandable to 2TB, 1900Mb/s)
WiFi: WiFi IEEE 802.11b/g/n/ac, 2.4GHz + 5.8GHz
Bluetooth: v4.0
LAN: 1000 Mbps Gigabit ethernet
Three screen display: HDMI*2 + USB-C*1 + Support 4k 60 Hz
System: Windows 10 Pro 64bit activated, easily updated to Windows 11 Pro. Ubuntu compatible.
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 19V / 32A
Adapter: 19V-3A 57W Certification + Input: 100-240V AC, 50/60Hz
Cooling system： Full metal case, Dual heat pipe and quiet large fan
Work/Storage Environment: -10°C–45°C，30%–85% Humidity/-20°C–60°C，10%–90% Humidity
Additional function: RTC / Wake on LAN / Auto Power on (BIOS settings)
Suitable Working software recommendation: AI, PS, CAD, Office, PR, Keyshot, etc.
Suitable Gaming recommendation: Dota 2, Team fortress, League of Legends, NEW World, Apex legends.
Color: Black
Dimension: 126*113*40mm
Package Content
1 x Beelink SER3 Mini PC
1 x Power Adapter model TDX-1903000E

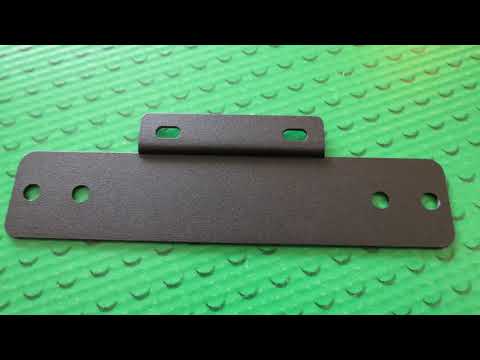

1 x Wall mounted bracket
1 x Long HDMI cable (80 cm)
1 x Short HDMI cable (20 cm)
1 x Multi-language User Manual (Basic Operation & After Service – EN / DE / ES / IT / FR / RU / JP)
1 x 2.5-inch SATA cable adapter (internal)
10 x Screw
About Beelink. Beelink was established in 2014 in Shenzhen, China Futian, specializing in home entertainment equipment (DONGLE, BOX, remote control, game consoles, home cloud, one machine, MINI PC) product definition,development, production and sales. Our company own brand as “Beelink”. R & D The company has more than 20 front-line researchers, from the hardware circuitry, wiring, commissioning. into the upper layer driver and software application functionality implemented. BeeLink Brand philosophy: through management innovation, technological innovation and market innovation, and worldwide partners and customers to establish long-term stable cooperative relations, Andrews micro and you win the future.
