Unboxing Beelink U59 Intel Celeron N5095 Mini PC
Best Deal Alert! You can now buy Beelink U59 Intel Celeron N5095 Mini PC from or from Amazon.com, Amazon.ca, Amazon.de, Amazon.co.uk, Amazon.it, Amazon.fr, , or Geekbuying.com for a very good price. Hurry up, limited time offer and limitred stock!
Meet Beelink U59 Mini PC
Beelink Mini PC is Equipped with 11th Gen Intel Processor(4 Cores 4 Threads, 4M Cache, Up to 2.9GHz), Using 10nm Lithography Process. The Mini Computer’s Smart Size Is Only 124 x 113 x 42mm/Weight 322g, That Is Compact But Powerful in True Sense. U59 Mini PC Pre-installed Windows 10 Pro 64-bit System(Available for Windows 11 Upgrading) Can Satisfy Your Diverse Scenarios’ Use Such As Entertainment, Games, Office and Education Industry, etc. Beelink U59 Mini PC Comes with 2 HDMI ports (4K@60Hz dual-screen display) and 1 Type-c Port (Can Only be Directly Connected with Monitors), Available for Triple Screens Display, Support 4K Ultra-high Definition Output, Four Times than1080P on Resolution, Which Can Bring You Unimaginable Visual Enjoyment.
U59 Mini Computer Equipped with Two Memory Slots and the Total Capacity Is 16GB RAM DDR4 (Max 2933Mhz). Also, You Can Expand the Storage with M.2 SATA SSD 2280 /Nvme SSD Interface Upgrade to 2TB (not included) or Via 2.5-inch SATA HDD Up to 2TB (not included). Tip: Built-in FPC Cable Works for Expanding the Hard Disk Memory.
This Mini Computers Has the Latest Wireless Connection: WiFi 5 (802.11ax), the Transmission Speed is Up to 2400Mbps, While the Delay is Reduced by About 75% And Supports Bluetooth 4.2. It has Rich Ports, 2x HDMI(4k@60Hz), 2x USB 3.0, 1x RJ45 Port(1000Mbps), 1x Type-C, 1x DC(12V-3A) and 1x Audio Jack. U59 Mini PC Uses a Combination of Big Fan + Radiator to Cool Down the Machine, Perfectly Achieving the Advantages of No Noise, Efficient Heat Dissipation, and Energy Saving. What’s In Box: 1x Beelink U59 Mini PC, 2x HDMI Cables(20cm & 100cm), 1x Power Adapter, 1x FPC HDD Cable(Inside the Mini PC), 1x Mounting Bracket, 1× Stainless Steel Screw Pack, 1x User Manual.
Beelink U59 is in such a small size like a water drop, but designed to be elegant, light and portable. You can easily put it into your briefcase as you want. However, little body, but with speed and power beyond anything you ever imagine, with hope from the designer to create more glory for customers. Helps you relax in gentle love story movie or keep your mind clear in gunfight movie by the unbelievable high definition video and vivid voice.
The stable working and low power consumption of this machine will deliver your bright ideas by strongly eye attracting photos and clear writing of words within whole day.

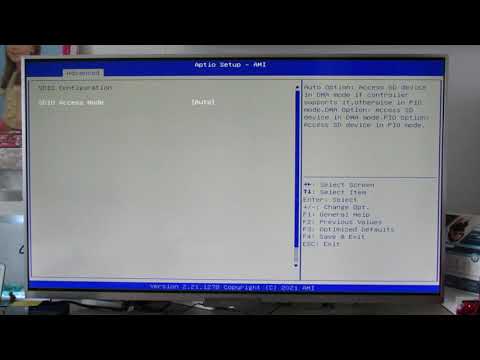

Beelink U59 Mini PC BIOS
The American Megatrends BIOS of Beelink GKmini Mini PC is very rich in features and options, with many items enabled. There are 6 tabs in settings, with douzins of options each: Main, Advanced, Chipset, Security, Boot, Save & Exit.

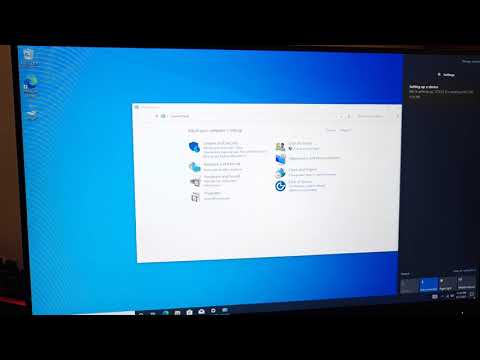

Beelink U59 Mini PC Drivers
Beelink U59 Mini PC came with Windows 10 Pro 21H1 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and I could easily updated it to Windows 11 21H2 version Build 22000.348.
Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Print queues, Processors, SD host adapters, Security devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.
If you need the official drivers, you can download all from here (U59_Drivers_WIN10_X64_V0.1_20210713 – 873 MB). The archive content: 1-Chipset, 2-SerialIO, 3-Graphic, 4-ME, 5-DTT, 6-AudioALC255, 7-3165, 8-Lan8111GH & 9-IGCC.
About System
Device name: U59
Processor: Intel R) Celeron(R) N5095 @ 2.00GHz 2.00 GHz
Graphics: Intel UHD Graphics
Audio: Realtek High Definition Audio
Networking: Intel® Dual Band Wireless – AC 3165 & Realtek PCIe GbE Family Controller
Bluetooth: Intel® Wireless Bluetooth®
Installed RAM: 16.00 GB (15.8 GB usable)
Storage: NGFF 2280 512GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 21H2
Installed on: 8/12/2021
OS build: 22000.348
Experience: Windows Feature Experience Pack 1000.22000.348.0
Beelink U59 Mini PC Features
– Compact size & incredible performance. U59 Mini PC is about 4.88*4.44*1.65 inch, allowing you to take it anywhere you go. Equipped with 11th Gen processor (4C/4T, 4M Cache, 2.0 GHz, up to 2.9 GHz), pre-installed with Windows 10 Pro. The compact size makes the mini pc a top choice for your light OFFICE work, such as AI, PS, CAD, Office, PR, Keyshot.
– UHD Graphics & Dual HDMI, WIFI. U59 Mini Desktop Computer has equipped with UHD Graphics supporting 4k video playback and web surfing. Dual HDMI allows you to connect two monitors at the same time. It supports 802.11 b/g/n/ac, 2.4+5G wifi and 1000M LAN ensuring the net speed and performance.
– Storage Expansion Option & Efficient Heat Dissipation. Beelink U59 Mini Desktop PC has built-in 8GB DDR, 256GB M.2 SSD (Support up to 2TB of 2.5-inch SATA3 HDD /M.2 SATA3 SSD 2280, not included). It has combined with a quiet large fan, energy-saving, and low power consumption, suitable greatly for you OFFICE woking.
– I/O Specifications & Accessories. The Mini Computer is designed with 2*HDMI ports, 4*USB 3.0 ports, 1*type-c port, 1*Gigabit Ethernet port. It also comes with 1 power adapter, 2*HDMI cables, 1*VESA Mount. Just add a keyboard, mouse, and up to two displays, you can turn any desk into a powerful workstation.
Beelink U59 Mini PC Ports
1 x Power On / Off button
1 x CLR CMOS reset button
1 x DC in port
1 x USB Type-C port
4 x USB 3.0 port
1 x RJ45 1000M Gigabit LAN port
2 x HDMI 1.4 port
1 x Mic headphone Audio Jack
1 x LED light
1 x SATA 2.5 HDD (internal – Support expanded up to 2TB 2.5” HDD)
1 x M.2 SATA SSD 2280
1 x VESA support
Beelink U59 Mini PC Specs
Brand: Beelink
Model: U59
Type: Windows Mini PC
CPU: Intel® 11th Generation Jasper Lake Processor N5095 (4C/4T, 4M Cache, 2.0GHz up to 2.9GHz)
GPU: Intel® UHD Graphics
RAM: DDR4 16G 2933MHz
ROM: 512G SSD 500MB/S
System: Windows 10 Pro 64bit activated, easily updated to Windows 11 Pro. Ubuntu compatible.
Bluetooth: v4.0
Ethernet: RJ45 1000M LAN
WiFi: 802.11 b/g/n/ac
Internal Connectors: 1 x M.2 SATA SSD 2280 slot + 1 x SATA HDD (2.5inch 7mm)
Features: 4K@60fps HD dual display, Quiet large fan and radiator
Additional functions: WOL / Auto Power On
Input: 100-240V AC, 50/60Hz
Output: 12V / 3A
Power: 36W
WiFi Chip: Intel 3165
HDMI Version: 1.4
HDMI Function: HDCP
Power Consumption.: Standby: less than 0.5W / Normal: less than 12W
Decoder Format: H.263
Video format: 4K
Audio format: AAC
Photo Format: GIF
Support 5.1 Surround Sound Output: Yes
Work Environment: -10°C–45°C，30%–90% Humidity
Storage Environment: -20°C–60°C，10%–90% Humidity
Color: Black
Product weight: 0.2610 kg
Package weight: 0.8050 kg
Product size (L x W x H): 12.40 x 13.00 x 4.10 cm / 4.88 x 5.12 x 1.61 inches
Package size (L x W x H): 20.90 x 13.60 x 6.20 cm / 8.23 x 5.35 x 2.44 inches
Package Content
1 x Beelink U59 Intel Celeron N5095 Mini PC
1 x Power Adapter model KA3601A-1203000BS
1 x Wall mounted bracket
1 x Long HDMI cable (80 cm)
1 x Short HDMI cable (20 cm)
1 x Multi-language User Manual (Basic Operation & After Service – EN / DE / ES / IT / FR / RU / JP)
1 x 2.5-inch SATA cable adapter (internal)
10 x Screw
About Beelink. Beelink was established in 2014 in Shenzhen, China Futian, specializing in home entertainment equipment (DONGLE, BOX, remote control, game consoles, home cloud, one machine, MINI PC) product definition,development, production and sales. Our company own brand as “Beelink”. R & D The company has more than 20 front-line researchers, from the hardware circuitry, wiring, commissioning. into the upper layer driver and software application functionality implemented. BeeLink Brand philosophy: through management innovation, technological innovation and market innovation, and worldwide partners and customers to establish long-term stable cooperative relations, Andrews micro and you win the future.
For those unfamiliar with Beelink products, you can visit the Beelink website to view detail information:
Beelink official website: www.bee-link.com
Beelink order: azw.en.alibaba.com
