Unboxing EZCast Beam H3 HD LED Projector, Perfect for Home Education

Best Deal Alert! You can buy EZCast Beam V3 HD LED Projector from Amazon.com or Store.ezcast.com for a very good price. Hurry up, limited time offer!

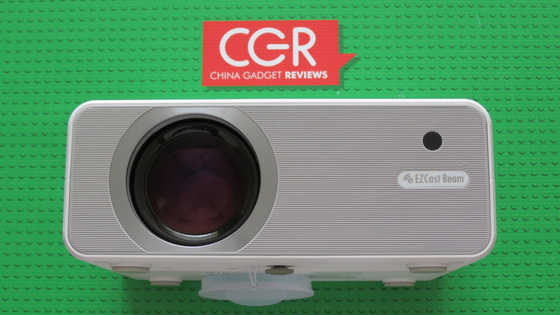

Meet EZCast Beam H3 HD LED Projector
EZCast Beam H3 is the latest LCD projector that supports a USB-C interface, auto keystone, and portrait projection, which perfectly works with the latest mobile phones, tablets, and laptops for your working and leisure. Simply plug in an EZCast Wi-Fi adapter and it’s ready to screen mirror wirelessly from all popular OS devices. Alternatively plug and screen mirror with a charging cable to immerse yourself in high-quality projection. It can function both as a Bluetooth speaker and a versatile home projector you can easily fall in love with.

Beam H3 is compact and fits anywhere, so setting up a screening at any location is easy. There’s no need to keep moving and adjusting the projector, because the Beam H3’s 2D keystone feature corrects dimensions to project a perfect image from any angle, so you can easily find the right location for your projection. For ultimate flexibility in any environment, you have a choice of cable and WiFi connections to connect the Beam H3 to your image and video source devices. Dual-band 2.4G/5G lets you enjoy faster and more stable streaming. You can even plug a TV stick into Beam H3 to project your favorite contents wirelessly.

EZCast’s Beam H3 delivers powerful, crystal clear sound wherever you put it and however you use it. Experience better sound while watching a video with the powerful 5-watt speaker. This audio clarity is also great for kids doing home learning. Beam H3 is also equipped with HDMI, USB, USB-C port, a 3.5mm audio jack, micro SD card, and WiFi adapter sockets, to meet all your entertainment needs.

EZCast Beam H3 HD LED Projector Highlights
– 1080P native and up to 150 inches display supported
– Plug and play screen mirroring
– Portrait mode to provide the best image no matter which way the smartphone tilts
– Supports standard mobile charging cables and HDMI cables
– Supports USB, USB-C, HDMI, card reader, and 3.5 mm audio interfaces
– Comes with a dual-band 2.4 GHz/5 GHz Wi-Fi adapter to support wireless screen mirroring
– Supports 30000+ hours long lamp life
– Miracast, Google Home, AirPlay, DLNA, and YouTube TV support
– EZCast app and EZChannel video-streaming experience
– The 2D keystone to project perfect images from any angle

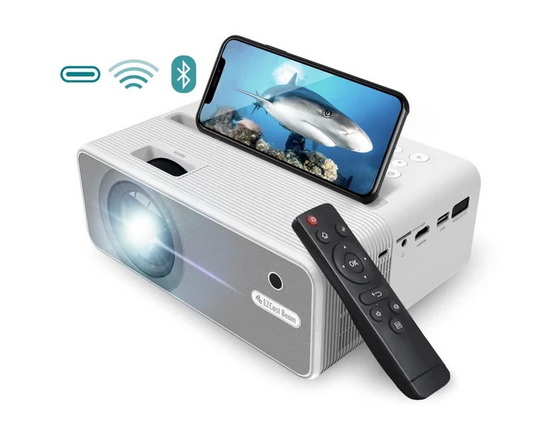

– Grooved chassis that functions as a smartphone stand
– Works as a powerful Bluetooth Speaker: Enhanced with a strong 5W speaker, it delivers better sound quality than normal projector

EZCast Beam H3 HD LED Projector Features
– Great for working at home. EZCast Beam H3’s 1080P native resolution projector has a bright and vibrant projection that makes your presentation stand out but also very suitable for watching movies. Beam H3 is fully compatible with YouTube TV and can stream live TV from 85+ channels that YouTube TV offers. The portrait mode projection also makes it easy to watch short-form vertical stories from TikTok.
– 2 best ways to watch. Besides the horizontal projection, the innovative portrait mode lets you well project upright images and mobile phone’s content with full screen.
– Free WiFi adapter included, 5Ghz support. A projector for both work and leisure, outdoor and indoor projections. Supports cable and 5GHz / 2.4GHz WiFi connection. With 250 Lumens brightness which is equivalent to 10600 Lumens performance, Beam H3 can project up to 150” and is able to create sharp and clear images for your business presentation, patio movie night, home theater, and games.
– Multiple device connectivity. Beam H3 projector supports both cable and wireless connections you need, including USB A, USB C, HDMI, Bluetooth, Airplay, Miracast, DLNA, Micro SD card. Compatible with iOS and Android smartphones, Tablets, TV sticks, PS5, X-Box, Switch, laptop.
– Built-in powerful Bluetooth speaker. Integrated with a strong 5W speaker, Beam H3 gives you the ultimate audio experience. 5W audio drivers generate cinematic stereo sound and allow you to hear every detail.
– Gone wireless to the fullest. No matter which OS device you use, amazing wireless projection experience with EZCast Wi-Fi adapter.
– Fulfilling your entertainment needs. H3 is a versatile home projector equipped with HDMI and USB port, 3.5mm audio jack, micro SD card and WiFi adapter sockets, to meet diversified entertainment needs.
– Cross-platform screen mirroring support. Supports projection from all the major OS, as well as card readers and HDMI-enabled gaming consoles.
– Enjoy OTA updates. Beam H3 comes with a 12-month warranty and lifetime professional technical support. Beam H3 supports automatically OTA upgrade when it connects to the WiFi, and allows you to enjoy the latest features, which ensures Beam H3 never becomes outdated.
– USB-C and HDMI Connectivity. Beam H3 features USB-C and HDMI ports to provide maximum compatibility with external devices, as well as card readers and HDMI-enabled gaming consoles such as Nintendo Switch, PS5, Xbox AND with all popular TV sticks such as Amazon Fire TV stick and Roku, which supports Netflix, amazon prime video, Hulu, etc.
– Cable and Wireless Projection. Compatible in both wired and wireless interfaces to support all popular OS devices.
– Project Perfectly From Any Angle. With auto 2D keystone, you can easily find the right location for your projection.

EZCast Beam H3 HD LED Projector Specs
Brand: EZCast
Model: Beam H3
Type:  HD LED Projector
Projection technology: LCD
Brightness: 200 ANSI lumens
Contrast: 1000:1
Output resolution: 1080P/1080P
Input resolution: 1080P/1080P
Light source: LED
LED lumens: 10,600 lumens
LED life: >30,000 hours
Throw ratio: 1.3:1
Focus: Manual
Throw distance: 1-4.4m
Screen size: 35-155 inches
Aspect ratio: 16:9
Input interface: USB-C / USB / HDMI / microSD
Wi-Fi: Wi-Fi Adapter 2.4G / 5G
Bluetooth: v4.1 + HS
Keystone: 2D electrical correction
Power Input: 100-240V 50/60 Hz
Power output: 19V / 3.42A
Speaker: 1 x 5W
Operating system: EZCast Multimedia Center
Language supporty: 22 countries
Dimensions: 230 x 168.5 x 90 mm
Weight: 1,200g
Color: White
Firmware version: version 1.24537.20210512

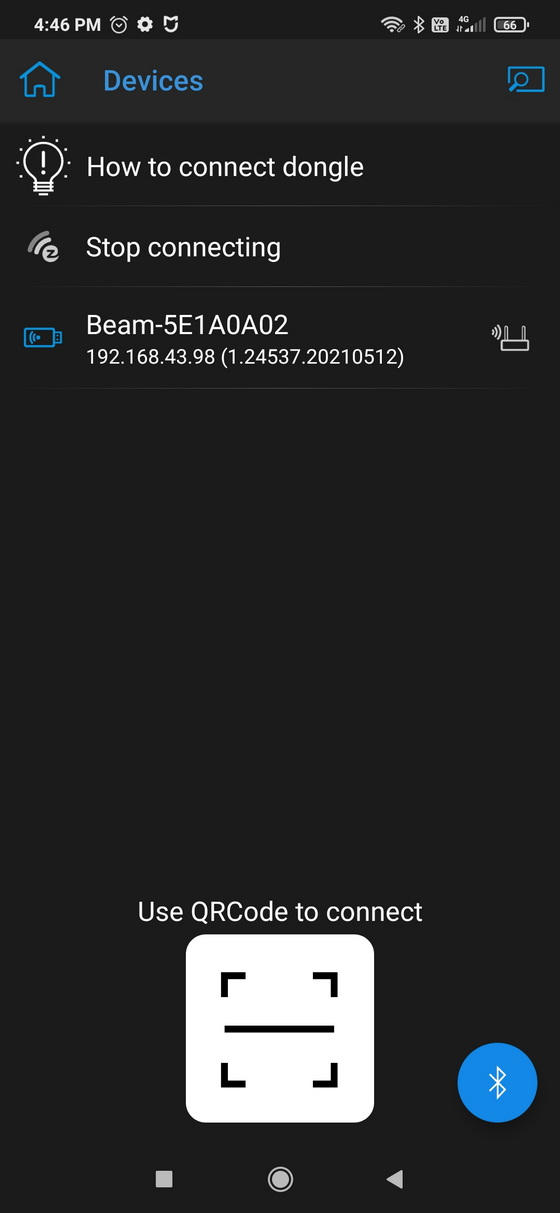

Ezcast Android application
EZCast app will help you cast any smartphone and laptop screen to an HDTV or a projector using EZCast’s wireless or connected display solutions.

1. Faster Wi-Fi Setup – Supports Wi-Fi setup by scanning QRCode or using Bluetooth.
2. Create Your Own Video Playlists – Use EZChannel to watch videos across YouTube, Facebook and more, and add your favorite videos into your playlists.
3. Share Cherished Moments – Re-live best moments with family photos on the big screen.
4. Immersive Viewing Experience – Play mobile videos on a big screen for the best viewing experience.
5. Bigger and Clearer Web Browsing Experience – Browse the internet on a big screen.
6. Supports Chromecast – Supports casting to your favorite wireless display receivers, including EZCast and Chromecast.

Download Ezcast Android application v2.14.0.1273 for free from Google Play Store. Download Ezcast application for all platforms from here.

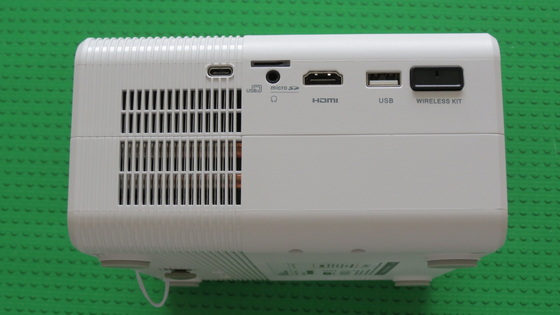

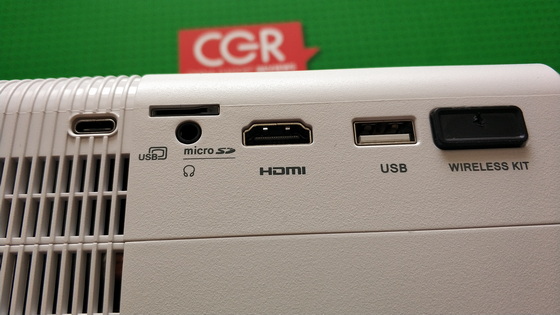

EZCast Beam H3 HD LED Projector Ports
1 x DC power port
1 x Wireless Kit adapter socket
1 x USB 2.0 full size
1 x HDMI input
1 x Micro SD card slot
1 x USB Type-C slot
1 x 3.5mm audio jack output
1 x IR remote sensor receiver
1 x Lens
1 x Manual Focus Ring
1 x Mobile stand

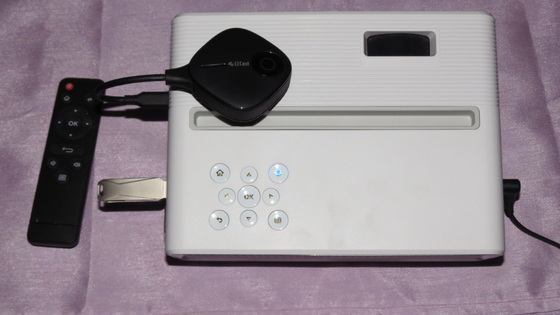

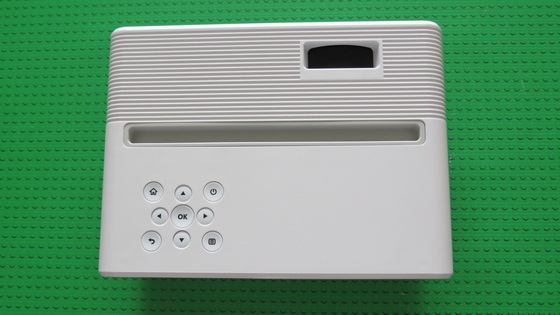

1 x Control Panel buttons
1 x Stand

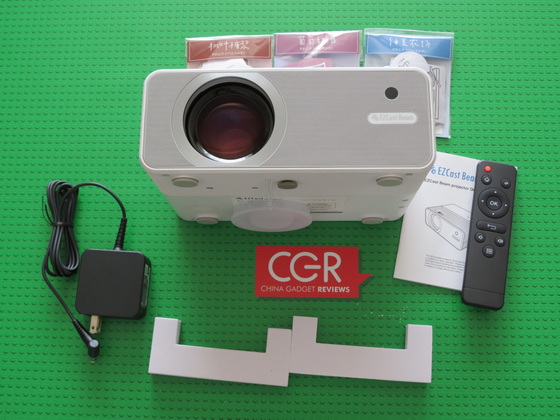

Package content
1 x EZCast Beam H3 HD LED Projector
1 x Power Adapter model ADP-65DW Y
1 x IR Remote Control
1 x WiFi Adapter model EZC-5201BS
1 x English / Chinese Quick Start Guide
2 x Holders

EZCast Beam H3 HD LED Projector Preparation
1. Plug the power to the projector, and the power button will light up.
2. Insert the wireless adapter into the wireless kit port of the projector.
3. To turn on projector, hold the power button of the projector for 3 seconds till you hear the “beep” sound and the light will turn blue.
4. Adjust focus ring until the projection image is clear and focused.

Projector stand and holders
1. Normal mode: When projecting forward, adjust elevation angel by loosening the projector stand under the projector. When projecting upward, use the holders to avoid blockage of ventilation.
2. Portrait mode: Equip the projector holders at the bottom to make sure the ventilation works well.

First time settings
1. Select the start-up language.
2. Wi-Fi setting: connect the projector to your router and enter the password.

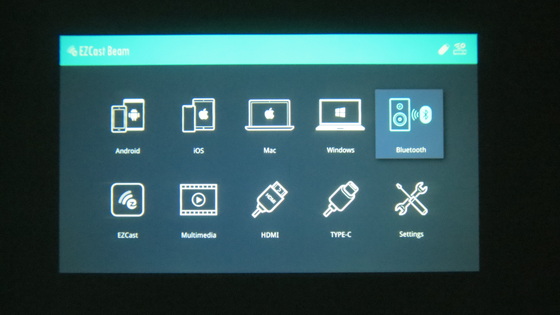

3. After starting up, enter the main menu and select the functions by arrow keys on the projector or remote control: Android, iOS, MacOS, Windows, bluetooth, EZCast, Multimedia, HDMI, and Setting.

Power off:
1. Sleeping mode: press the power button and hear the “beep” sound with the power button still blue.
2. Power off: hold the power button for 3 seconds till you hear the “beep” sound twice, and the power button turns red.

Multimedia playback
1. Insert a USB flash drive into USB1 port or insert SD Card to SD Card slot on the projector.
2. Select the “Multimedia”>>”USB Disk” or “SD card”>>”Video”, “Music” or “Photo” to enter the file folder.
3. Select the file to play with the up and down arrow keys, and press “OK” to confirm.
4. When playing media, press “OK” to see the menu, and select item by the left and right keys.
5. Support format: video, audio, and image.

1. Wi-Fi setting : Select the “Wi-Fi setting” menu and enter the Wi-Fi setting interface, select the “Internet”, press “OK” key to confirm, and select the router from AP list and enter the password.
2. Display mode: Swtich standard/ ECO/ bright mode.
3. Portrait mode: Switch on to project vertically. Please make sure NOT to block the ventilation.
4. V.Keystone: Automatic vertical keystone adjustment up to ±25 degrees.
5. H. Keystone: Manually adjust horizontal keystone up to ±14 degrees.
6. 4 Corner Correction: Choose the corner to be adjusted and use arrows to change the location.
7. Color Setting: Change brightness, Contrast, Saturation, Sharpness, R/G/B Gain, and R/G/B Offset.
8. Firmware Upgrade: Upgrade via USB drive or through internet.
9. Projector Location: Change to Front/ Front Ceiling/ Rear/ Rear Ceiling mode.
10. Language: Change language with arrows.
11. Reset All: Choose yes to reset projector to factory default. All saved changes to Setting are lost.restored. The projector will be restored to the factory settings, and the data adjusted by the user will not be saved.

Select “bluetooth” to use Beam H3 as a bluetooth speaker.
Connection: Turn on bluetooth of your mobile or computer, and find Beam-XXXX to connect. The projection screen will turn black during connection.
Disconnection: Press “back” key on projector chassis/ remote control, or disconnect from the bluetooth list of your mobile or computer. The projection screen will turn on again after disconneted.

DLNA streaming
– Select EZCast on main menu of projector and make sure both of your projector and mobile are connected to the same Wi-Fi router.
– Launch the app that support DLNA, such as QIY, QQTV.
– Click the DLNA icon on the video you’d like to play, and select “Beam-XXXX”.

Frequently Asked Questions
Q1: Is the type-C port compatible with all mobile devices?
A1: To cast the content from your device via a USB C cable, your mobile device must support Display Alt mode.

Q2: What is auto keystone for?
A2 Auto keystone correction makes it easy to set the screen configurations from a variety of locations. You don’t have to manually adjust the images angle to project a square image.

Q3: Why is the remote not working?
A3: Please check the battery of your remote control (battery is not included in the package due to shipping restrictions) and point it towards the screen.

Q4: There is no sound or the sound is too low at maximum volume.
A4: Please use the remote control or the button on the projector’s control panel to adjust the volume instead of using mobile device to get the maximum volume.

On top of the many features, EZCast Beam H3 also has more than 30,000 hours LED lifetime, supports 10,600 LED lumens brightness, and 1080P vivid image resolution. In conclusion, EZCast BeamH3 can totally fulfill the entertainment needs and lets you enjoy both home education or mobile games on big screen easily. EZCast Beam H3 is one of the best value LCD projectors on the market.

Photo gallery full album here. Official website here. Download EzCast application from here or from Google Play Store.
