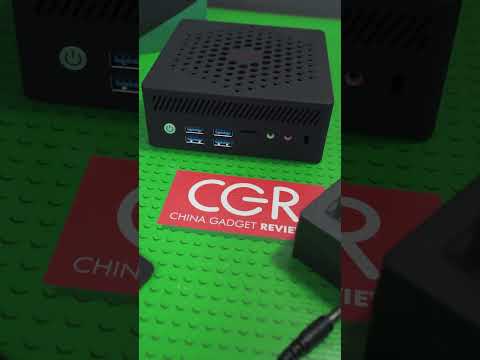

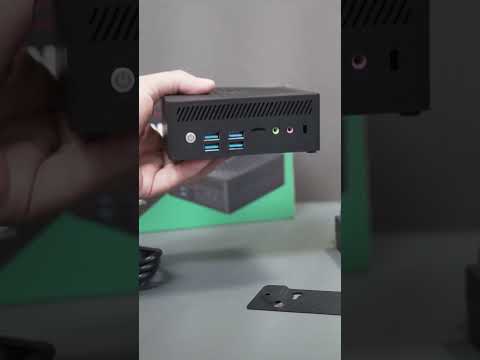

Unboxing NEOSMAY AC8-N Intel N200 16GB 512GB SSD Fanless Mini PC

Best Deal Alert! You can now buy NEOSMAY AC8-N Intel N200 16GB 512GB SSD Fanless Mini PC from Amazon.com with $80 coupon discount on page or from Newegg.com with 25% off and free shipping to US. Hurry up, limited time offer! For more details, please visit official page here.

Meet Neosmay AC8-N Mini PC
The Neosmay AC8-N Mini PC is a compact desktop computer with support for up to three displays, two Ethernet ports, and a 6-watt Intel Alder Lake-N processor. It’s not the most powerful mini PC on the market, but it’s fairly versatile system with a fanless design for silent operation. And it’s pretty cheap. The computer also supports WiFi 6 and Bluetooth 5.2, with support for features like Wake on LAN, RTC Wake, and Auto Power On, it could also be used as a home media or file server, among other things. These power-on capabilities hold significance for industrial purposes or digital signage applications, allowing to initiate remote start-ups or schedule them programmatically.

The Intel Processor N200 is a mobile processor with 4 cores, launched in January 2023, and it is part of the Intel Processor lineup, using the Alder Lake-N architecture. The processor N200 has 6MB of L3 cache and operates at 100 MHz by default, but can boost up to 3.7 GHz, depending on the workload. With a TDP of 6 W, the N200 consumes extremely little energy. For communication with other components in the machine, Processor N200 uses a PCI-Express Gen 3 connection. This processor features the UHD Graphics 770 integrated graphics solution.

NEOSMAY AC8-N Mini PC can handle diverse applications easily, widely used in various occasions like daily work, online streaming, light gaming, design or home entertainment. It’s compact size makes you business trip easier and burdenless. It’s definitely a good conpanion for your work, study and daily life.

The 16GB DDR4 memory also helps the computer to run multiple applications simultaneously, as well as access frequently-used files and programs. Files can be stored locally on the 512GB NVME SSD, while the USB ports provide connections for multiple peripherals and accessories. We also have an SD card reader up to 512 GB. We have also triple video output with two HDMI 2.0, DP 1.4, and VGA outputs that allow us maximum video resolutions up to 4K@60Hz. Connect wireless peripherals with Bluetooth 5.2 and go online without any cables with Wi-Fi 6. Two 2.5 Gigabit LAN port are also present, supporting a very fast wired Ethernet connection. It runs on the 64-bit Windows 11 Pro operating system out of the box.

This mini computer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBOmax, Youtube 4K – everything works just fine, AC8-N is giving you the ultimate experience in streaming performance. The smaller size expands the scope of application, and the design is still suitable for the office. Four monitors can be connected at the same time. The plastic shell is very durable, so that you can put it in a travel bag and take it with you on trips. Furthermore, you can use a mounting bracket to attach it to the back of your monitor.

There’s a lot to like about the NEOSMAY AC8-N Mini PC. It’s conveniently-sized, and could easily fit into even the most tightly-packed desktops. It’s also highly versatile, with a range of different ports, mounting options, and configurations available to suit almost every conceivable home or office. If you are looking for a small desktop PC that is more than capable for your everyday basics, yet still affordable enough as not to break your bank, the NEOSMAY AC8-N is too good of an option to be overlooked.

NEOSMAY AC8-N-N Mini PC Features
– Latest 12th Intel Alder Lake-N200 – Neosmay Mini PC comes with the newest 12th Gen Intel Processor Alder Lake-N200 (4 Cores/4 Threads, 6M Smart Cache, upto 3.7GHz),power consumption is only 6W. The N200 has relatively lower power consumption, faster speed, stabler, and a powerful performance improvement. This mini pc preinstalled with Win 11 Pro, supports Linux operating system. Mini computer measures only 4.8 x 4.8 x 1.7 inches. Palm-size, easier to carry.
– Max 32GB RAM & 2TB SATA/NVME SSD & 512GB Micro SD, Update &Upgrade Friendly – Innovation Design for the RAM/SSD upgrating easily and flexible, avoiding to screw open the bottom case. This mini computer installed 16GB DDR4-2600/3200MHz and 512GB M.2 2280 NVME SSD. The single SODIMM that can largely expand storage up to 32GB. It also supports M.2 2280 SATA SSD(up to 2TB). Extensibile option – The Micro SD supports max 512GB(NOT INCLUDE), more storage space will make Mini PC run more smoothly.
– 4K Triple Screen Display & Dual Gigabit Ethernet- This mini computers allows you to connect 3 monitors at the same time, triple displays [HDMI 2.0 & DP 1.2 & VGA] for conducting different tasks simultaneously, which improves work efficiency effectively. Built-in 2 x RJ45 LAN, Wifi 6 and BT 5.2. The latest wireless connectivity offers faster internet experience for browsing, surfing, streaming.This mini pc supports Wake On LAN, PXE Boot, RTC Wake and Auto Power On, ideal to use as a server.
– Efficient Heat Dissipation Fanless Mini PC with Anti-Static Design – Mini PC uses a heat sink to transfer internal heat from components such as the CPU outside the computer. Ensures completely noiseless and maintenance-free operation for a quiet experience. It built-in anti-static materials to protect the internal structure. Application: Office work, meeting room, light games, home entertainment, education, digital security surveillance, digital signage, media center, school computer room, etc.
– Multiple Interfaces Meet Depth Needs – The mini pc has a unique interface designed with 4 x USB3.0 ports, 1 x SD Data port, 1 x DC Jack port, 2 x RJ45 LAN port, 1 x Audio Jack (HP&MIC) port. This micro computer wears a power LED, power button, reset button, ideal for personal, industrial and commercial applications. All of our products obtained FCC, ROHS, CE certification. We will provide you with a 1-year warranty, 24 hours of after-sale customer service and lifetime technical support
– Faster transmission. AC8 mini pc has 4 USB 3.0 ports. The transfer speed is 10 times faster than that of USB 2.0, so it’s easy for you to transfer large capacity files in a short time, thus reduce the energy consumption.
– Easy to fix and save space. We also provide you with VESA bracket, so you can put the mini pc behind the screen, the all-in-one style can not only make your desktop more beautiful, but also save a lot of space.

NEOSMAY AC8-N Mini PC Highlights
– Compact & Ultra High-efficiency Mini PC
– Powerful processing
– Lightning-fast memory and high-speed storage
– Low energy consumption
– Advanced hardware & software security features
– High-Speed Network
– Triple Display outputs
– Very easy to make memory upgrades.
– Fanless Design.

The Ami BIOS of NEOSMAY AC8-N Mini PC is pretty rich in features and options. There are 6 tabs in settings, with a few options each: Main, Advanced, Chipset, Security, Boot, Save & Exit. I have made a BIOS back-up, you can download it from here. I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.

BIOS details
BIOS Vendor: American Megatrends Aptio – AMI
BIOS version: 2.22.1287
Core version: 05.27
Project Version: 00.01 / M8ANX02R110 001 x64
Firmware ID: M8ANX02R1
BIOS Chip Name: Wnbond 25X/Q Series
Compliancy: UEFI 2.8; PI 1.7
Build date: 06/26/2023 16:35:43
Processor name: AlderLake ULX
Processor Type: Intel(R) N200
IGFX GOP Version: 21.0.1056
ME FW Version:
Features: Wake On LAN, UEFI, PXE Auto power on when power failure

NEOSMAY AC8-N Mini PC Drivers
NEOSMAY AC8-N Mini PC came with Windows 11 Pro 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and untill now everything runs just great. The Windows version was 22H2 Build 22621.525.

Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Portable Devices, Ports (COM & LPT), Print queues, Processors, Security devices, Software components, Software devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.

I extracted with DoubleDriver the drivers for Windows 11 Pro version 22H2, you can download the archive from here. Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.

About System
Processor: Intel(R) N200 1.00 GHz
Installed RAM: 16.0 GB (15.7 GB usable)
Storage: 512GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 22H2
Installed on: 9/11/2023
OS build: 22621.525
Experience: Windows Feature Experience Pack 1000.22634.1000.0

Neosmay AC8-N Mini PC Ports
1 x Power On / Off button
1 x DC in port
4 x USB 3.0 port
1 x Mcro SD Card Slot
1 x Mic Line in Jack
1 x Audio Line out Jack
1 x HDMI 2.0 port
1 x DisplayPort (DP) 1.4 video output
1 x COM 232 port
2 x RJ45 2.5 Gigabit LAN port
1 x Power LED light
1 x Kensington Lock Security Slot

Model: AC8-N
CPU: 12th Intel Alder Lake N200 Processor, TDP 6W, Quad core, 4 threads, up to 3.7GHz, 6M Smart Cache
GPU: Intel UHD Graphics
Memory: 16GB DDR4 RAM SODIMM 2666MHz 1.2V PC4-21300 Single Channel, expand up to 32GB
Storage: Installed 512GB M.2 2280 NVMe SSD, expand up to 2TB + Micro SD Max 512GB
Video output: HDMI 2.0 + DP1.4 + VGA ports
WiFi: WiFi 6 802.11ax, m.2 PCle port
Bluetooth: v5.2
LAN: RJ45 LAN x 2, 1000Mbs Gigabit Ethernet
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 12V 2.5A DC
Work/Storage Environment: -10°C–45°C,30%–85% Humidity/-20°C–60°C,10%–90% Humidity
Color: Black
Computer Size: 4.84 x 4.84 x 1.77 inch
VESA Support: 70×70 mm / 100×100 mm
OS version: Windows 11 Pro version 22H2 Build 22621.525

Package Content
1 x Power Adapter model HS-ZC481202500UL 12V 2.5A 30W
1 x Monitor mounted bracket
1 x HDMI cable (80 cm)
10 x Screw

Unboxing Photo Album with Hi-Rez images here. Official webpage here. More about Newsmay devices here.

About Newsmay. Newsmay, is one of the most professional mini-PC manufacture and qualified vendor. At the very beginning, we R & D TV Box motherboard and supply to factory clients in China. From 2014, based on Intel Baytrail 3740 processor, we started to R&D the mini pc and release the 1st mini pc product, followed the developing of Baytrail, till now, we mNewsmay AC8ake the mini pc based on Intel Atom Cherrytrail Z8350, Atom E3940, Celeron J1900, Apollo lake/Gemini lake J3455/J4105/J4125/J5005, Kabylake lake Core i3/i6/i7, Intel 10th Comet Lake-U i3/i5/i7 and so on.
