Unboxing NEOSMAY AC8F-POE Intel N100 Fanless Mini PC

Best Deal Alert! You can now buy NEOSMAY AC8F-POE Intel N100 8GB 128GB SSD Fanless Mini PC from Newegg.com / Amazon.com /  for a very good price. Hurry up, limited time offer!


Meet NEOSMAY AC8F-POE Mini PC
The mini PC also supports 12V DC power input if you don’t use PoE power input, and comes with an additional RJ45 port acting as an RS232 console. There’s no built-in wireless, but the mini PC can take a WiFi and Bluetooth module, as well as a 4G LTE or 5G module, and features a SIM card slot for the latter. Furthermore, you can use a mounting bracket to attach it to the back of your monitor.

The mini PC comes preloaded with Windows 11, but considering its four 2.5GbE ports, it’s also sold as a “micro firewall appliance” and “soft router” supporting pfSense, Proxmox VE, Ubuntu, and so on. The mini PC ships with a 12V power adapter, an HDMI cable, two antennas, a VESA mount, a screw set, and a user manual.

Overall, the NEOSMAY AC8F-POE Fanless N100 Micro Firewall Appliance is a versatile, high-performance networking device suitable for industrial and home network applications where reliability, performance, and flexibility are paramount. Its robust construction, extensive feature set, and compact design make it a compelling choice for demanding networking environments.

NEOSMAY AC8F-POE Mini PC Main Features
– PROCESSOR & OS – This 4 LAN Mini PC uses Intel Quad cores N100 Processor, TDP 6W, 0.8GHz(up to 3.4GHz). supports POE IN, AES NI, PFsence, VPN hardware and so on. It installed with windows 11,supports Win11/WIN10/ubuntu and other popular open source firewall router software. Support Auto Power On when power failure, Wake on LAN and PXE boot (“DEL” key to enter BIOS).
– 4 x 2.5GbE Ethernet Ports Mini PC – This fanless industrial mini pc uses Intel i225/i226 chip, supports 4 x 2.5 Gigabit ethernet to keep stable and high speed(1 port can support POE IN). 1 x RJ45 COM RS232, You can connect computers, network devices, and routers together for Internet access & resource sharing. Our n100 mini pc has a good compatibility for soft routing, home firewall and other network appliances. POE in(PD function) that device’s power can supply by the POE LAN, with 36W power.

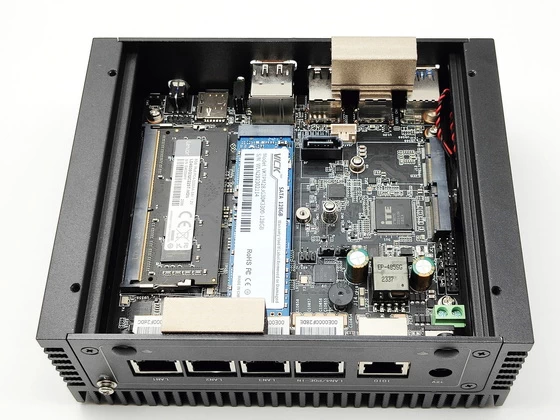

– Max 32GB DDR4 RAM & 2TB SATA SSD & 512GB Micro SD, Upgrade Friendly – This mini computer installed 8GB DDR4-2666/3200MHz RAM and 128GB M.2 2280 SATA SSD. The single SODIMM that can largely expand storage up to 32GB. It also supports M.2 2280 SATA SSD(up to 2TB). Extensibile Option – The Micro SD supports max 512GB(NOT INCLUDE), Large storage makes Mini PC run more smoothly, you can meet the vpn router box requirements of different network security firewall software and hypervisor applications.
– Rich I/O Interface to Meet More Needs – HDMI2.0 & DP1.4(Dual Display Support 4K@60Hz ), 1 x USB3.0, 4 x USB2.0, USB3.0 Type-C, 1 x SIM Card slot[(Support 4G/5G) Not include 4G/5G module/SIM], 1x DC IN , Support Wifi ac/ax( NOT preinstalled wifi module), 4 x LAN port(Intel I225 or I226 chip, 1 port can support POE IN), 1 x RJ45 COM RS232. Input:100-240V AC, Output: 12V 3A DC
– Versatility – The inclusion of SIM card slots, dual display support, and POE IN capability broadens its applications beyond traditional firewall duties. It can serve as a home network router, industrial mini PC, or even a small-scale server, offering flexibility in deployment scenarios.
– Silent & Compact Micro PC, Small but Powerful – This mini computer uses fanless cooling design, Special designed Heatsink and low power consumption to save energy and 7*24 hours stable running. It’s only 6.1 x 4.98 x 2.44 inch, and has a mounting bracket that allows it to be hung on the back of the monitor or TV to save more space.
– POE support: This allows the device to power other devices using the same Ethernet cable for data transfer.

NEOSMAY AC8F-POE Mini PC Using Scenarios
– Firewall: Its compact size, fanless operation, and multiple LAN ports make it suitable for deploying as a hardware firewall appliance in small networks, particularly where noise reduction is crucial.
– Router: Similar to firewalls, it functions effectively as a router due to its multiple LAN ports and POE support. This allows for efficient network management and power distribution to other devices, such as access points.
– VPN Endpoint: The AES-NI hardware acceleration can improve performance when establishing and maintaining secure VPN connections.
– SCADA System: This mini PC can serve as a data acquisition and control unit in a Supervisory Control and Data Acquisition (SCADA) system for monitoring and managing industrial processes due to its reliability and compact size.
– Machine Control: Its fanless design and basic processing power make it suitable for simple machine control applications, particularly in dust-sensitive environments.
– Industrial HMI: With dual display support, it can act as a Human-Machine Interface (HMI) for industrial equipment, allowing operators to interact with the machine and monitor its status.
– Signage Player: Due to its quiet operation and small footprint, it can be used as a digital signage player for displaying content on screens in retail stores, public spaces, and other locations.
– Thin Client: With its basic computing capabilities, it can function as a thin client device for accessing centralized resources in a virtual desktop infrastructure (VDI) environment.
– Edge Computing: The mini PC’s compact size and low power consumption make it suitable for edge computing applications, where data processing and analysis occur closer to the source.
– Home Automation and Media Center: In home automation setups, this mini PC can function as a central hub for controlling smart devices, managing home security systems, and streaming multimedia content. Its compact size and fanless design make it suitable for installation in living spaces, while its AES-NI support ensures secure communication with connected devices and services.

NEOSMAY AC8F-POE Mini PC Highlights
– Compact & Ultra High-efficiency Mini PC
– Low energy consumption
– Advanced hardware & software security features
– High-Speed Network
– Very easy to make memory upgrades.
– POE support
– Fanless Design.

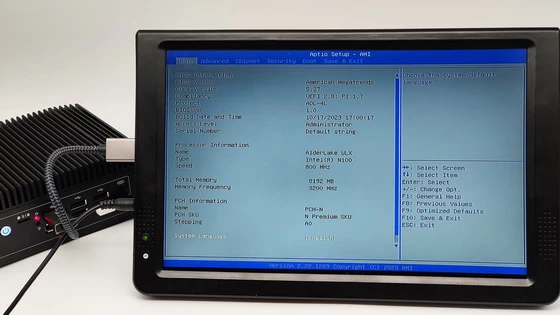

NEOSMAY AC8F-POE Mini PC BIOS
The Ami BIOS of NEOSMAY AC8F-POE Mini PC is pretty rich in features and options. There are 6 tabs in settings, with a few options each: Main, Advanced, Chipset, Security, Boot, Save & Exit. I have made a BIOS back-up, you can download it from here. I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.

BIOS details
BIOS Vendor: American Megatrends Aptio – AMI
BIOS version: 2.22.1289
Core version: 05.27
Project Version: ADL-4L
Firmware ID: M8ANX02R1
BIOS Chip Name: Wnbond 25X/Q Series
Compliancy: UEFI 2.8; PI 1.7
Build date: 10/17/2023 17:00:17
Processor name: AlderLake ULX
Processor Type: Intel(R) N100
BIOS with support for Wake on LAN, Auto Power on, and PXE boot

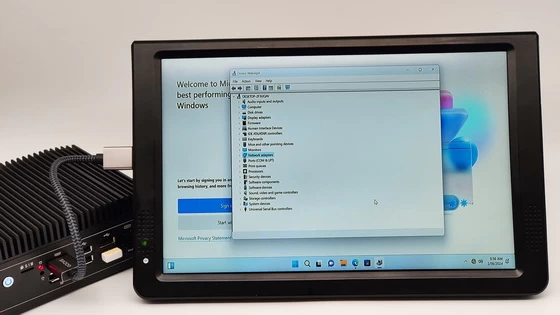

NEOSMAY AC8F-POE Mini PC Drivers
NEOSMAY AC8F-POE Mini PC came with Windows 11 Pro 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and untill now everything runs just great. The Windows version was 22H2 Build 22621.525.

Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Portable Devices, Ports (COM & LPT), Print queues, Processors, Security devices, Software components, Software devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.

I extracted with DoubleDriver the drivers for Windows 11 Pro version 22H2, you can download the archive from here. Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.

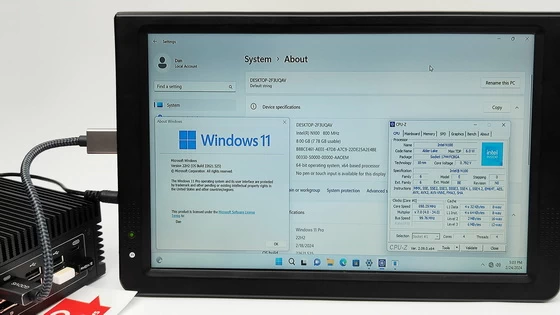

About System
Processor: Intel(R) N100 800 MHz
Installed RAM: 8 GB (7.78 GB usable)
Storage: 128GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 22H2
Installed on: 2/18/2024
OS build: 22621.525
Experience: Windows Feature Experience Pack 1000.22634.1000.0

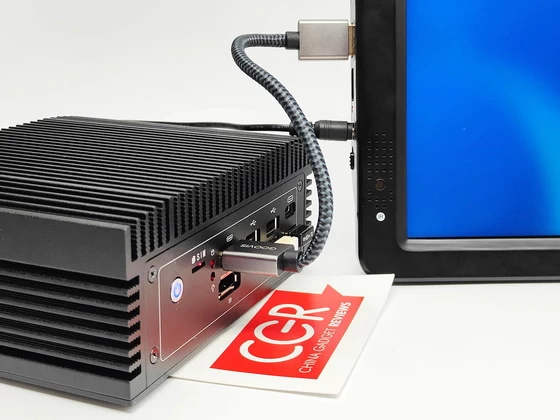

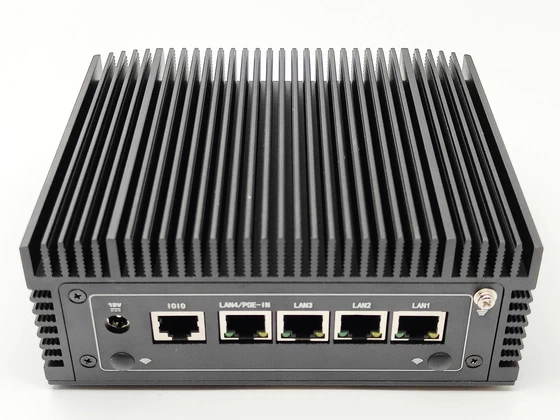

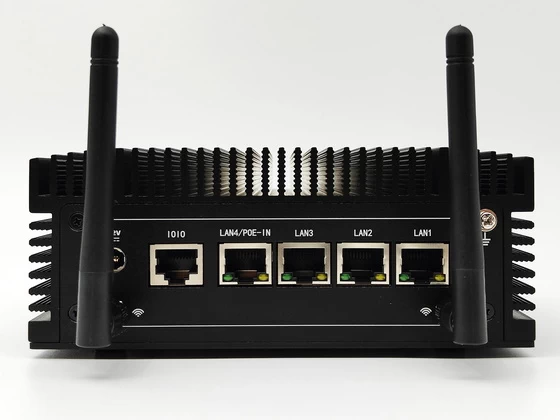

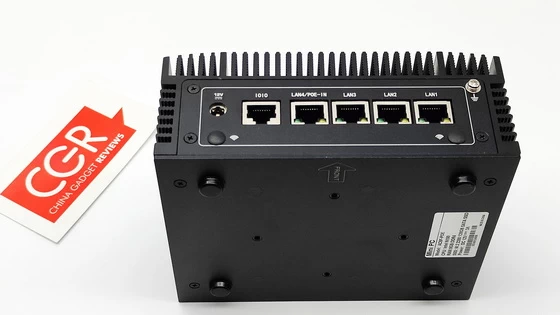

NEOSMAY AC8F-POE Mini PC Ports
1 x Power On / Off button
1 x DC in port
1 x HDMI 2.0 port
1 x DisplayPort (DP) 1.4 video output
1 x USB 3.2 port
1 x USB 3.2 Type-C port
4 x USB 2.0 port
4 x 2.5 GbE RJ45 port
1 x RJ45 jack for RS232 console
1 x SIM card slot (4G / 5G)
2 x External antenna

NEOSMAY AC8F-POE Mini PC Specs
Brand: NEOSMAY
Model: AC8F-POE
SoC: Intel Processor N100 quad-core Alder Lake-N processor @ up to 3.4 GHz (Turbo) with 6MB cache, 24EU Intel HD graphics @ 750 MHz; TDP: 6W

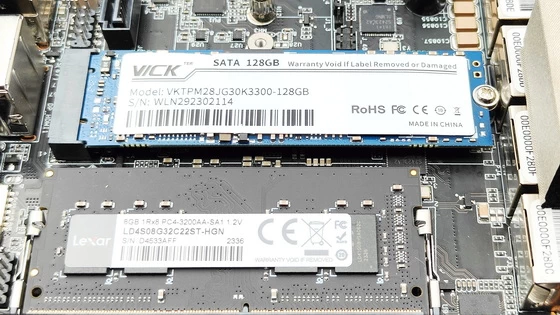

Memory: 8GB DDR4 RAM SODIMM 3200MHz, expand up to 32GB
Storage: Installed 128GB M.2 SATA SSD, expand up to 2TB
Video output: HDMI 2.0 + DP1.4 ports
LAN: 4x 2.5GbE RJ45 ports via Intel i225/i226 controllers, with LAN4 also supporting PoE power input
Serial: RJ45 jack for RS232 console
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 12V 3A DC
Work/Storage Environment: -10°C–45°C,30%–85% Humidity/-20°C–60°C,10%–90% Humidity
Color: Black
Dimensions: 15.5 x 12.65 x 6.2 cm
Weight: 1.7 kg
OS version: Windows 11 Pro version 22H2 Build 22621.525

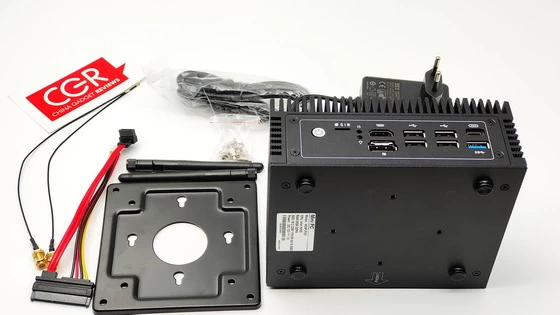

Package Content
1 x NEOSMAY AC8F-POE Mini PC
1 x Power Adapter model BSY036A120300V 12V 3A 36W
1 x VESA Monitor mounting bracket
1 x HDMI cable (80 cm)
1 x SATA Cable
2 x External Antenna
2 x RF Cable
8 x Screw
1 x Packaging Box

Unboxing Photo Album with Hi-Rez images here. Official webpage here. More about Newsmay devices here.

About Newsmay. Newsmay, is one of the most professional mini-PC manufacture and qualified vendor. At the very beginning, we R & D TV Box motherboard and supply to factory clients in China. From 2014, based on Intel Baytrail 3740 processor, we started to R&D the mini pc and release the 1st mini pc product, followed the developing of Baytrail, till now, we mNewsmay AC8ake the mini pc based on Intel Atom Cherrytrail Z8350, Atom E3940, Celeron J1900, Apollo lake/Gemini lake J3455/J4105/J4125/J5005, Kabylake lake Core i3/i6/i7, Intel 10th Comet Lake-U i3/i5/i7 and so on.
