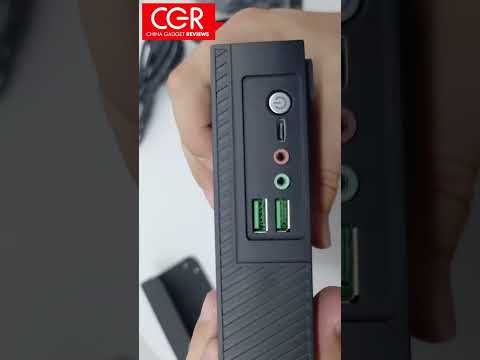

Unboxing Newsmay S2-B560 8GB RAM 500GB ROM Workstation PC
Best Deal Alert! You can now buy 8GB RAM 500GB ROM Workstation PC from Newegg.com / Globalsources.com for a very good price. Hurry up, limited time offer!

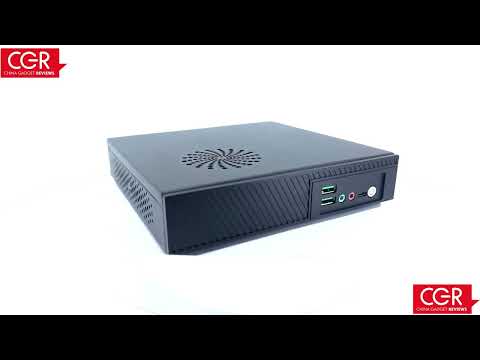

Meet Newsmay S2-B560 Workstation PC
Newsmay S2-B560 Mini Desktop Computer from Newsmay is designed for growing businesses and delivers a high level of business class performance and security with a portfolio of available accessories. The S2-B560 is powered by Intel 11th Gen socket processor which allow users to run multiple applications simultaneously. The DDR4 memory also helps the computer to run multiple applications simultaneously, as well as access frequently-used files and programs. With both memory slots in use, the system supports up to 64GB of RAM, or 32GB per slot.
Get enterprise performance while saving space with the new S2-B560 micro form factor desktop from Newsmay. Designed for business environments, this micro form-factor PC features a 1.30 GHz Intel Core i5-11400T six-core and 8GB of DDR4 RAM. Files can be stored locally on the 500GB NVME SSD, while one USB 3.2 Gen 2 Type-C, two USB 3.2 Gen2 full size, two 3.1 Gen 1 and two USB 2.0 Type-A ports provide connections for peripherals and accessories. Connect wireless peripherals with Bluetooth 5.0 and go online sans cables with Wi-Fi 6. An RJ45 port is also present, supporting a wired Gigabit Ethernet connection.
Featuring integrated Intel UHD Graphics 730, the S2-B560 Workstation PC incorporates two HDMI & one DisplayPort outputs for multi-display setups. A TPM chip ensures system integrity, while it runs on the 64-bit Windows 11 Pro Operating System.
This minicomputer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBOmax, FilmBox+, Focus Sat, Youtube 4K – everything works just fine, S2-B560 giving you the ultimate in streaming performance. The smaller size expands the scope of application, and the design is still suitable for the office. Three monitors can be connected at the same time. The metal shell is durable, so that you can put it in a travel bag and take it with you on trips. Furthermore, you can use a mounting bracket to attach it to the back of your monitor.
There’s a lot to like about the Newsmay S2-B560. It’s conveniently-sized, and could easily fit into even the most tightly-packed desktops. It’s also highly versatile, with a range of different ports, mounting options, and configurations available to suit almost every conceivable business need. If you are looking for a small desktop PC that is more than capable for your everyday basics, yet still affordable enough as not to break your bank, the Newsmay S2-B560 is too good of an option to be overlooked.
Newsmay S2-B560 Workstation PC Features
– Balancing footprint & performance. An enterprise-level powerhouse with mainstream performance and productivity, the Newsmay S2-B560 tiny desktop strikes a perfect balance between performance and footprint. Its powerful processor and lightning-fast memory are ready to start crossing items off your to-do list, with high-speed storage as well.
– Convenient & configurable. The S2-B560 desktop offers remote power-up and supports multiple independent monitors. USB ports and a host of other ports allow plenty of other peripherals. Its slots and add-ons mean you can configure it the way you want, while tool-less access makes it easy to expand and grow with your business.
– Fits anywhere – and looks good there. Not much bigger than a paperback book, the Newsmay S2-B560 is easy to deploy in any location. You can use multiple mounting kits or simply leave it on a shelf or a desk, horizontal or vertical. It’s modernized, the black chassis will look great wherever you put it.
– Sustainable design & usage. The S2-B560 meets multiple global sustainability standards. It’s certified for low noise emission, and its high-efficiency adapter makes for low power consumption.
– Powerful protections you can trust. Windows 11 Pro is the most secure Windows ever. It comes with built-in protections for your data, your equipment, and your people, securing business information and personal identities even on lost or stolen devices.
– Stay Cool. Utilizing the new shift venting pattern, the S2-B560 maximizes air intake to keep thermals down.
– Latest USB 3.2 Gen 2. Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.1 Gen 2.
– Big protection for this tiny PC. Many security solutions protect your device and data via hardware and software working together. A TPM chip encrypts your passwords, while BIOS-based Smart USB Protection prevents unauthorized users from plugging in and accessing your files.
Newsmay S2-B560 Workstation PC Highlights
– Compact, enterprise-level powerhouse PC
– Powerful processing
– Lightning-fast memory and high-speed storage
– Low energy consumption
– Advanced hardware & software security features
– Very easy to make upgrades.
Newsmay S2-B560 Workstation PC BIOS
The Aptio BIOS of Newsmay S2-B560 Mini PC is pretty rich in features and options. There are 6 tabs in settings, with a few options each: Main, Advanced, Chipset, Security, Boot, Save & Exit.
BIOS details
BIOS Vendor: AMI Aptio
Project version: H573D 1.00 X64
BIOS version: 2.21.1278 / 5.19
SMBIOS Version: 3.3
BIOS date: 6.13.2022
Revision: V1.00
BIOS Features: Wake on lan / Auto power on / RTC / PXE
Newsmay S2-B560 Workstation PC Drivers
Newsmay S2-B560 Mini PC came with Windows 11 Pro 64-bit edition version. This version was activated and everything was just ok. All the drivers were correctly installed and untill now everything runs just great. The Windows version was 21H2 Build 2200.318 but I easily updated to Build 22000.832.
Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Portable Devices, Ports (COM & LPT), Print queues, Processors, Security devices, Software components, Software devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.
I extracted with DoubleDriver the drivers for Windows 11 Pro version 21H2, you can download the archive from . Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.
About System
Device name: S2-B560
System Model: S2-B560TPM
Processor: 11th Gen Intel(R) Core(TM) i5-11400T @ 1.30GHz 1.30 GHz
Video Processor: Intel® UHD Graphics 730
Installed RAM: 8.00 GB (7.77 GB usable)
Storage: 500GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 21H2
Installed on: 6/30/2022
OS build: 22000.832
Experience: Windows Feature Experience Pack 1000.22000.832.0
Newsmay S2-B560 Workstation PC Ports
1 x Power On / Off button
1 x DC in port
2 x USB 3.2 Gen 2 full size port
1 x USB 3.2 Gen 2 Type-C port
2 x USB 3.1 Gen 1 full size port
2 x USB 2.0 full size port
2 x Mic Line in Jack (front & rear)
2 x Audio Line out Jack (front & rear)
2 x HDMI 2.0b port
1 x DisplayPort (DP) 1.4 video output
1 x RJ45 1000M Gigabit LAN port (Realtek 8111H)
1 x Power LED light
2 x External Wi-Fi Antenna
1 x Kensington Lock Security Slot
1 x free SODIMM DDR4 RAM slot (internal)
1 x free 2.5″HDD /SSD slot (internal)
Headers on MB: 2 x USB2.0 / 1 x COM232 / 1 x TPM (ASROCK TPM SPI 14-1 pin module)
Newsmay S2-B560 Workstation PC Specs
CPU: 11th Gen Intel(R) Core(TM) i5-11400T @ 1.30GHz 1.30 GHz
GPU: Intel® UHD Graphics 730
Memory: 8GB SO-DIMM DDR4, Support Extension to 64GB
Storage: 500GB NVME SSD + 2 x 2.5″HDD /SSD
Video output: HDMI + DP + USB ports
WiFi: WiFi IEEE 802.11b/g/n/ac / m.2 PCIe Wi-Fi module port
Bluetooth: v5.0
LAN: 1000 Mbps Gigabit ethernet
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 19V / 4.74A
Work/Storage Environment: -10°C–45°C，30%–85% Humidity/-20°C–60°C，10%–90% Humidity
Color: Black
Chassis size: 127*127*48mm
Chassis material: metal
OS version: Windows 11 Pro version 21H2 Build 22000.832
Package Content
1 x Newsmay S2-B560 Workstation PC
1 x Power Adapter model ADP-90SB BB 19V 4.74A
1 x Monitor mounted bracket
1 x Desk vertical stand
1 x HDMI cable (80 cm)
9 x Screw
About Newsmay. Newsmay, is one of the most professional mini-PC manufacture and qualified vendor. At the very beginning, we R & D TV Box motherboard and supply to factory clients in China. From 2014, based on Intel Baytrail 3740 processor, we started to R&D the mini pc and release the 1st mini pc product, followed the developing of Baytrail, till now, we mNewsmay AC8ake the mini pc based on Intel Atom Cherrytrail Z8350, Atom E3940, Celeron J1900, Apollo lake/Gemini lake J3455/J4105/J4125/J5005, Kabylake lake Core i3/i6/i7, Intel 10th Comet Lake-U i3/i5/i7 and so on.
