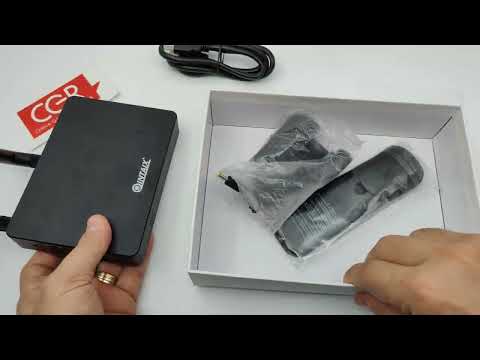

Unboxing Qintex QY8 Rockchip RK3568 Android 11 TV Box
Best Deal Alert! You can buy Qintex QY8 Rockchip RK3568 Android 11 TV Box from Qintexworld.com for a very good price. Hurry up, limited time offer!
Meet Qintex QY8 TV Box

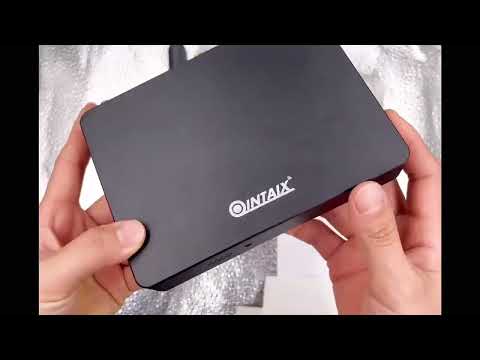

Qintex QY8 TV Box has an elegant and compact design, with aluminium case and a front blue LED power light & IR receiver. On the left side it has the recovery hole, TF card reader slot and 2 full size USB 3.0 ports. In the rear you can find two WiFi external antenna, another two full size USB 2.0 ports, HDMI 2.1 output, Ethernet LAN RJ45 Gigabit 1000M port, AV port, Optical audio output and power port. The overall impression is very good, the device looks to be constructed with big care to details. The device ships with a power adapter, a HDMI cable and a IR remote controller. Qintex QY8 TV Box comes with 4GB of RAM and 32GB of internal storage. The model adopts the latest quad core RK3568 chipset from Rockchip. For connectivity the device includes wired Ethernet RJ45 Gigabit 1000M, Wi-Fi 6, Bluetooth 5.0 and Infra Red receiver on board.
Qintex QY8 is a middle-price device with a powerful Rockchip RK3568 SoC, it may be a very good companion for any digital task. For connectivity, the Qintex QY8 box contains WiFi 6 connection for faster data transmission and better streaming experience. It also comes with a feature that is missing in a lot of other TV boxes, which is a 1000Mb LAN, that is more reliable than WI-FI and provides even better data transmission. The Qintex QY8 TV box comes equipped with the Android 11, it offers you a more efficient, safer operation, better compatibility of the latest applications, so better user experience.
Despite strong hardware, this is really a TV box that almost fits in your hand. You can easily hide it even in a limited space under the TV. This TV box contains everything that an enthusiast of movies and TV series can expect, turning your television into a true home entertainment center. Regardless of whether you’re planning to watch videos, play games or listen to music, this TV Box will serve you well. Using just this one amazing device, you can both watch Amazon Prime, HBOmax, Youtube and various other streaming services in maximum quality (4K Ultra HD), and play local library of media files in the most advanced formats (up to full disc menu DVD iso). The WiFi speed is very good and the connection is steady, we got up to 440 Mbps in our test.
Overall, this is an amazing device for the money, very easy to recommend to our readers. If you are looking for a streamer that has the above functionalities, as well as, importantly, POE enabled device, the Qintex QY8 player is for you. Another instant hit from Qintex!
BTW, if you ever need it, you can download Android 11 stock firmware for Qintex QY8 TV Box from here.
Qintex QY8 TV Box Highlights
– Power over Ethernet (PoE) enabled device
– Android 11 operation system
– Fast Rockchip RK3568 CPU
– ARM Mali-G52 MP2 as GPU
– 4GB DDR4 RAM + 32GB EMMC ROM
– Micro SD card slot
– Support Bluetooth v5.0 & Bluetooth LE
– Support 4K ultra HD image display
– Ultra Fast WiFi 6 Connection
– Ultra Fast 1000M Ethernet Port
– Two USB 3.0 ports.
Qintex QY8 TV Box Main Features
– Great Compact Design. It continues the story of compactness and functionality started in previous models.
– New WiFi 6 with 2 external antenna formation. A requirement for more durable devices gave us an idea to eliminate as much possible weak parts as possible. This can take an important role for solving some digital signage tasks.WiFi with powerful external antenna, faster connection for better live performances and faster data transfer. QY8 supports Bluetooth 5.0 with LE technology.
– Infrared remote. Additional accessory, now is standard.
– 4K resolution. Stable 4K 60fps resolution for smooth playback experience.
– Android 11 as OS. Qintex QY8 runs Android 11 with latest security patches.
– USB 3.0. Small yet fast with USB 3.0 interface on board.
Qintex QY8 TV Box Specs
Brand: Qintex
Model: QY8
Type: Android TV Box
CPU: Rockchip RK3568 2.0G 64bit
GPU: ARM Mali-G52 2EE
Operation System: Android 11
SDRAM: 4GB / 8GB
Flash: 32GB / 64GB
WIFI: 2.4G/5G 802.11a/b/g/n/ac/ax 2T2R WiFi 6
WIFI Module: RTL8852BE
ETHERNET: 1000 Mbps Gigabit RJ45
Bluetooth: v5.0 with LE technology
Remote Control: IR Remote
Support: CEC / RTC / POE / HDR / DLNA / Miracast Protocol
Software Extension: Support Google Play & APK install
Power Supply: DC 5V/3A DC
Audio Out & Audio Container
MP3, AAC, WMA, RM, FLAC etc.
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable 7.1/5.1
Built-in SPDIF/IEC958 output and PCM input/output
Built-in stereo audio DAC
Video CODEC
VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVCMP-10@L5.1 up to 4K*2K@60fps
H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096×2304@60fps
H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to
4096×2304@60fps
VP9 Profile0/2 yuv420@L5.1 up to 4096×2304@60fps
VP8 verision2,up to 1920×1088@60fps
VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, Advanced Profile@level0~3,up to
1920×1088@60fps
MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to
1920×1088@60fps
MPEG-2 Main Profile, low, medium and high levels, up to 1920×1088@60fps
MPEG-1 Main Profile, low, medium and high levels, up to 1920×1088@60fps
H.263 Profile0,levels 10-70,up to 720×576@60fps
Power over Ethernet
As an ideal platform for retail, commercial or industrial applications, Qintex QY8 Android TV Box has a PoE function, you can power the device using an Ethernet cable. This solution transfers both data and electrical power safely through an ethernet cable, eliminating the need for costly electrical infrastructure upgrades and building modifications when installing. Power over Ethernet (PoE) is a technology that allows both data and electrical power to be transmitted over an Ethernet cable, typically using a single network cable. It is commonly used in networking and security camera systems. However, it is not typically associated with Android TV boxes, as these devices are usually powered by a separate power adapter plugged into a wall outlet. Power over Ethernet is when you use one network cable — CAT5e, CAT6, or a higher grade — to deliver data signals and electric power to a device. Yes, you still need to run a wire — but only one in this case. Plus, network cables are much easier to install than electrical wires — you won’t need an electrician. PoE works with all network cables. Generally, a higher-quality cable (pure copper) is always better for PoE than a lower-quality one (copper-clad aluminum). As for network speed, PoE adheres to the general standards of network cables.
Power over Ethernet benefits
– Ease of installation. There are no worries about hooking into electrical system outlets.
– Cost savings. Ethernet can carry both power and data signals.
– Safety. PoE automatically stops power current flows if there is a service interruption.
– Data speed. PoE can now deliver data at 1 gigabit per second (Gbps) — 10/100/1,000 megabits per second — using Cat5 and Cat6 cables. The IEEE 802.3bz PoE standard delivers speeds of 2.5 Gbps to 5 Gbps over 100 meters (m).
– Security. POE devices attached to networks with high-level security enjoy the same security protection as other network assets.
– Flexibility: You can run a network cable to any place, including tight corners. Without the need for an electrical outlet, the end device can stay anywhere, including in outdoor areas.
– Decluttering: PoE can significantly reduce the number of wires since you won’t need to use a power cord, making it an excellent choice for office devices, such as an IP phone.
About Rockchip RK3568
Rockchip RK3568 chip is a high-range general-purpose SoC, made in 22nm process technology, integrated 4-core ARM architecture A55 processor and Mali G52 2EE graphics processor, supporting 4K decoding and 1080P encoding. RK3568 supports various types of peripheral interfaces such as SATA/PCIE/USB3.0, it has a built-in independent NPU, and can be used for lightweight AI applications. RK3568 supports both Android 11 and Linux systems, and targets at industrial customization markets such as IoT gateways, NVR storage, industrial control panels, industrial equipment, industrial control boxes, karaoke, cloud terminals, and vehicle control center.
Highlight 1: New generation (3rd Gen) Rockchip ISP
up to 8M@30fps processing power, suppporting time-sharing and multiplexing dual camera
Powerful HDR function makes the image clear under backlight or strong light conditions
Support dual channel simultaneous zooming output
Noise cancellation function, so that the image under low light conditions is also delicate
Support defogging function, can see clearly even in haze
Support lateral correction of LDCH to remove the distortion caused by the sensor lens
Hightlight 2: Powerful multimedia decode / encode capability
Support 4KP60 H.264 / H.265 / VP9 and other formats HD decoding
Support simultaneous decoding of multiple video sources
Support HDR10, excellent performance in color and dynamic range
Support image post-processing, deinterleaving, denoising, color enhancement, resolution increase
Support 1080p 60fps H.264 and H.265 format encoding
Support dynamic bit rate, frame rate, resolution adjustment
Hightlight 3: Integrated efficient RKNN AI processing unit
NPU with 1TOPs computing power
Embedded neural network hardware accelerator, support INT8, INT16, FP16 efficient operation
NPU hardware natively supports technologies such as pre-processing merging, channel quantization, and zero skipping
Support lossless compression of INT8, INT16, FP16 neural network parameters
The NPU core supports ordinary convolution, depth separable convolution, deconvolution, hole convolution, fully connected layer and pooling layer
NPU internal blocks include multiply-add operations, activation, LUT and precision conversion units, and support custom layer construction
Support one-click model conversion, support Caffe/TensorFlow/TF-Lite/ONNX/PyTorch/Keras/Darknet mainstream framework models
Qintex QY8 TV Box Interface & ports
2 x Full size USB 3.0 port (OTG & Host)
2 x Full size USB 2.0 port
1 x TF Card / Micro SD card slot
1 x Recovery hole
1 x HDMI 2.1 Type-A Support maximum 4K@ 60fps 10Bit
1 x SPDIF Optical output
1 x AV port
1 x RJ45 1000M Ethernet with POE support
1 x IR port
1 x Led Work Light
1 x DC 5V Jack
2 x WiFi Antenna
Package content
1 x Qintex QY8 Rockchip RK3568 Android 11 TV Box
2 x External WiFi Antenna
1 x HDMI Cable
1 x Power Adapter model SYT0525 5V 2.5A
1 x IR Remote control
1 x English Quick Install Guide
About Qintex.QINTEX Tech Co.,Ltd was founded in 2015, Qintex is a high-tech enterprise of digital audio-visual, informationize, intelligentize and networking products research,development and sales in the integration.Qintex insist on independent innovation,in sync with the world science and technology development,it also pay more attention to optimize and combine related technical, to translate it into social product meet the market demand,with “creating internationalization,professional classic high-tech brand” as a goal,committed to provide high-taste wisdom products and services for global customers. QINTEX products got domestic and foreign markets reputation and popularity of its quality and reputation.Products selling network covered all over the world, and established a perfect after-sale service system, large quantities export to Europe, Middle East, America, Asia, Africa and other regions, Qintex always keen insight into the international market, to ensure new products constantly, lead the market trend. QINTEX carry out “brand strategy” based on high technology ,excellent quality and perfect service,use high-quality products, excellent service and superior cost performance products to meet customers request, serve the society. Qintex keep open cooperation spirit on the independent development of the core technology, work hard to create perfect digital state in the field of intelligent life and information industry area.
