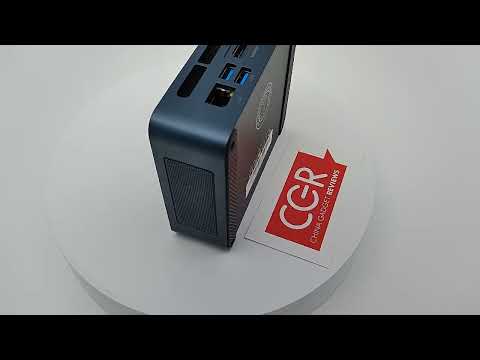

Unboxing Trigkey Speed S3 Ryzen 5 3550H 16GB RAM 500 GB ROM Mini PC

Best Deal Alert! You can now buy Trigkey Speed S3 Ryzen 7 3750H Mini PC from . for a very good price. Hurry up, limited time offer!

Meet Trigkey Speed S3
Would you like to get a great compact Mini PC, which, due to its size, will significantly save space on the desktop, and it also has very good features? Trigkey took care of this request by launching a new model called Speed S3 Mini PC. This small computer has a powerful AMD Ryzen 5 3550H processor, 16GB LPDDR4 RAM and a SSD installed with 500GB storage and a metal case. The Trigkey Speed S3 has a design that reminds us of the Intel NUC models. On the front we have BIOS CLR CMOS reset button inside a hole, two USB 3.0 ports, an USB Type-C port, 3.5mm audio jack output and Power On / Off button with status LED light. In the back we have the other connectors: LAN Gigabit RJ-45 Ethernet port, another two USB 3.0 ports, two HDMI ports & DC in port. In the lower area we find two rubber strips with four fixing screws of the lid. This mini PC has the option to hang it on a VESA support included and we also have two HDMI cables, one short and one long.

The accessories on the Speed S3 Mini PC come standard with two HDMI data cables, which can be used in two environments: one is to use the device on the desktop, and the HDMI cable is 80mm. The second is to install the device to the back of the monitor through the bracket, then use the 30mm data cable. This ergonomic design also reflects Trigkey mini PC’s customer-centric philosophy.

This minicomputer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBOmax, Disney+, Youtube 4K – everything works just fine, Speed S3 Mini PC giving you the ultimate in streaming performance. The smaller size expands the scope of application, and the design is still suitable for the office. Two monitors can be connected at the same time. The built-in silent fan and the metal case are helpful for heat dissipation.

The systems is based on the AMD Ryzen processor and may be tuned to deliver superior performance. The AMD Ryzen family of procesors offer an exciting amount of performance tuning options, including potential overclocking headroom. AMD Ryzen Master gives users advance, real-time control of system performance.

Using Radeon Vega 8 Graphics card, frequency is 1200 MHz, supporting 4K video decoding output, you can watch 4K resolution streaming media video, get high-quality viewing effects. Built-in 2.4G and 5.8G dual-band WiFi and Bluetooth 4.0, connect the network and other devices wirelessly, avoiding complicated cables. Using a metalic case and a silent cooling fan, the active cooling method can ensure that the machine will not overheat. The product has multiple ports that can be used. Equipped with USB 3.0*4, you can connect with different USB peripherals. Dual HDMI video ports connect two monitors to display at the same time. Ther 3.5mm audio port can be connected to your headphones or speaker devices, and immerse yourself in the world of watching videos. Speed S3 is very small in size, only 126*113*40mm, and it can be held in one hand. The metalic shell is great, so that you can put it in a travel bag and take it with you on trips. Furthermore, you can use a mounting bracket to attach it to the back of your monitor.

With nearly best large fan and dual heat dissipation pipe compared with similar products, Speed S3 can always operate like a efficient powerhouse with stable and low temperature. Actually, this will greatly improve the life span and running fluency of the machine definitely. Plastic & metal material shell helps dissipate heat effectively, which is great for energy-saving and better performance. The design of fan and heat dissipation holes can dissipate heat quickly when you play game, which will protect the mini PC.

Speed S3 is in such a small size like a water drop, but designed to be elegant, light and portable. You can easily put it into your briefcase as you want. However, little body, but with speed and power beyond anything you ever imagine, with hope from the designer to create more glory for customers. Helps you relax in gentle love story movie or keep your mind clear in gunfight movie by the unbelievable high definition video and vivid voice.

The stable working system and low power consumption of this machine will deliver your bright ideas by strongly eye attracting photos and clear writing of words within whole day.

Trigkey Speed S3 Features
– First-rate Performance. The Speed S3 Mini PC comes with an AMD Ryzen 5 3550H processor. The faster performance can handle heavy computing tasks smoothly and better for multitasking. Great ideal for avid PC enthusiasts, experience top-level performance with content creation, YouTube video viewing etc. The Ryzen 5 3550H usually has a 35W TDP, with 4 cores and 8 threads that have a max turbo frequency of 3.7GHz.
– Radeon Vega 8 Graphics & Support 4K. Speed S3 Mini PC is equipped with Radeon Vega 8 Graphics, supports 4K@60Hz video playback, high-definition visual experience, bringing you different visual enjoyment. It has excellent power efficiency and high clock speed, which supports ultra-realistic 4K visuals, you can enjoy vivid details and real colors.
– Large capacity. Installed dual channel Crucial DDR4 16 GB RAM (2 x 8 GB) and can be upgraded to 64 GB. Beside, installed Kingston 500 GB M.2 PCIe NVMe SSD and can expand the storage via a 2.5 inch SATA HDD slot for your personal needs.
– Dual Video output. Dual 4K display output @ 60Hz via HDMI, which allows you to multitasking effortlessly. Stream 4K videos, edit media, work from home or do your homework. The comfortable handling of multitasking allows for more efficient and comfortable productivity.
– Wall Mount Bracket is included. The standard wall mounting bracket is included in the package, it can be easily mounted on the back of a VESA-enabled TV or monitor by the included VESA mount. In this case, it realizes a space-saving and neat workspace without occupying space.
– Small and powerful. Making the gigantic desktop power in a tiny package, this Speed S3 Mini PC full of all traditional desktop’s features, which offers enterprise-class management and security that is suitable for multiple applications. Easy to set up and configure. Saves desk space and consumes less energy than equivalent alternatives. It widely used for light games, image editing, office applications, media centers, mini servers and much more.
– Quiet and Fast heat dissipation. Speed S3 Mini PC equipped with a low noise fan and good cooling system, large fan, and dual heat conduction tube, make heat dissipation more efficient.
– Latest version of the Operating System. Trigkey Speed S3 Mini PC comes with Windows 11 Pro pre-installed.

Trigkey Speed S3 BIOS
The American Megatrends BIOS of Speed S3 Mini PC is very rich in features and options, with many items enabled. There are 6 tabs in settings, with douzins of options each: Main, Advanced, Chipset, Security, Boot, Save & Exit.

I have made a BIOS back-up, you can download it from . I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.

BIOS details
Archive name: Trigkey Speed S3 BIOS Back-up file
Archive size: 6.72 MB
Archive content: BIOS back-up file & AfuWin64
Bios file: S3.rom
BIOS Vendor: American Megatrends
Core version: 05.14
BIOS Version: FP55A304
Date: 3/22/2022
SMBIOS Version: 3.2
Secure Boot: Off
Version: 2.20.1273
BIOS Chip Name: MXIC 25L/U Series

Trigkey Speed S3 Drivers
Trigkey Speed S3 Mini PC came with Windows 11 Pro 21H2 64-bit edition version Build 22000.282. This version was activated and everything was just ok. All the drivers were correctly installed and I could easily updated it to the latest Build 22000.918.

Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Print queues, Processors, SD host adapters, Security devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.

I extracted with DoubleDriver the drivers for Windows 11 Pro 21H2 64-bit edition version Build 22000.918, you can download the archive from . Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.

About System
Device name: S3
Processor: AMD Ryzen 5 3550H
Graphics: Radeon Vega Mobile Gfx 2.10 GHz
Audio: AMD High Definition Audio, AMD Streaming Audio Device
Bluetooth: Intel® Wireless Bluetooth®
Installed RAM: 16.00 GB (14 GB usable)
Storage: 500GB SSD
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 11 Pro
Version: 21H2
Installed on: 9/10/2022
OS build: 22000.918

Trigkey Speed S3 Ports
1 x Power On / Off button
4 x USB 3.0 Port
1 x Type-C USB  Port (Data)
1 x Headphone jack 3.5mm (HP & Mic)
1 x DC in port (19V)
2 x HDMI 2.1 connector
1 x RJ45 Gigabit Ethernet LAN port (1000 Mbps)
1 x CLR CMOS
1 x SATA HDD 2.5 inch slot (internal)
1 x M.2 2280 slot (internal)
1 x LED light

Trigkey Speed S3 Specifications
Brand: Trigkey
Model: Speed S3
Type: Mini PC
System: Windows 11 Pro 64-bit
CPU: AMD Ryzen 5 3550H, 4 Cores/8 Threads (Total L2 Cache 2MB , Total L3 Cache 4MB , Base Clock 2.1 GHz , Up to 3.7GHz)
Instruction Set: 64bit
Lithography: 12nm
Graphics: Radeon™ Vega 8 Graphics 1200 MHz
RAM: 16GB DDR4 ,Up to 32GB(Option)
ROM: 1x Kingston 500 GB M.2 PCIe NVMe SSD
Storage Expansion: 1 x 2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
WIFI: IEEE 802.11ac Dual Band WiF
Bluetooth: v4.0
LAN: RJ45 Gigabit Ethernet Port 1000M
RAM: Crucial 16GB DDR4 (2 x 8 GB)
Power Supply: Charge Adapter
Power Adapter Input: 100-240V / 50-60Hz
Power: DC 19V
Features: RTC wake up / Wake on Lan / Power on auto power on (BIOS setting) / Network boot
Audio Output: HDMI, 3.5mm Audio Jack
Color: Black

Package content
1 x Trigkey Speed S3 Mini PC
1 x Power Adapter model TDX-1903000E
1 x Short HDMI Cable
1 x Long HDMI Cable
1 x Wall-Mounted Bracket
1 x Multi-language User manual (EN / DE / ES / IT / FR / RU / JP)
10 x Screw

Photo gallery full album here. Official website . More about Trigkey devices here.



About Trigkey. Trigkey is a Chinese manufacturer of mini PC and hardwares. We headquartered in Shenzhen, Guangdong province, China. Founded in 2021, we entered the consumer electronics industry with mini PC. Trigkey is dedicated to improving the office scene with mini desktop to save office space. We extended our reach to international market, predominantly in United States.The 1st product we release is Green G1, which is perfect for office.. Trigkey store supports free shipping worldwide, no matter which country you are in, we will try our best to deliver the products to you.
