Unboxing Beelink SEi10 Intel i3-10110U Mini Computer

Posted in Mar 1, 2021 in Unboxing, no comment

Best Deal Alert! You can now buy Beelink SEi10 Intel i3-10110U Mini Computer from Amazon.com, Amazon.ca, Amazon.es, Amazon.de, Amazon.co.uk, Amazon.it, Amazon.fr or from  Banggood.com.


Meet Beelink SEi10 Mini PC

Would you like to get a great compact mini-PC, which, due to its size, will significantly save space on the desktop, and it also has very good features? Beelink took care of this request by launching a new model called SEi10 Mini PC. This small computer has a powerful Intel 10th Gen Dual-Core i3-10110U, 8GB LPDDR4 RAM and a NVME SSD installed with 256GB of storage.The Beelink SEi10 Mini PC has a design that reminds us of the Intel NUC models, in the bright top we have the brand logo. On the front we have BIOS CMOS reset button inside a hole, two USB 3.0 ports, one USB 3.1 Type-C port for data, 3.5mm audio jack output and Power On / Off button with status LED light. On the left side we find microSD reader and in the back we have the other connectors: LAN Gigabit RJ-45 Ethernet port, another two USB 3.0 ports, two HDMI ports (4k60), DC in port. In the lower area we find four rubber feet with the fixing screws of the lid. This mini PC has the option to hang it on a VESA support included and we also have two HDMI cables, one short and one long. BTW, in our tests, the Wifi 6 speed in download was about 715 Mbps and in upload was about 656 Mbps, which is jnust amazing.

Inside this mini PC we find the latest generation Wifi 6 + BT 5.1 adapter (Intel AX200D2WL) with two internal antennas. When we open it, we find the M.2 2280 NVMe disk mounted, next to it we have two SODIMM slots and the connector for the SATA 3 disk to house a 2.5 ″ disk inside with the included brackets. Port options are plentiful, but the highlight is Thunderbolt 3 compatibility. The two HDMI output 4K image resolution, supports simultaneous display of different task modes. So that we can work and deal with other tasks at the same time. Four USB 3.0 interfaces can basically meet the needs of customers.

The accessories on the SEi10 come standard with two HDMI data cables, which can be used in two environments: one is to use the device on the desktop, and the HDMI cable is 80mm. The second is to install the device to the back of the monitor through the bracket, then use the 30mm data cable. This ergonomic design also reflects Beelink mini PC’s customer-centric philosophy.

This minicomputer’s compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience. Netflix, HBO Go, Youtube 4K – everything works just fine, SEi10 giving you the ultimate in streaming performance.


Beelink SEi10 Mini PC BIOS

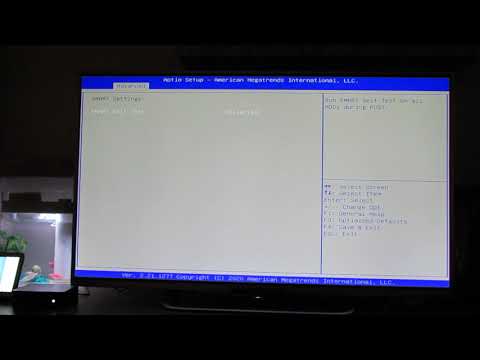

The American Megatrends BIOS of Beelink SEi10 Mini PC is very rich in features and options, with many items enabled. There are 5 tabs in settings, with douzins of options each: Main, Advanced, Security, Boot, Save & Exit.

I have made a BIOS back-up of Beelink SEi10 Mini PC, you can download it from here or here. I advise everyone to make a copy of a working BIOS, if possible, before doing BIOS experiments. To do that you can simple use the provided Aptio AfuWin64 software. If you disabled USB in the BIOS, or if you did another mess in device BIOS, only overwriting NVRAM can reset BIOS settings. In this way, there is no need to open the case, to teardown the device to be able to reset the CMOS. All the actions are made from Windows environment, so your Mini PC has to be able to boot into Windows. All the following actions that are you will do next are entirely at your own risk.


BIOS details

Archive name: SEi10 BIOS Backup
Archive size: 7.29 MB
Archive content: BIOS back-up file & AfuWin64
Bios file: SEi10 BIOS Backup.rom
BIOS Vendor: American Megatrends
Core version: 05.17
BIOS version: CB1D_MV10 105 X64
Version: 2.21.1277
Firmware ID: CB1D_MV10


Beelink SEi10 Mini PC Drivers

Beelink SEi10 Mini PC came with Windows 10 Pro 64-bit edition version. This version is activated and everything is just ok. All the drivers are correctly installed and untill now everything runs just great. The Windows version was 2004 Build 19041.685 but I easily updated to version 20H2 Build 19042.804.

Installed drivers for: Audio inputs and outputs, Bluetooth, Computer, Disk drives, Display adapters, Firmware, Human Interface Devices, IDE ATA/ATAPI controllers, Keyboards, Mice and other pointing devices, Monitors, Network adapters, Print queues, Processors, SD host adapters, Security devices, Sound, video and game controllers, Storage controllers, System devices and Universal Serial Bus controllers.

I extracted with DoubleDriver the drivers for Windows 10 version 20H2, you can download the archive from here or here. Use the provided Double Driver application (as Admin) to simply restore the missing drivers from your collection, just locate the extracted folder.


About System

Device name: Sei
Processor: Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.11 GHz
Graphics: Intel® UHD Graphics
Audio: Intel® Smart Sound Technology (Intel® SST)
Realtek High Definition Audio(SST)
Intel® Display Audio
Networking: Intel® Wi-Fi 6 AX201 160MHz
Realtek PCIe GbE Family Controller #2
Installed RAM: 8.00 GB (7.88 GB usable)
Storage: SSD 256GB
System type: 64-bit operating system, x64-based processor
Pen and touch: No pen or touch input is available for this display
Edition: Windows 10 Pro
Version: 20H2
Installed on: ‎2/‎24/‎2021
OS build: 19042.844
Experience: Windows Feature Experience Pack 120.2212.551.0

Beelink SEi10 Mini PC
Features
– 10th Generation Intel I3-10110U. Beelink SEI10 Mini PC Equipped with 10th Generation Intel Coffee I3-10110U Processor (2.1GHz, up to 4.10 GHz,2 Cores 4 Threads,Supports 4M Intel Smart Cache) 10nm lithography technology. 25W High-performance version,a fast, smooth and power-saving mini PC, It can satisfy your diverse scenarios’ use such as entertainment, Games, office, etc.
– Intel UHD Graphics & Support 4K Dual Screen HD Display. The mini desktop computer SEI10 Supports 4K HD (4096×2304) ultra-high-definition content, 4K@60hz videos play back from Youtube Netflix are always smooth and work well.you can enjoy 4K Web surfing, video playback, watching TV, home theater, and enjoy the entertainment with your family. Dual HDMI Ports and Type-C interface.easily connecting 3 monitors, reduce waiting time, efficiency doubled Work.
– Powerful Storage & Faster Running Speed. 8GB SO-DIMM DDR4 2400MHz Memory (can Upgrade to 64GB),256GB M.2 NVME SSD (2 accessible M.2 slots,M.2 NVME SSD/M.2 SATA3 SSD and 1 accessible SATA3 HDD 2.5in slots and 1 accessible TF card reader slots). It could deal with multiple task and windows easily at the same time,smoothly run your games, photos and video-editing applications.
– More Ports & Efficient heat dissipation. Mini Desktop PC Beelink SEI10 25W High-Performance version, including Gigabit Ethernet LAN (RJ-45 port)| WiFi 6 (802.11AX) and Bluetooth 5.0 combo (Supporting Gigabit file transfer speeds) USB 3.0*4,HDMI*2,Audio Jack (HP&MIC)*1,DC Jack*1,TF Cardreader Interface*1,Type-C*1,Efficient heat dissipation cool down the computer’s hardware, reduce hardware loss, and make the computer’s response speed faster. with strong heat dissipation capacity, almost no noise. The Wall-Mounted bracket can help you easily fix the mini computer to the back of the monitor and saving space.
– Operating System. The Beelink SEI10 Micro Desktop Computer is Pre-installed with Windows 10 Pro OS. The product obtained FCC, CE ROSH eertifications.

Beelink Beelink SEi10 PC Ports
1 x Power On / Off button
1 x CMOS reset button
1 x DC in port
4 x USB 3.0 port
1 x RJ45 1000M Gigabit LAN port
2 x HDMI 1.4 port
1 x Mic headphone Audio Jack
1 x USB 3.1 Type-C port / Thunderbolt 3 and DisplayPort
1 x Micro SD / TF card reader
1 x LED light
1 x SATA 2.5 (internal)
1 x SODIMM slot free (internal)
1 x VESA support


Beelink SEi10 Specs
CPU: 10th Generation Intel I3-10110U, 2.1GHz,Turbo 4.1Ghz (2C/4T) Supports 4MB Smart Cache
GPU: Intel Iris Plus Graphics 655
CPU Core / Threads Quantity: 4C/8T
Memory: 8GB SO-DIMM DDR4 2400MHz, Support Extension to 64GB
Storage: 256GB M.2 NVME SSD
Expand Storage: Expand Storage: M.2 NVME SSD/M.2 SATA3 SSD/SATA3 HDD 2.5in
WiFi: WiFi 6 (802.11ax)
Bluetooth: V5.0
LAN: 1000 Mbps Gigabit ethernet
System: Windows 10 Pro 64bit. Support ubuntu OS
Power Input: Input: 100-240V AC, 50/60Hz
Power Output: 19V / 3A
Cooling system: Silent Fans,Heat conduction tube
Package weight: 345g
Product Size (L x W x H): 4.88*4.45*1.6in
Package Size (L x W x H): 5.8*4.3*4.1in
Additional Features: WOL and Power on, set on BIOS
Other Function: 3-Screen Display (2 HDMI + 1 Type C), Same Screen Function, Double F6 Heat Pipe + Quiet Large Fan Cooling
Work/Storage Environment: -10°C–45°C,30%–85% Humidity/-20°C–60°C,10%–90% Humidity
Color: Black
OS version: Windows 10 Pro version 2004 Build 19041.685 easily updated to version 20H2 Build 19042.804


Package Content

1 x Beelink SEi10 Intel i3-10110U Mini PC
1 x Power Adapter model TDX-1903000E
1 x Wall mounted bracket
1 x Long HDMI cable (80 cm)
1 x Short HDMI cable (20 cm)
1 x Multi-language User Manual (Basic Operation & After Service – EN / DE / ES / IT / FR / RU / JP)
1 x Hard Disk Installation Guide (English)
1 x FPC Hard disk cable
1 x 2.5-inch SATA III adapter
10 x Screw

Unboxing Photo Album with Hi-Rez images here. Official webpage here. More about Beelink devices here. Here you can read about the unboxing of Beelink AP34 Pro Mini PC. Unboxing Beelink SII Intel Gemini Lake Celeron N4100 Mini PC here. Unboxing Beelink BT7 Intel Atom X7-Z8700 Mini PC here. Unboxing Beelink L55 8GB DDR3L 256GB SSD Mini PC here.


About Beelink. Beelink was established in 2014 in Shenzhen, China Futian, specializing in home entertainment equipment (DONGLE, BOX, remote control, game consoles, home cloud, one machine, MINI PC) product definition,development, production and sales. Our company own brand as “Beelink”. R & D The company has more than 20 front-line researchers, from the hardware circuitry, wiring, commissioning. into the upper layer driver and software application functionality implemented. BeeLink Brand philosophy: through management innovation, technological innovation and market innovation, and worldwide partners and customers to establish long-term stable cooperative relations, Andrews micro and you win the future.
